Side cover: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine under cover.
  2. Drain ATF. Refer to CHANGING A/T FLUID .
  3. Remove side cover bolts and side cover.

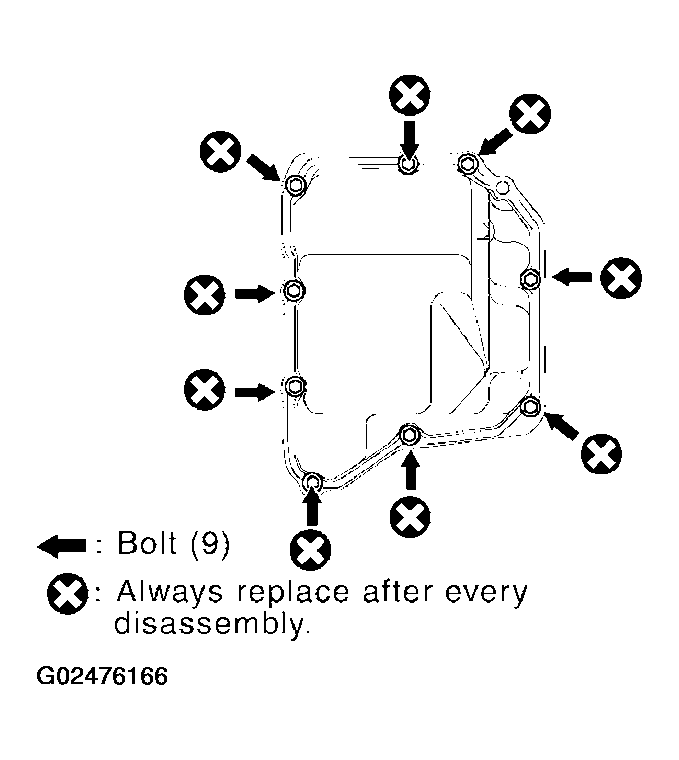

    Fig 1: Removing Side Cover Bolts & Side Cover
    G02476166Courtesy of NISSAN MOTOR CO., U.S.A.
