ATF Cooler: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain ATF.
  2. Drain engine coolant, refer to CHANGING ENGINE COOLANT .
  3. Remove hose clamps and hoses from ATF cooler.

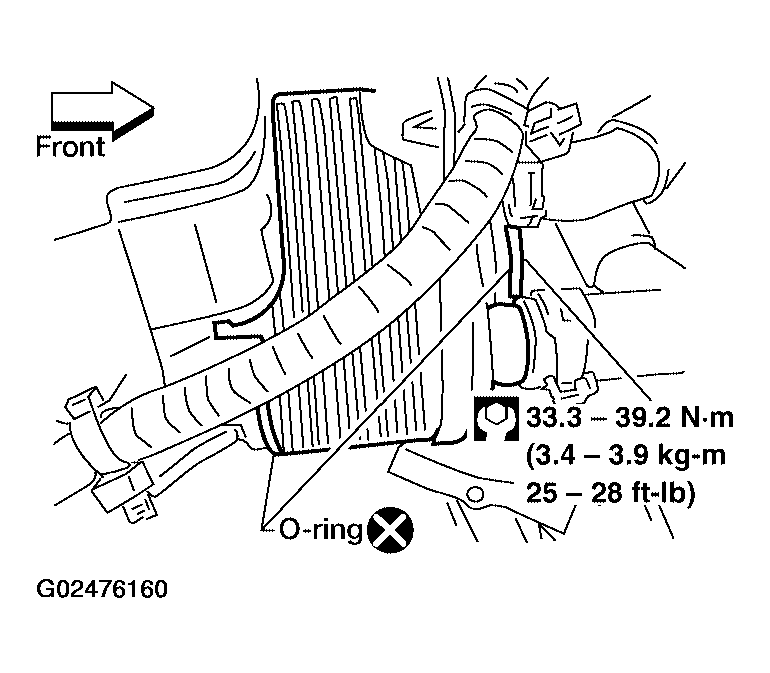

    Fig 1: Removing Hose Clamps & Hoses From ATF Cooler
    G02476160Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove bolt from ATF cooler and remove ATF cooler.
