Diagnostic Trouble Codes No. Index

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC U1000 is displayed with other DTCs, first perform the trouble diagnosis for DTC U1000. Refer to DTC U1000 CAN COMMUNICATION LINE .

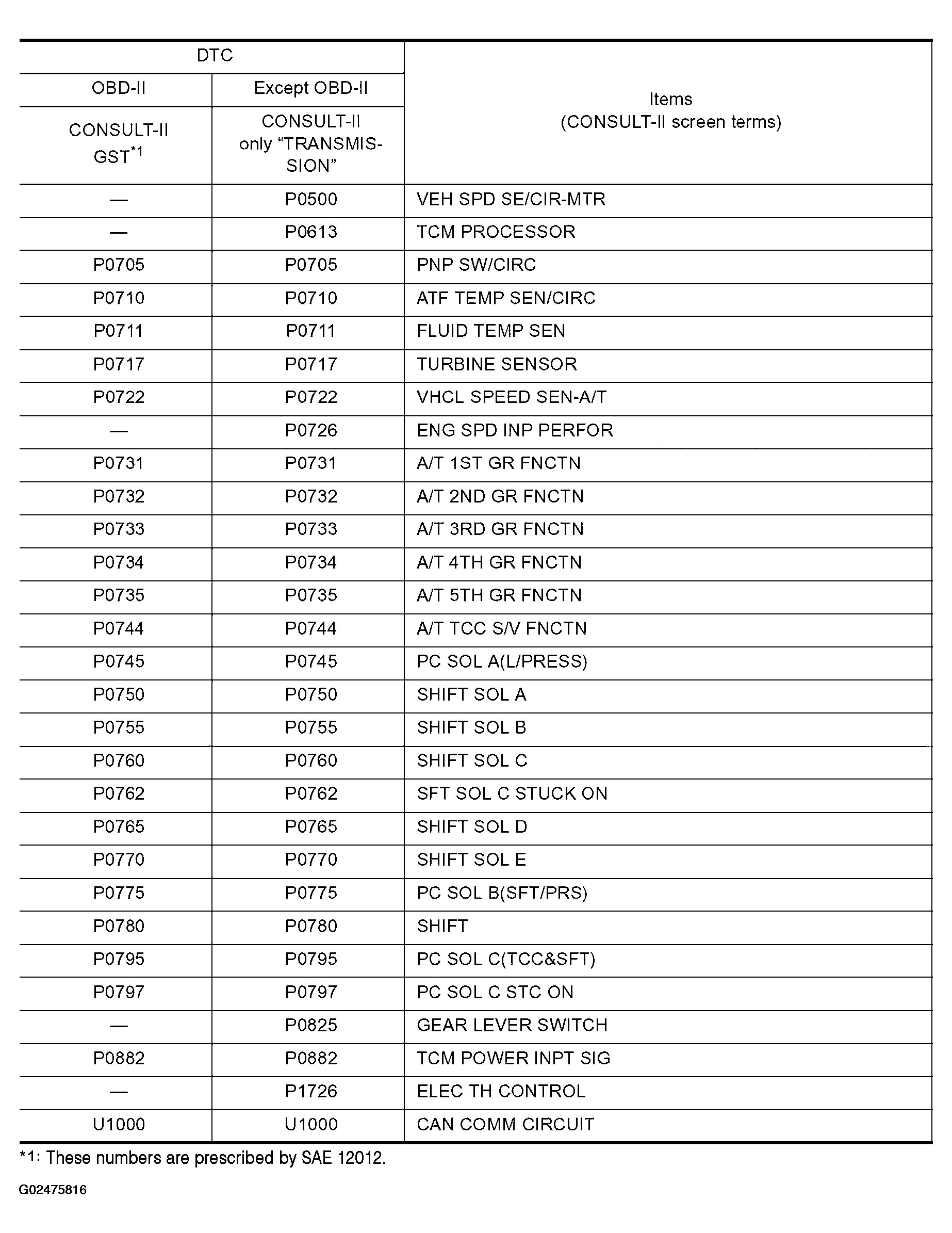

Fig 1: DTC Number Index

Courtesy of NISSAN MOTOR CO., U.S.A.
