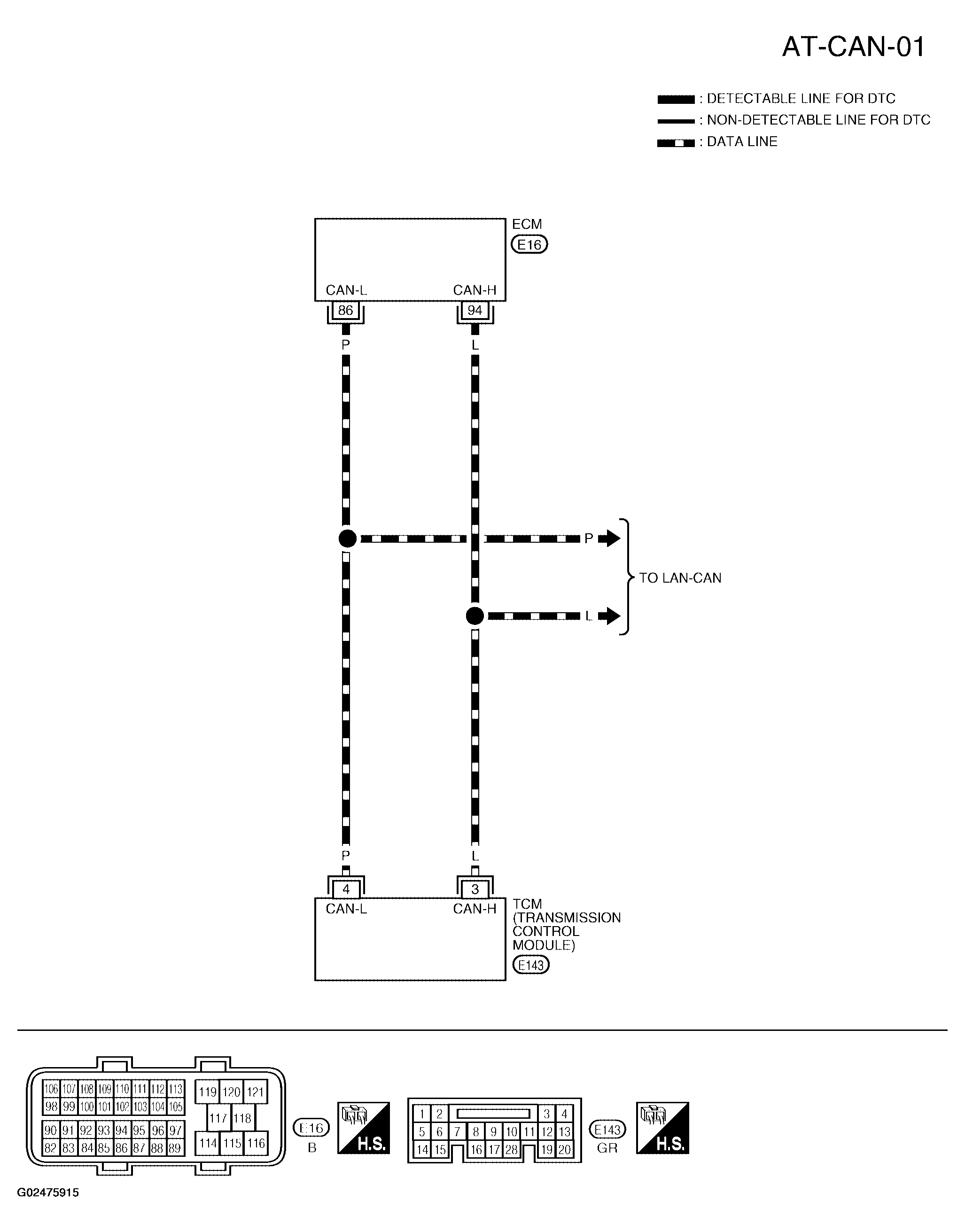

Wiring Diagram - AT - CAN
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
TCM terminals and data are reference value.
TCM TERMINALS AND DATA REFERENCE VALUE
| Terminal |
Wire color |
Item |
Condition |
Data (Approx.) |
| 3 |
L |
CAN H |
- |
- |
| 4 |
P |
CAN L |
- |
- |
