With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

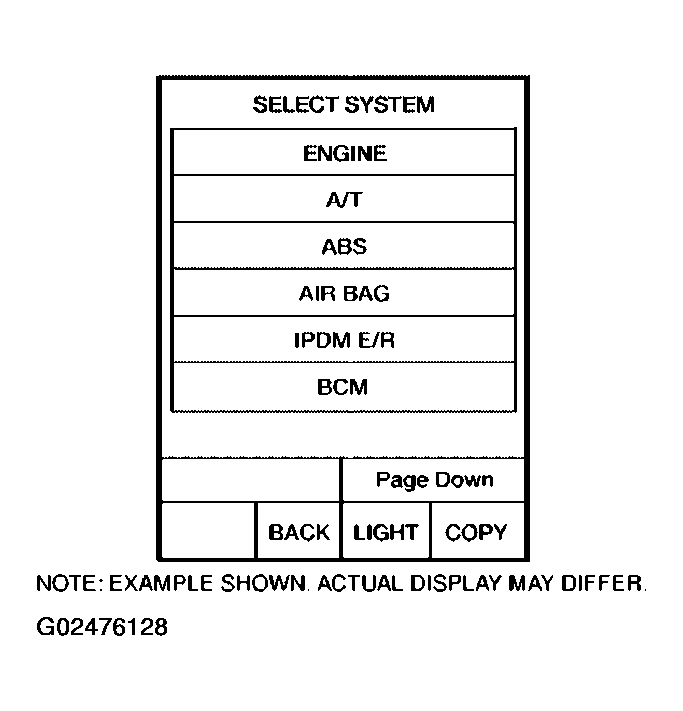

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G02476128Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine.
  4. Depress accelerator pedal or drive vehicle and maintain the following condition for at least 20 consecutive seconds.

    TURBINE REV: More than 800 RPM

  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .
