A/T PV IGN Relay

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Apply 12V direct current between A/T PV IGN relay terminals 1 and 2.

Check continuity between relay terminals 3 and 5.

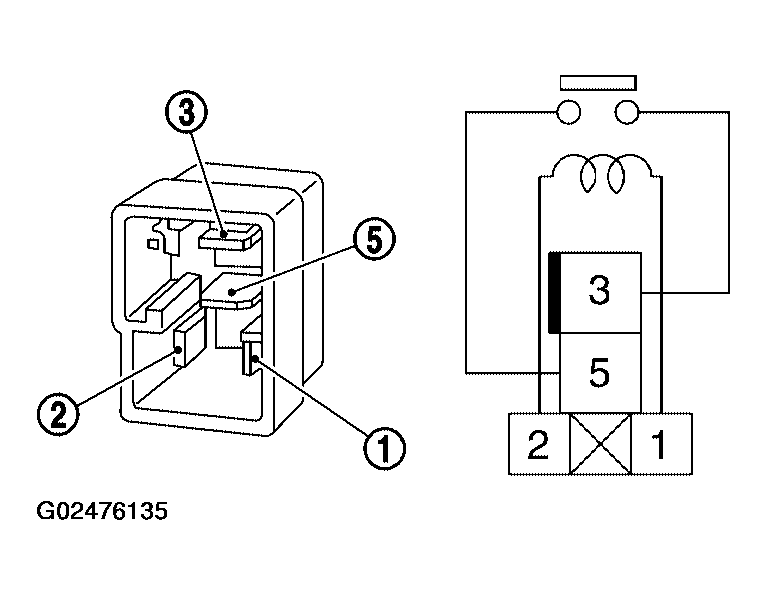

Fig 1: Checking Continuity Between A/T PV IGN Relay Terminals 3 & 5

Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINAL CONTINUITY - A/T PV IGN RELAY

Condition	Continuity
12V direct current supply between terminals 1 and 2	Yes
OFF	No

If NG, replace A/T PV IGN relay.
