Lever Switch
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

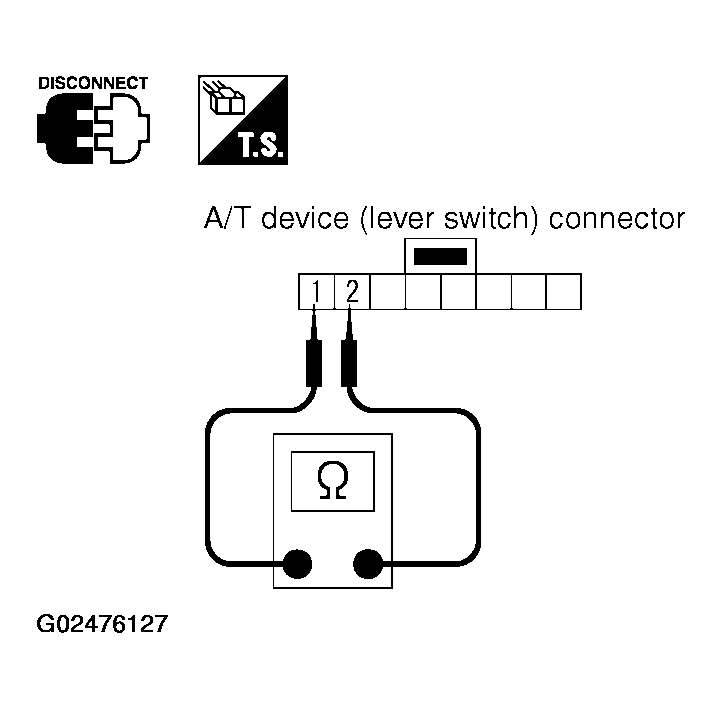

Check continuity between A/T device (lever switch) harness connector M34 terminals 1 and 2.
Courtesy of NISSAN MOTOR CO., U.S.A. TERMINALS CONTINUITY - A/T DEVICE HARNESS CONNECTOR M34 TERMINALS 1 & 2
| Switch position |
Continuity |
| ON |
Yes |
| OFF |
No |
