Wiring Diagram - AT - PC/CS

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

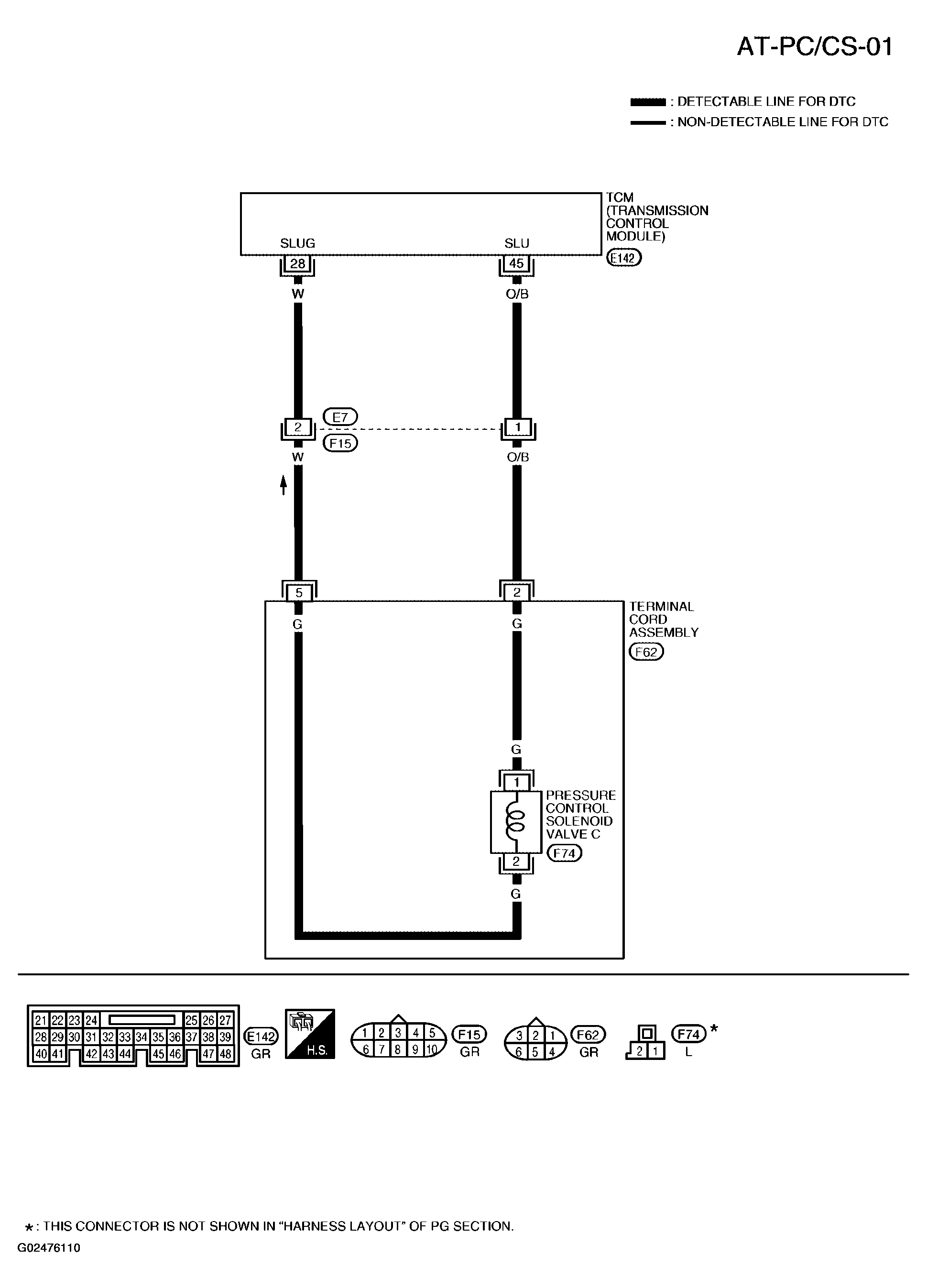

Fig 1: Wiring Diagram - Pressure Control Solenoid Valve C (AT-PC/CS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

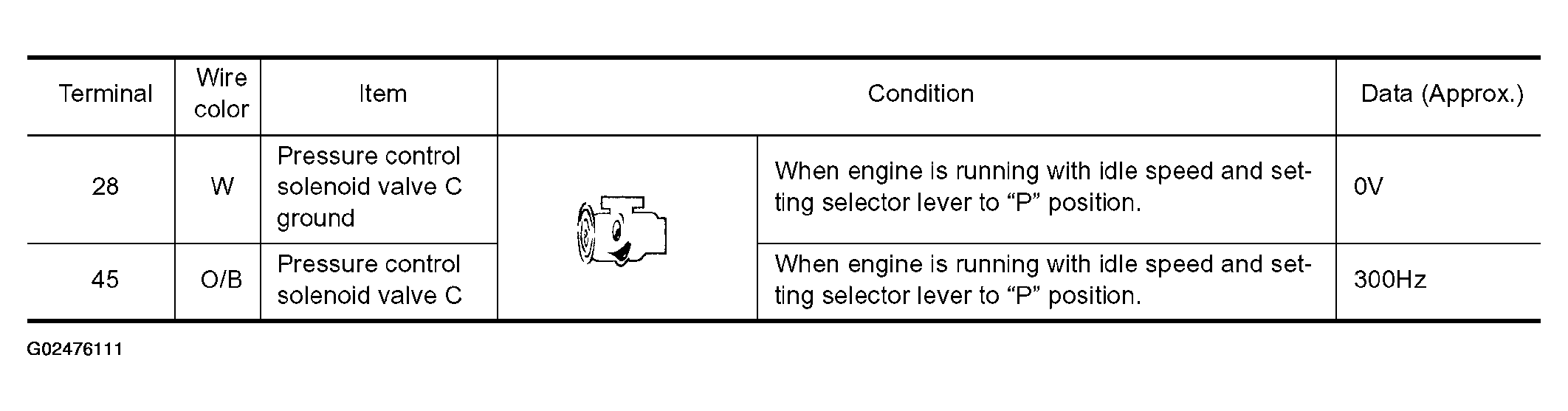

TCM terminal and data are reference value Measured between each terminal and ground.

Fig 2: TCM Terminal & Data Reference Value Chart - Pressure Control Solenoid Valve C

Courtesy of NISSAN MOTOR CO., U.S.A.
