With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

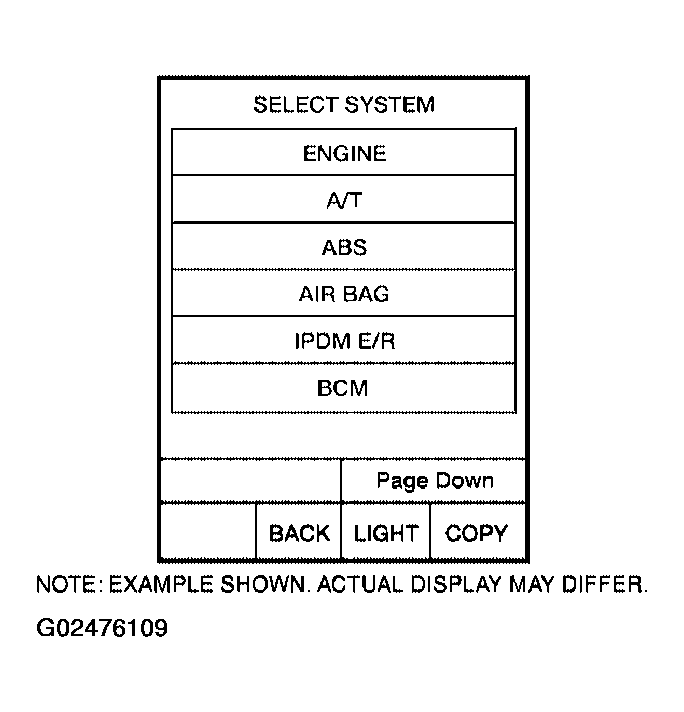

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G02476109Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine.
  4. Run engine for at least 4 consecutive minutes at idle speed.
  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .
