With Consult-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

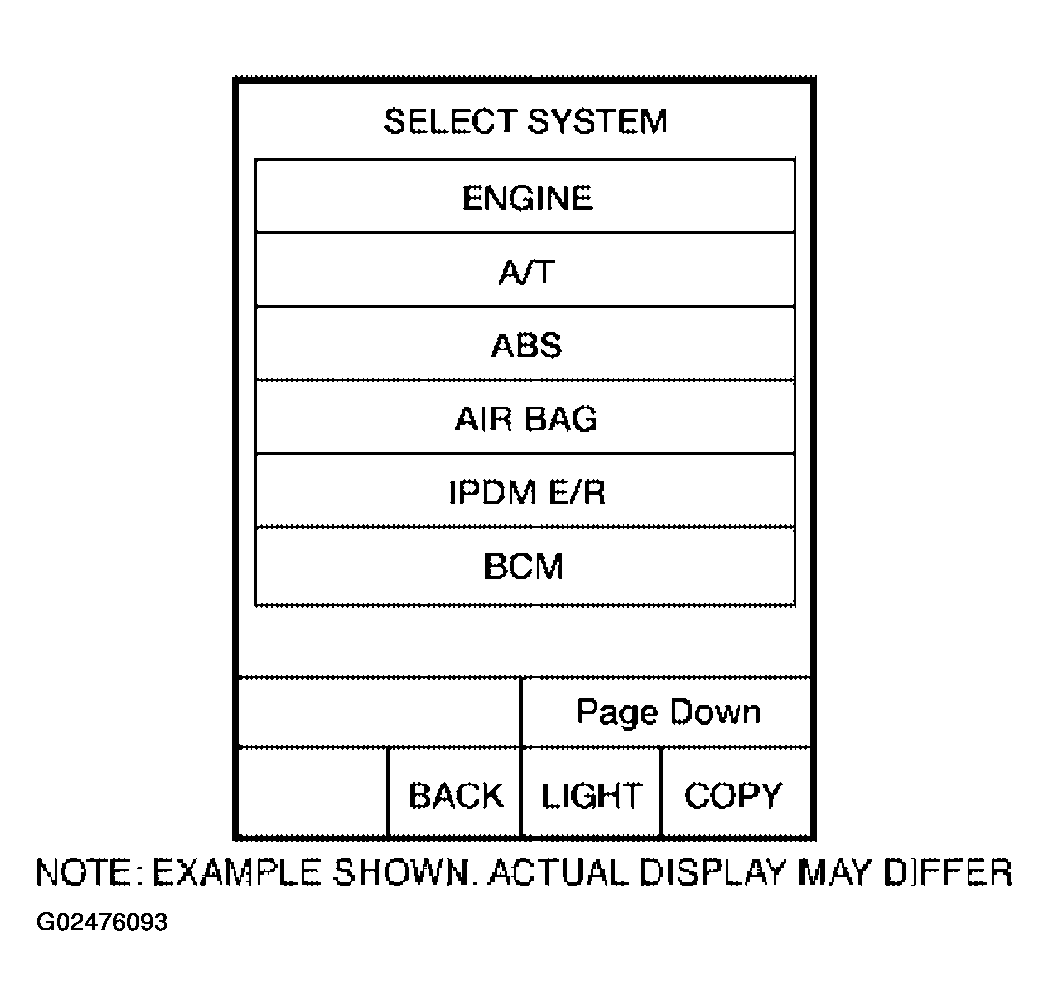

- Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
- Make sure that ATF temperature is within the range below.
FLUID TEMP: More than 60°C (140°F)
If out of range, drive the vehicle to warm up the fluid.
- Drive vehicle and allow the following conditions.
SLCT LVR POSI: "D" position
GEAR: 1st => 2nd => 3rd => 4th => 5th position
(Vehicle speed: Refer to VEHICLE SPEED WHEN SHIFTING GEARS .)
- If DTC is detected, go to DIAGNOSTIC PROCEDURE .
