Wiring Diagram - AT - PC/B

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

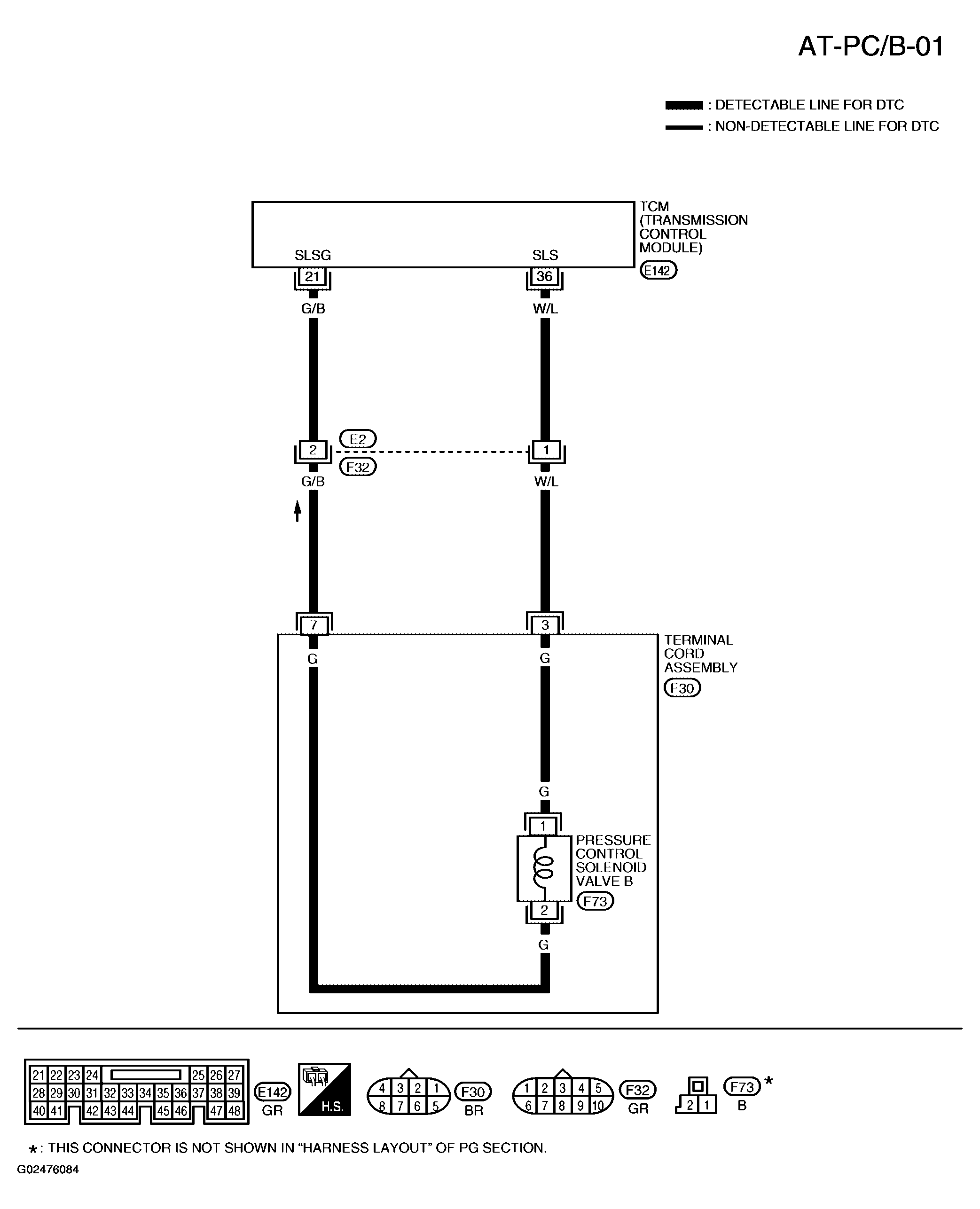

Fig 1: Wiring Diagram - Pressure Control Solenoid Valve B (AT-PC/B-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal and data are reference value. Measured between each terminal and ground.

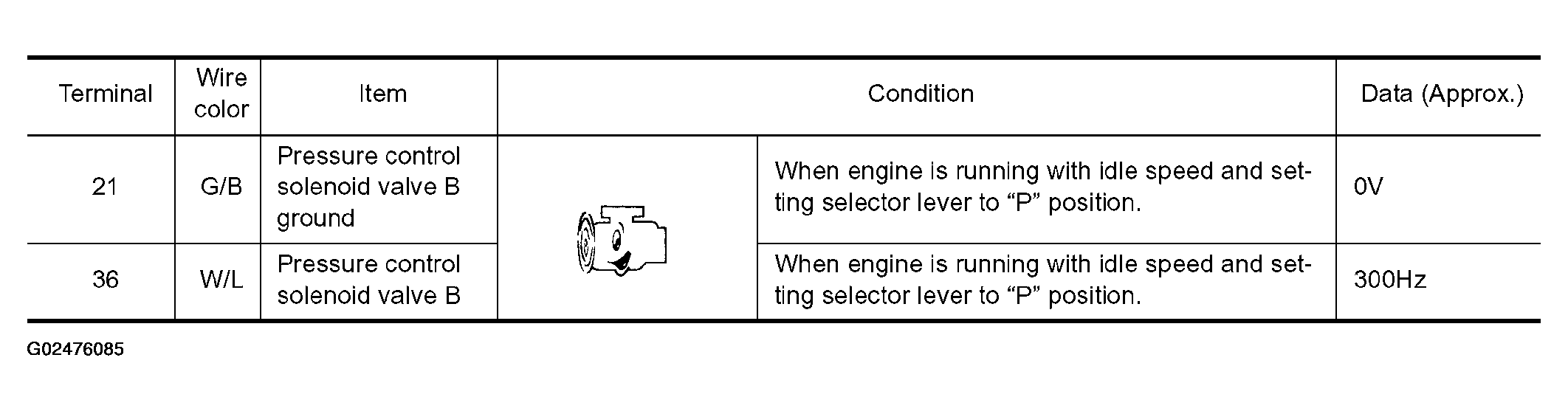

Fig 2: TCM Terminals & Data Reference Value Chart - Pressure Control Solenoid Valve B

Courtesy of NISSAN MOTOR CO., U.S.A.
