WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

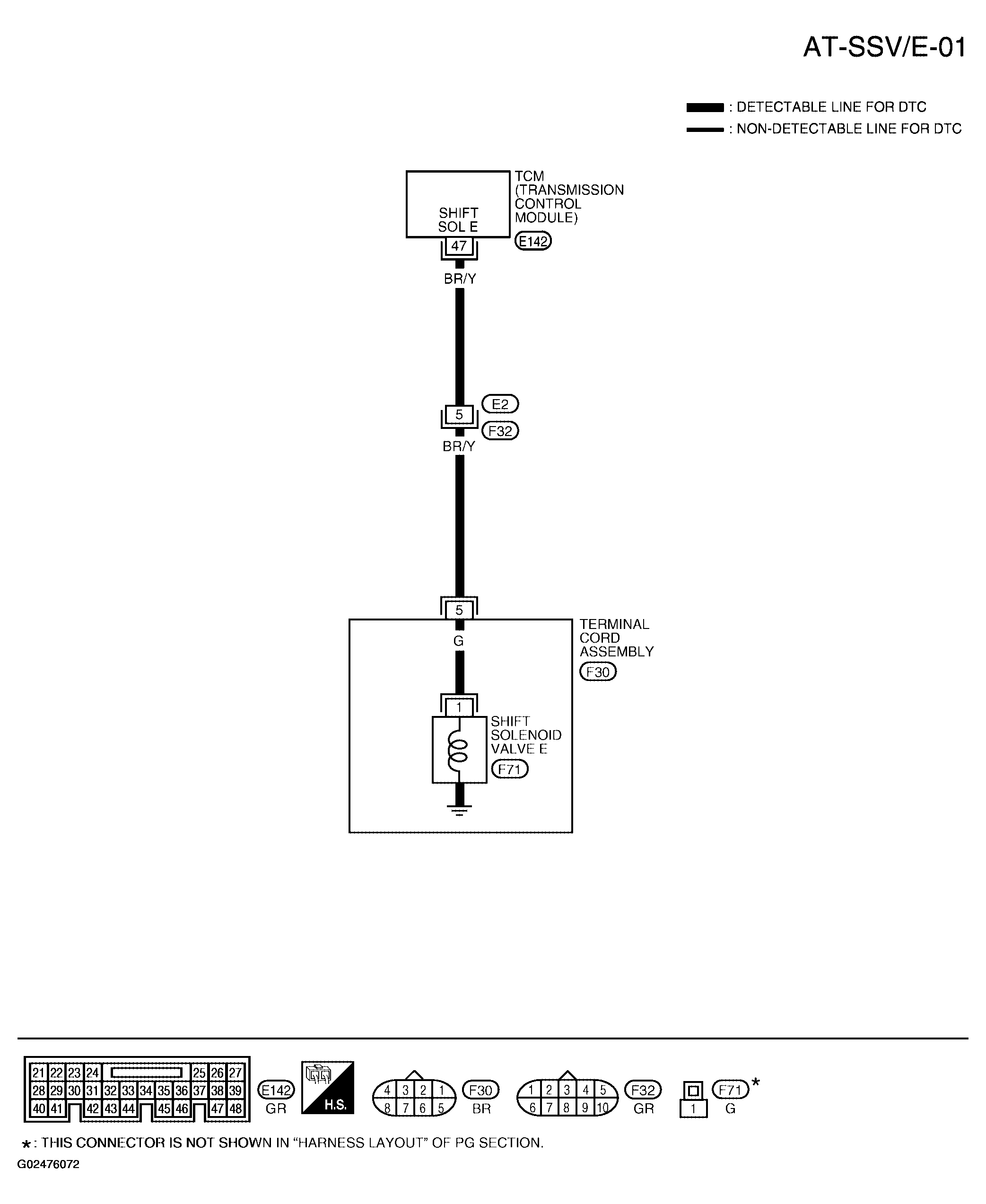

Fig 1: Wiring Diagram - Shift Solenoid Valve E (AT-SSV/E-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
TCM terminal and data are reference value. Measured between each terminal and ground.

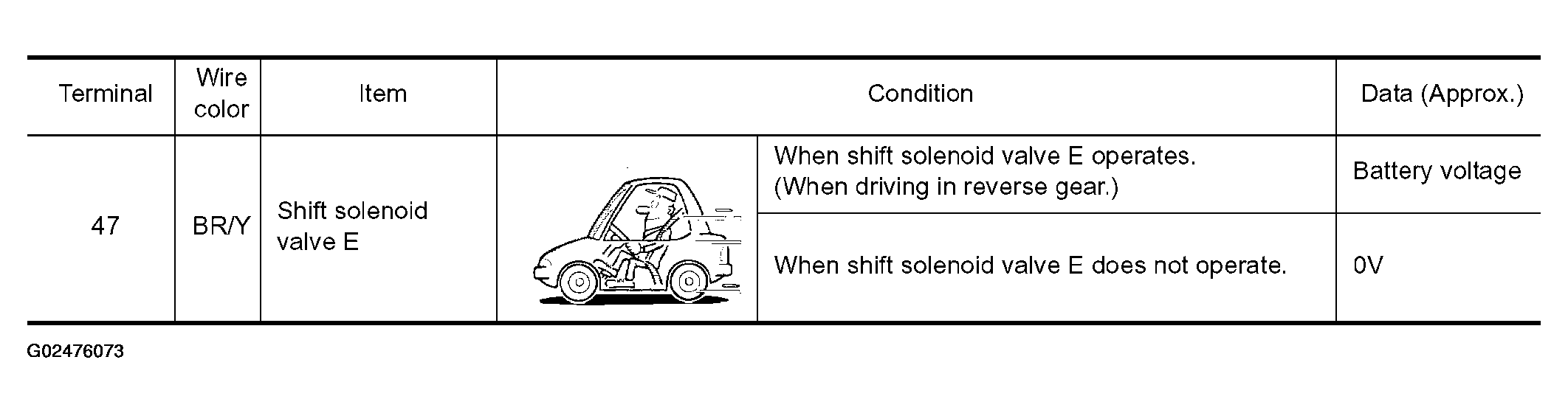

Fig 2: TCM Terminals & Data Reference Value Chart - Shift Solenoid Valve E
