Diagnostic Procedure

With CONSULT-II

1. Start engine.
2. Select "A/T" with "DATA MONITOR" mode in CONSULT-II.
3. Drive vehicle and read out the value of "SFT SOL E OUT" and "SFT SOL E MON".

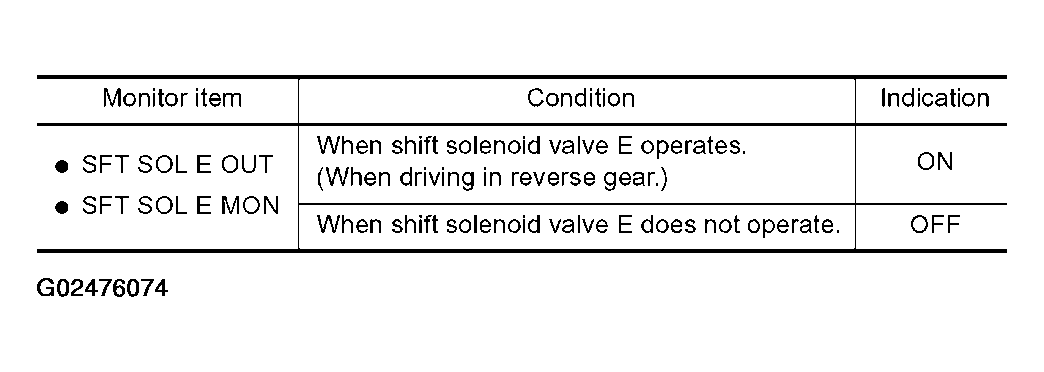

   Fig 1: CONSULT-II Display Condition Chart - Shift Solenoid Valve E

   Courtesy of NISSAN MOTOR CO., U.S.A.

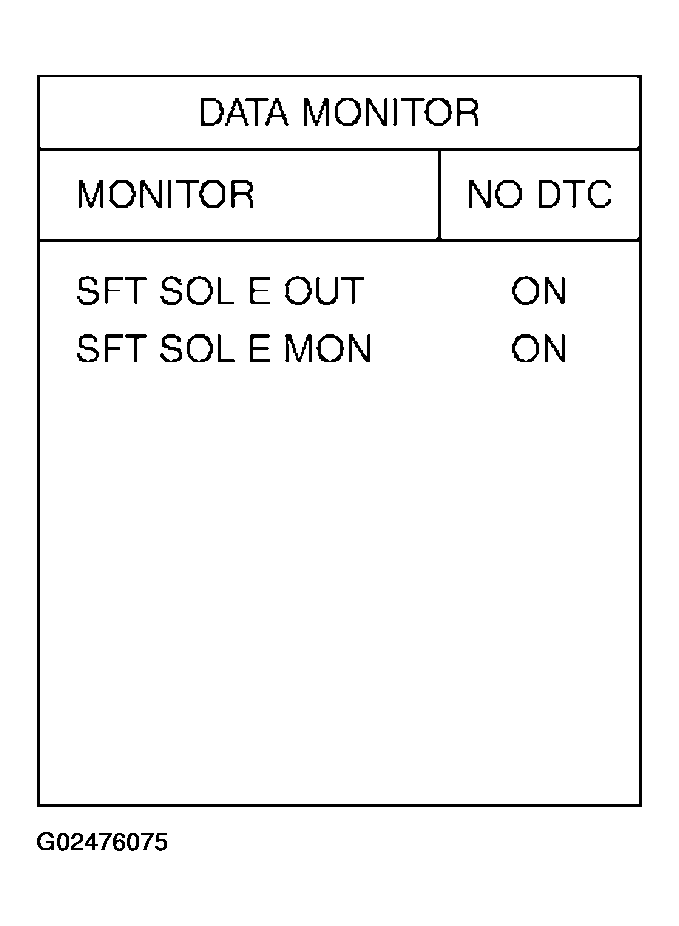

   Fig 2: CONSULT-II Display - DATA MONITOR

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Drive vehicle.
2. Check voltage between TCM connector terminal 47 and ground.

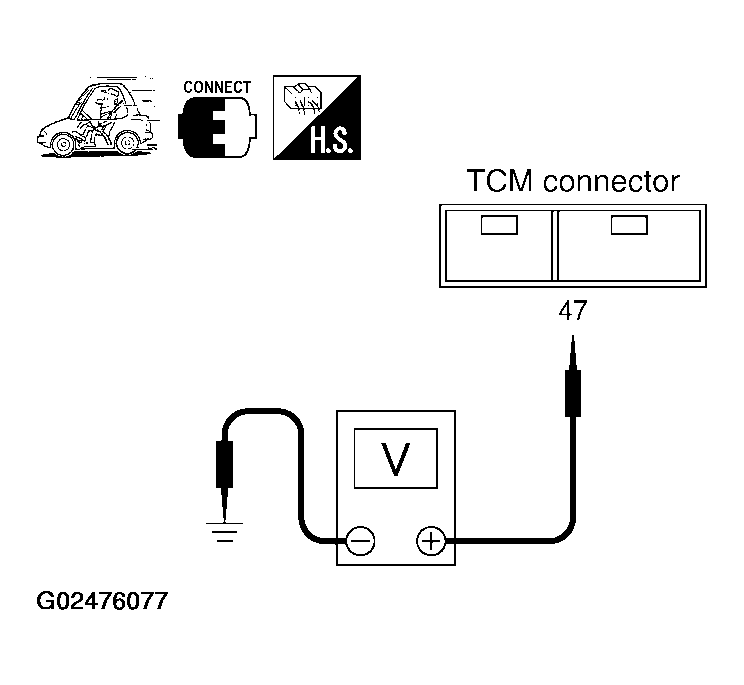

   Fig 3: Checking Voltage Between TCM Connector Terminal 47 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

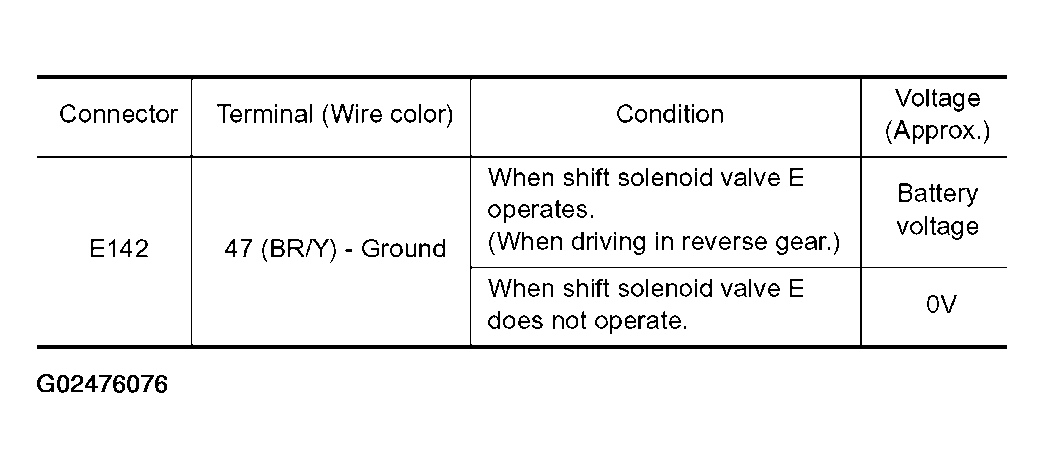

   Fig 4: TCM Connector Terminal 47 Voltage Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : GO TO  7.
• NG : GO TO 2.

1. Turn ignition switch "OFF".
2. Disconnect the TCM connector.
3. Check resistance between TCM connector terminal 47 and ground.

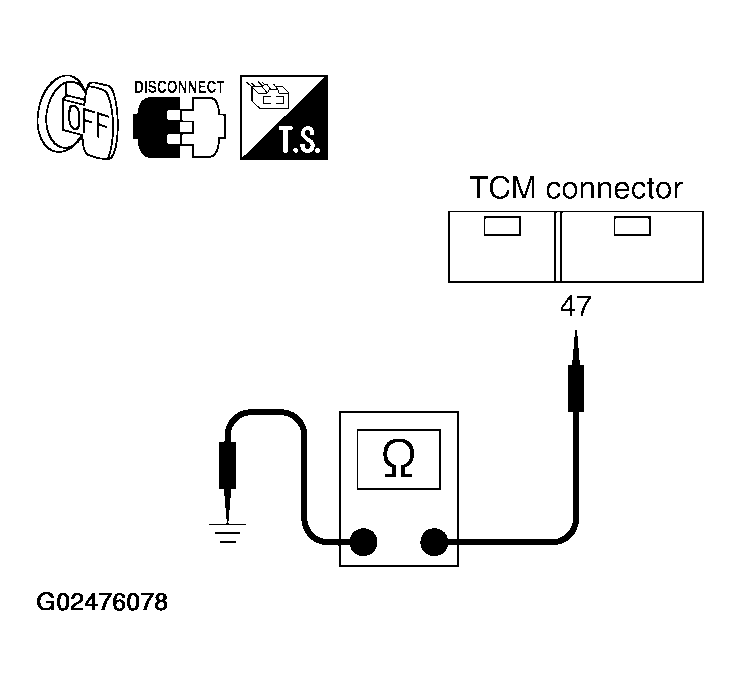

   Fig 5: Checking Resistance Between TCM Connector Terminal 47 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   RESISTANCE SPECIFICATIONS - TCM CONNECTOR TERMINAL 47



   Connector	Terminal (Wire color)	Condition	Resistance (Approx.)
   E142	47 (BR/Y) - Ground	Temperature: 20°C (68°F)	11 - 16Ω

OK or NG

• OK : GO TO  7.
• NG : GO TO 3.

1. Turn ignition switch "OFF".
2. Disconnect terminal cord assembly harness connector.
3. Check resistance between terminal 5 and ground.

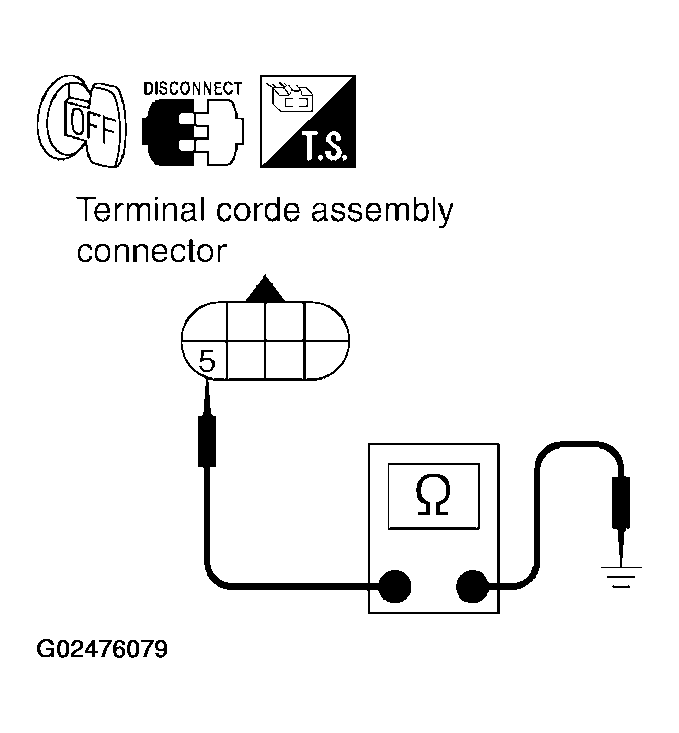

   Fig 6: Checking Resistance Between Terminal Cord Assembly With Shift Solenoid Valve E Terminal 5 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   RESISTANCE SPECIFICATIONS - TERMINAL CORD ASSEMBLY WITH SHIFT SOLENOID VALVE E TERMINAL 5



   Connector	Terminal	Condition	Resistance (Approx.)
   F30	5 - Ground	Temperature: 20°C (68°F)	11 - 16Ω

OK or NG

• OK : GO TO 4.
• NG : GO TO  5.

Check the following.

• Open or short-circuit in the harness between TCM and terminal cord assembly.

OK or NG

• OK : GO TO  7.
• NG : Repair or replace damaged parts.

1. Remove side cover. Refer to SIDE COVER .
2. Disconnect shift solenoid valve E harness connector.
3. Check resistance between terminal 1 and ground.

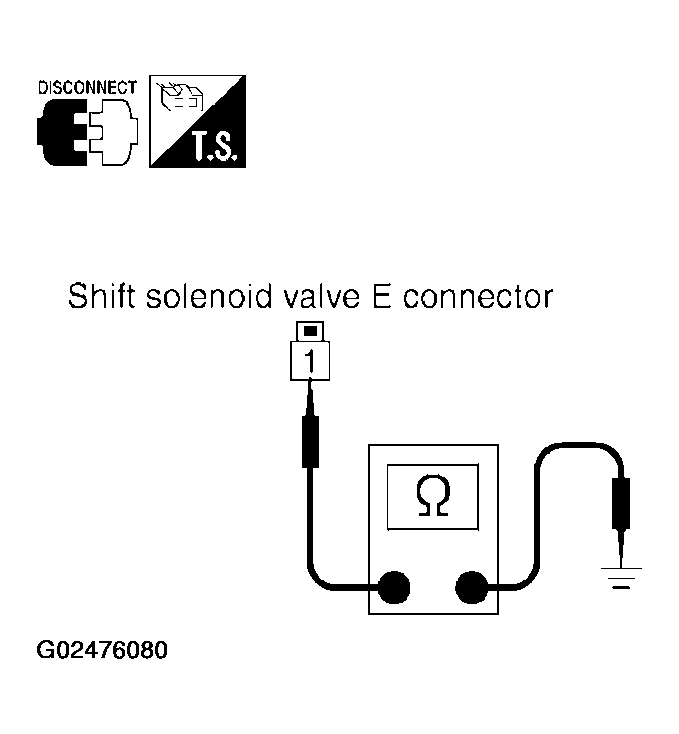

   Fig 7: Checking Resistance Between Shift Solenoid Valve E Harness Connector Terminal 1 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   RESISTANCE SPECIFICATIONS - SHIFT SOLENOID VALVE E HARNESS CONNECTOR TERMINAL 1



   Connector	Terminal	Condition	Resistance (Approx.)
   F71	1 - Ground	Temperature: 20°C (68°F)	11 - 16Ω

OK or NG

• OK : GO TO 6.
• NG : Replace the control valve assembly. Refer to CONTROL VALVE ASSEMBLY .

Check the following.

• Open or short-circuit in the harness between terminal cord assembly and shift solenoid valve E.

OK or NG

• OK : GO TO 7.
• NG : Repair or replace transmission wire. Refer to TRANSMISSION WIRE .

Perform "DTC Confirmation Procedure". Refer to DTC CONFIRMATION PROCEDURE .

OK or NG

• OK : INSPECTION END
• NG : GO TO 8.

1. Check TCM input/output signal. Refer to TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

• OK : INSPECTION END
• NG : Repair or replace damaged parts.
