With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

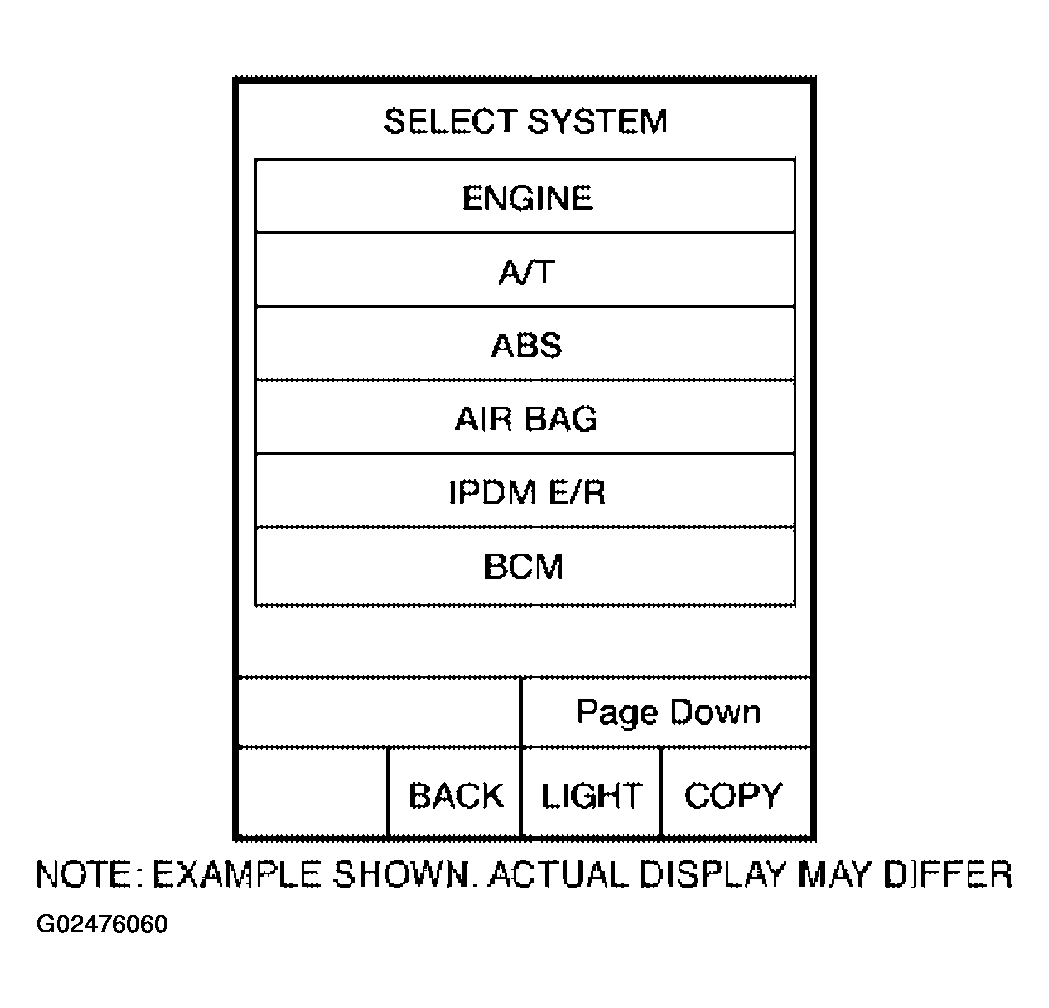

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G02476060Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine.
  4. Drive vehicle and allow the following conditions.

    SLCT LVR POSI: "D" position

    GEAR: 2nd => 3rd position

  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .
