Shift Solenoid Valve C

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove side cover. Refer to SIDE COVER .
Disconnect shift solenoid valve C harness connector.

Check resistance between terminal 1 and ground.

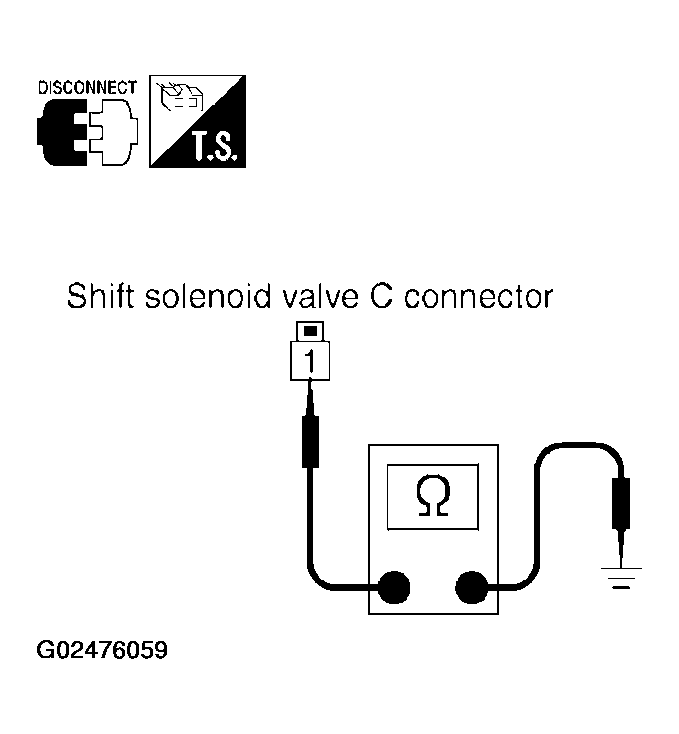

Fig 1: Checking Resistance Between Shift Solenoid Valve C Harness Connector Terminal 1 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

RESISTANCE SPECIFICATIONS - SHIFT SOLENOID VALVE C HARNESS CONNECTOR TERMINAL 1

Connector	Terminal	Condition	Resistance (Approx.)
F69	1 - Ground	Temperature: 20°C (68°F)	11 -16 Ω

If NG, replace the control valve assembly. Refer to CONTROL VALVE ASSEMBLY .
