Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK SHIFT SOLENOID VALVE C SIGNAL

    With CONSULT-II

    1. Start engine.
    2. Select "A/T" with "DATA MONITOR" mode in CONSULT-II.
    3. Drive vehicle and read out the value of "SFT SOL C OUT" and "SFT SOL C MON".

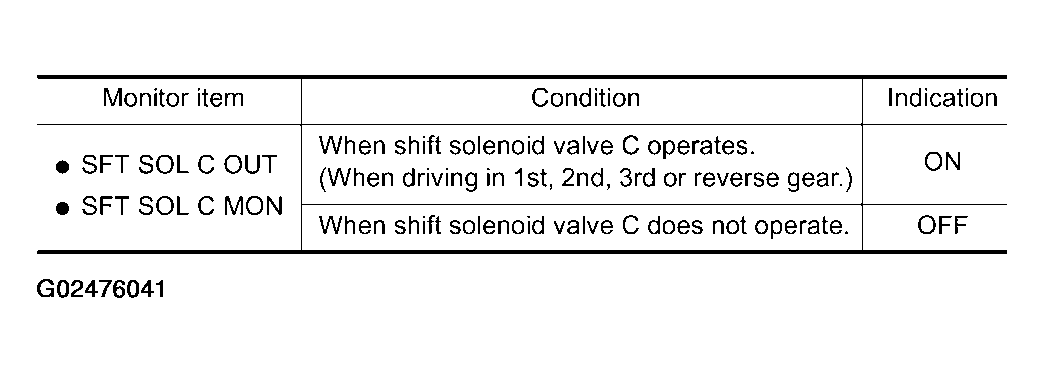

      Fig 1: CONSULT-II Display - Shift Solenoid Valve C Condition Chart
      G02476041Courtesy of NISSAN MOTOR CO., U.S.A.

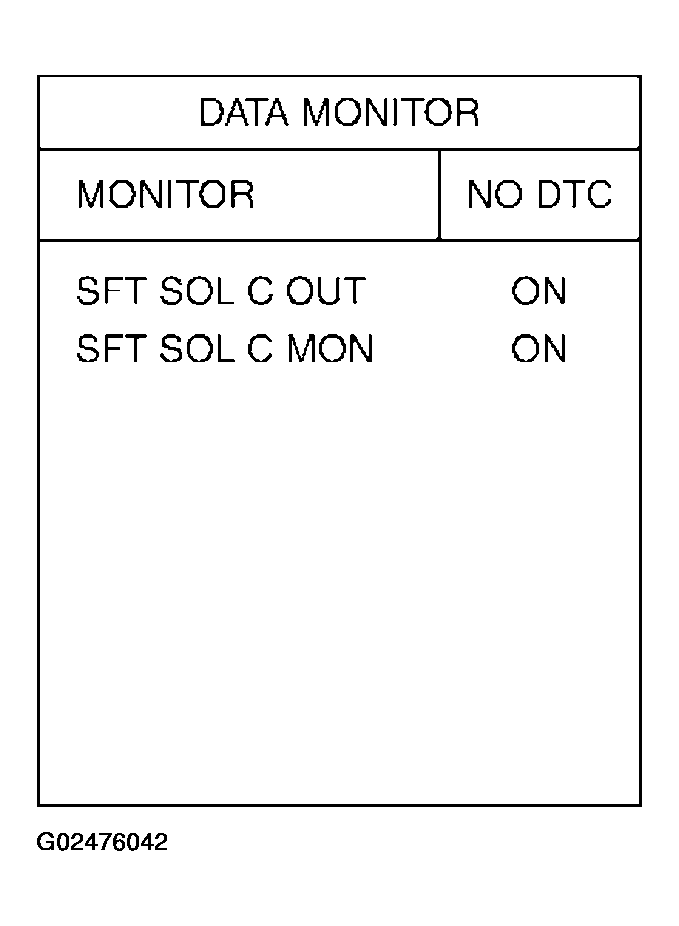

      Fig 2: CONSULT-II Display - DATA MONITOR
      G02476042Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Drive vehicle.
    2. Check voltage between TCM connector terminal and ground.

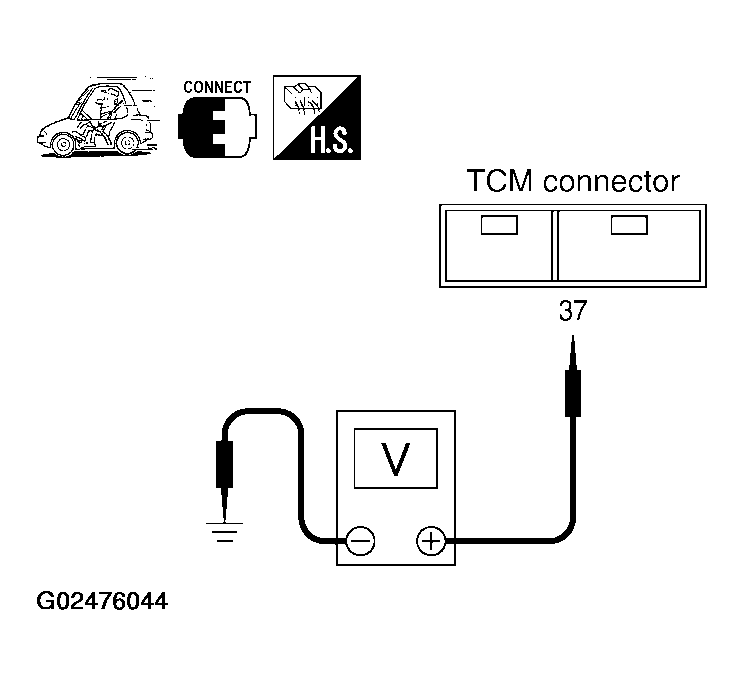

      Fig 3: Checking Voltage Between TCM Connector Terminal 37 & Ground
      G02476044Courtesy of NISSAN MOTOR CO., U.S.A.

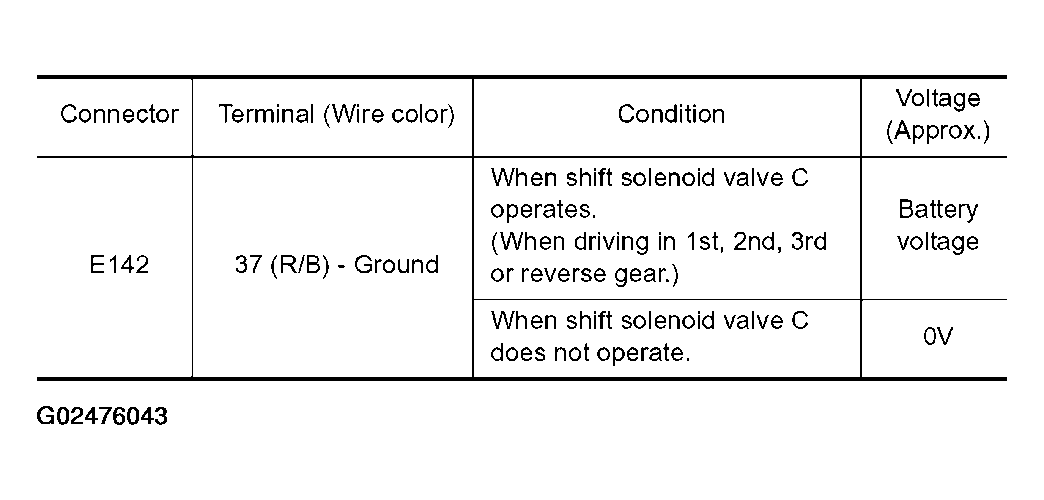

      Fig 4: TCM Connector E142 Terminal 37 Voltage Specifications
      G02476043Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO  7.
    • NG : GO TO 2.
  2. CHECK SHIFT SOLENOID VALVE C CIRCUIT
    1. Turn ignition switch "OFF".
    2. Disconnect the TCM connector.
    3. Check resistance between TCM connector terminal 37 and ground.

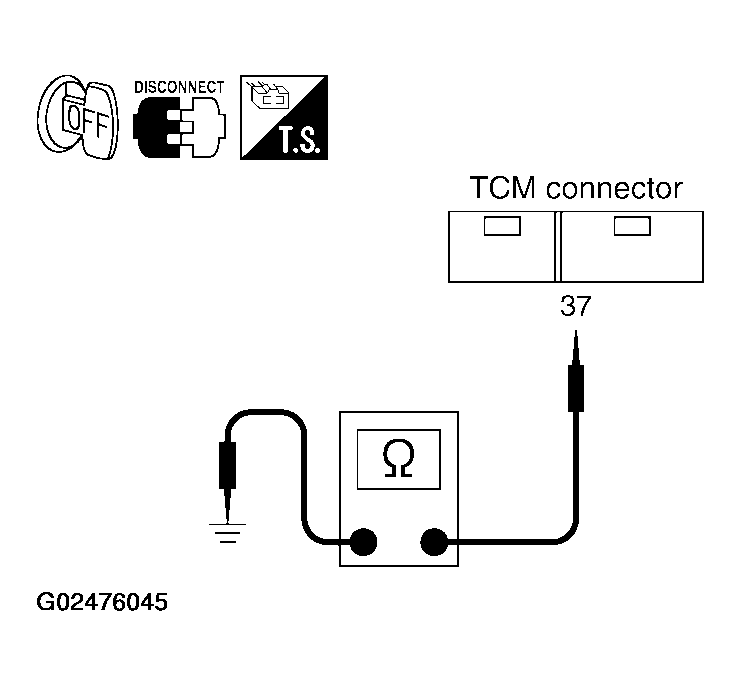

      Fig 5: Checking Resistance Between TCM Connector Terminal 37 & Ground
      G02476045Courtesy of NISSAN MOTOR CO., U.S.A.
      RESISTANCE SPECIFICATIONS - TCM CONNECTOR TERMINAL 37

      Connector Terminal (Wire color) Condition Resistance (Approx.)
      E 142 37 (R/B) - Ground Temperature: 20°C (68°F) 11 -16 Ω

    OK or NG

    • OK : GO TO  7.
    • NG : GO TO 3.
  3. CHECK TERMINAL CORD ASSEMBLY WITH SHIFT SOLENOID VALVE C
    1. Turn ignition switch "OFF".
    2. Disconnect terminal cord assembly harness connector.
    3. Check resistance between terminal 4 and ground.

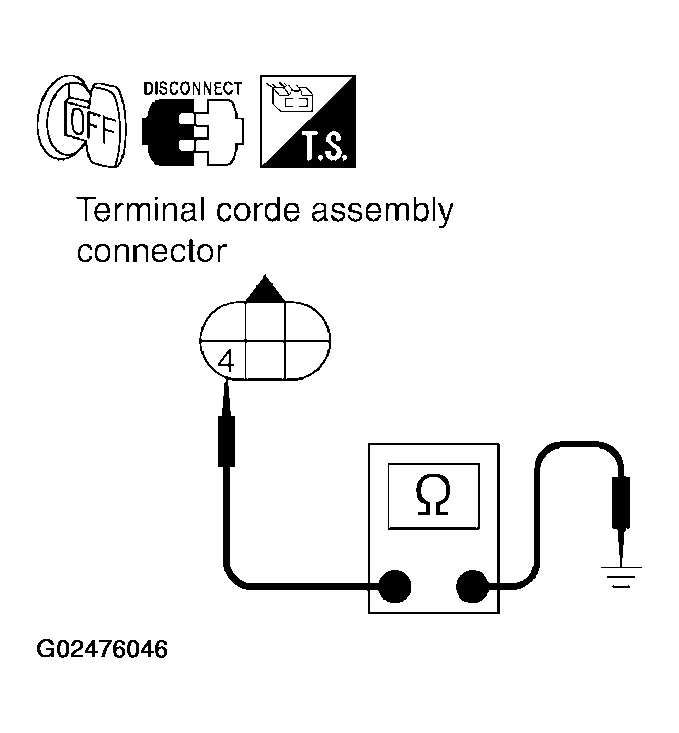

      Fig 6: Resistance Between Terminal Cord Assembly With Shift Solenoid Valve C Terminal 4 & Ground
      G02476046Courtesy of NISSAN MOTOR CO., U.S.A.
      RESISTANCE SPECIFICATIONS - SHIFT SOLENOID VALVE C TERMINAL 4

      Connector Terminal Condition Resistance (Approx.)
      F 62 4-Ground Temperature: 20°C (68°F) 11 -16 Ω

    OK or NG

    • OK : GO TO 4.
    • NG : GO TO  5.
  4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY

    Check the following.

    • Open or short-circuit in the harness between TCM and terminal cord assembly.

    OK or NG

    • OK : GO TO  7.
    • NG : Repair or replace damaged parts
  5. CHECK SHIFT SOLENOID VALVE C
    1. Remove side cover. Refer to SIDE COVER .
    2. Disconnect shift solenoid valve C harness connector.
    3. Check resistance between terminal 1 and ground.

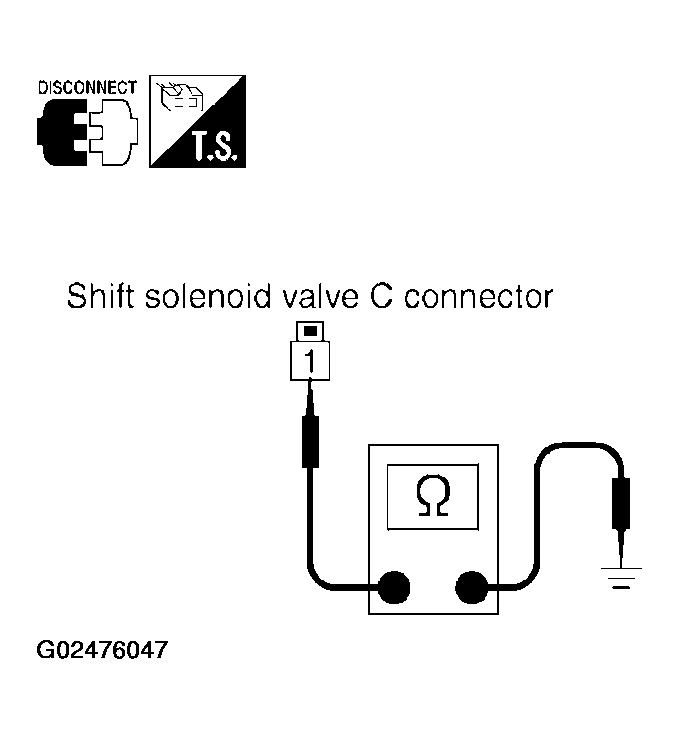

      Fig 7: Checking Resistance Between Shift Solenoid Valve C Harness Connector Terminal 1 & Ground
      G02476047Courtesy of NISSAN MOTOR CO., U.S.A.
      RESISTANCE SPECIFICATIONS - SHIFT SOLENOID VALVE C HARNESS CONNECTOR TERMINAL 1

      Connector Terminal Condition Resistance (Approx.)
      F 69 1-Ground Temperature: 20°C (68°F) 11 -16 Ω

    OK or NG

  6. CHECK HARNESS BETWEEN TERMINAL CORD ASSEMBLY AND SHIFT SOLENOID VALVE C

    Check the following.

    • Open or short-circuit in the harness between terminal cord assembly and shift solenoid valve C.

    OK or NG

    • OK : GO TO 7.
    • NG : Repair or replace transmission wire.
  7. CHECK DTC

    Perform "DTC Confirmation Procedure". Refer to DTC CONFIRMATION PROCEDURE .

    OK or NG

    • OK : INSPECTION END
    • NG : GO TO 8.
  8. CHECK TCM
    1. Check TCM input/output signal. Refer to TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES .
    2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

    OK or NG

    • OK : INSPECTION END
    • NG : Repair or replace damaged parts.
