Diagnostic Procedure

With CONSULT-II

1. After warming up the engine and transaxle, turn ignition switch "OFF".
2. Turn ignition switch "ON". (Do not start engine.)
3. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
4. Read out the value of "PC SOL A OUT" and "PC SOL A MON".

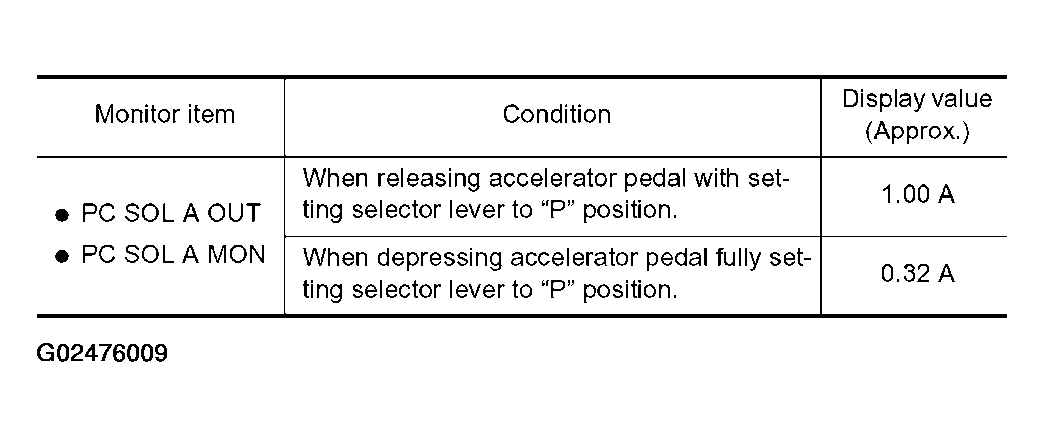

   Fig 1: CONSULT-II Display - Pressure Control Solenoid Valve A Operating Conditions

   Courtesy of NISSAN MOTOR CO., U.S.A.

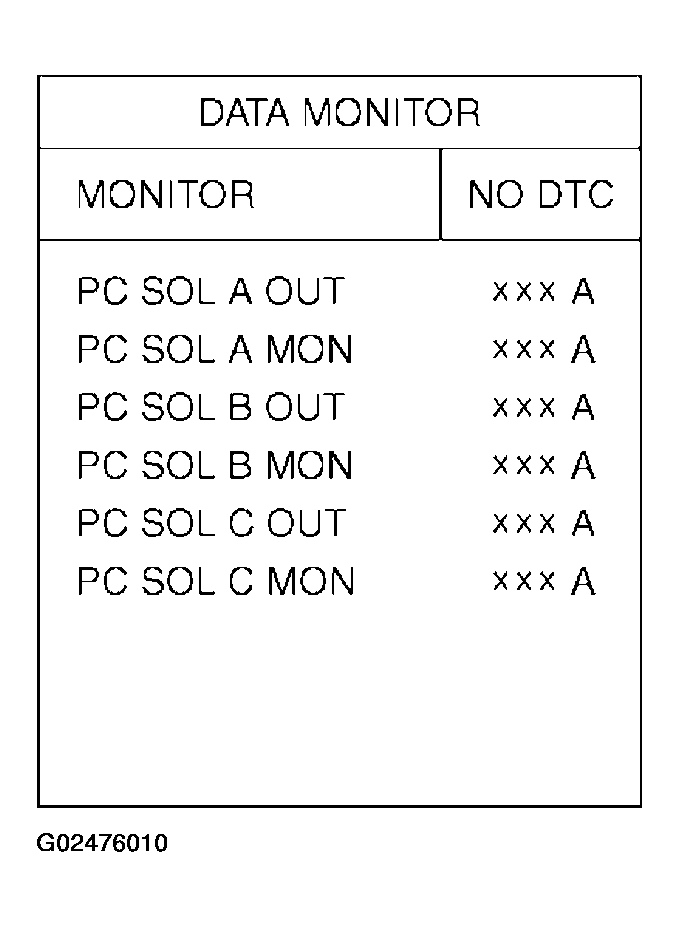

   Fig 2: CONSULT-II Display - DATA MONITOR, PRESSURE CONTROL SOLENOID VALVE

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Start the engine.
2. Check pulse between TCM connector terminals 35 and 40.

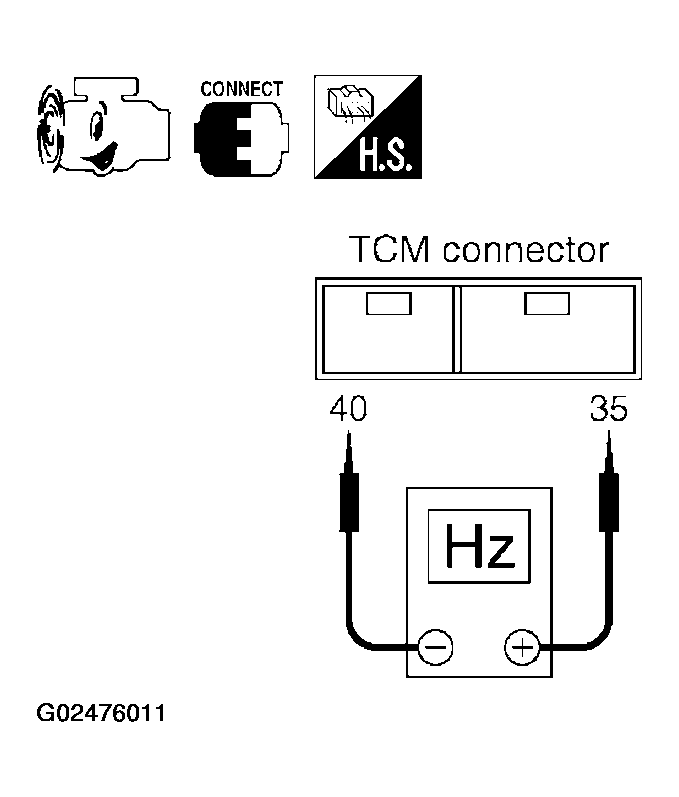

   Fig 3: Checking Pulse (Hertz) Between TCM Connector Terminals 35 & 40

   Courtesy of NISSAN MOTOR CO., U.S.A.
   PULSE (HERTZ) SPECIFICATIONS - TCM CONNECTOR TERMINALS 35 & 40



   Connector	Terminal (Wire color)	Condition	Data (Approx.)
   E142	35 (L/Y) - 40 (L/G)	When engine is running with idle speed and setting selector lever to "P" position.	300 Hz

OK or NG

• OK : GO TO  7.
• NG : GO TO 2.

1. Turn ignition switch "OFF".
2. Disconnect the TCM connector.
3. Check resistance between TCM connector terminals 35 and 40.

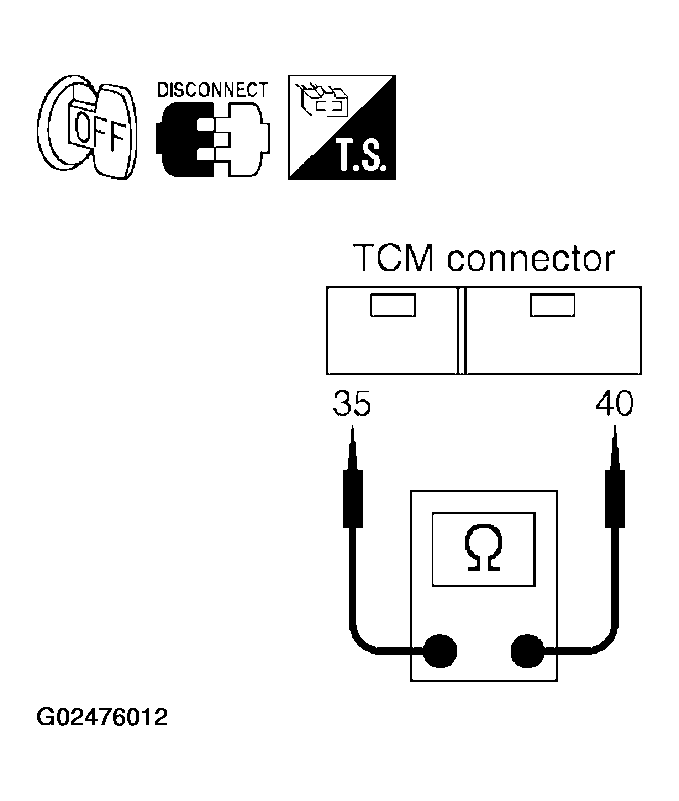

   Fig 4: Checking Resistance Between TCM Connector Terminals 35 & 40

   Courtesy of NISSAN MOTOR CO., U.S.A.
   RESISTANCE SPECIFICATIONS - TCM CONNECTOR TERMINALS 35 & 40



   Connector	Terminal (Wire color)	Condition	Resistance (Approx.)
   E142	35 (L/Y) - 40 (L/G)	Temperature: 20°C (68°F)	5.0 - 5.6 Ω

OK or NG

• OK : GO TO  7.
• NG : GO TO 3.

1. Turn ignition switch "OFF".
2. Disconnect terminal cord assembly harness connector.
3. Check resistance between terminals 3 and 6.

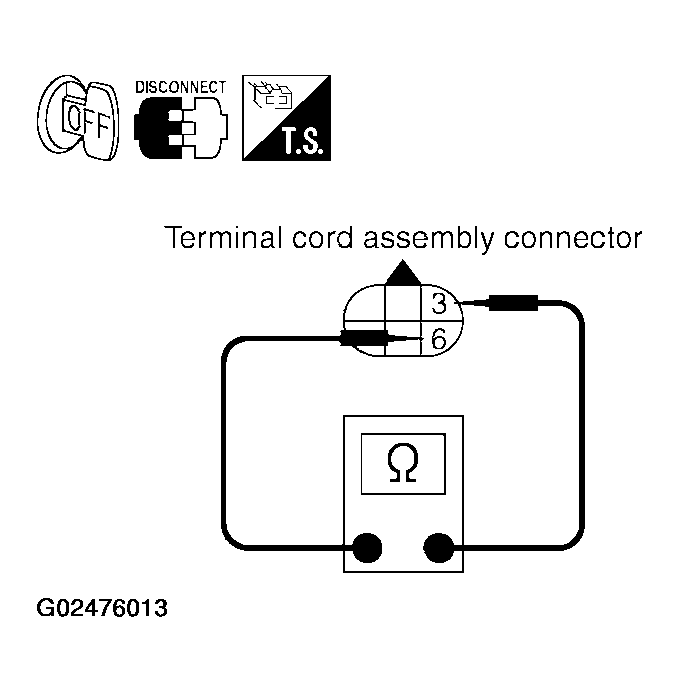

   Fig 5: Checking Resistance Between Pressure Control Solenoid Valve A, Terminal Cord Assembly Harness Connector Terminals 3 & 6

   Courtesy of NISSAN MOTOR CO., U.S.A.
   RESISTANCE SPECIFICATIONS - PRESSURE CONTROL SOLENOID VALVE A, TERMINALS 3 & 6



   Connector	Terminal	Condition	Resistance (Approx.)
   F62	3 - 6	Temperature: 20°C (68°F)	5.0 - 5.6 Ω

OK or NG

• OK : GO TO 4.
• NG : GO TO  5.

Check the following.

• Open or short-circuit in the harness between TCM and terminal cord assembly.

OK or NG

• OK : GO TO  7.
• NG : Repair or replace damaged parts.

1. Remove side cover. Refer to SIDE COVER .
2. Disconnect pressure control solenoid valve A harness connector.
3. Check resistance between terminals 1 and 2.

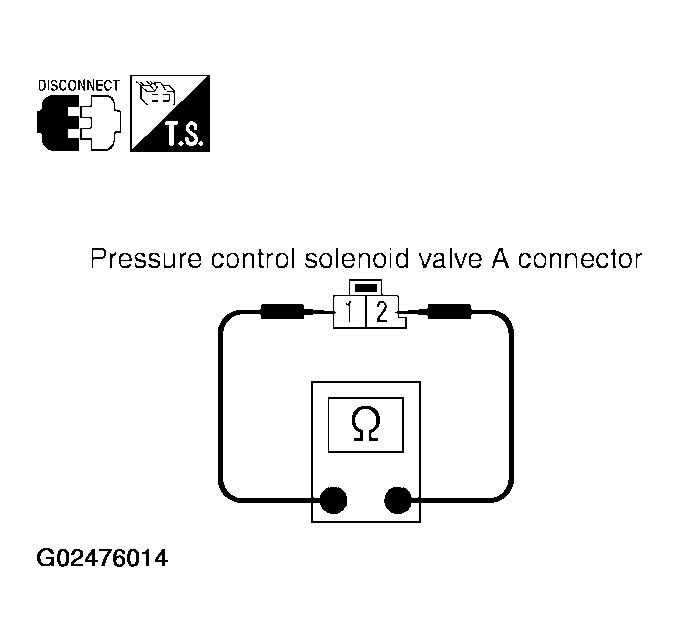

   Fig 6: Checking Resistance Between Pressure Control Solenoid Valve A Harness Connector Terminals 1 & 2

   Courtesy of NISSAN MOTOR CO., U.S.A.
   RESISTANCE SPECIFICATIONS - PRESSURE CONTROL SOLENOID VALVE A HARNESS CONNECTOR TERMINALS 1 & 2



   Connector	Terminal	Condition	Resistance (Approx.)
   F72	1 - 2	Temperature: 20°C (68°F)	5.0 - 5.6 Ω

OK or NG

• OK : GO TO 6.
• NG : Replace the control valve assembly. Refer to CONTROL VALVE ASSEMBLY .

Check the following.

• Open or short-circuit in the harness between terminal cord assembly and pressure control solenoid valve A.

OK or NG

• OK : GO TO 7.
• NG : Repair or replace transmission wire. Refer to TRANSMISSION WIRE .

Perform "DTC Confirmation Procedure". Refer to DTC CONFIRMATION PROCEDURE .

OK or NG

• OK : INSPECTION END
• NG : GO TO 8.

1. Check TCM input/output signal. Refer to TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

• OK : INSPECTION END
• NG : Repair or replace damaged parts.
