Pressure Control Solenoid Valve A

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove side cover. Refer to SIDE COVER .
Disconnect pressure control solenoid valve A harness connector.

Check resistance between terminals 1 and 2.

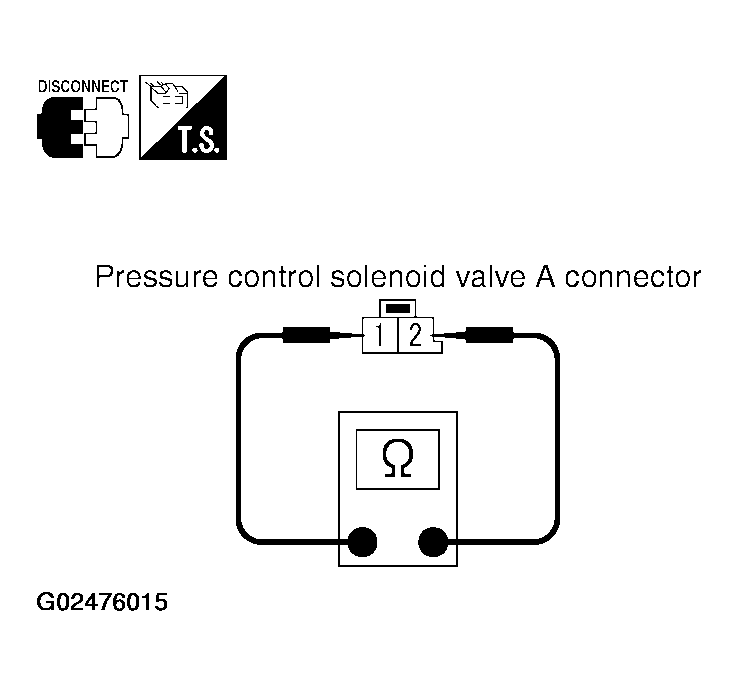

Fig 1: Checking Resistance Between Pressure Control Solenoid Valve A Harness Connector Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

RESISTANCE SPECIFICATIONS - PRESSURE CONTROL SOLENOID VALVE A HARNESS CONNECTOR TERMINALS 1 & 2

Connector	Terminal	Condition	Resistance (Approx.)
F72	1 - 2	Temperature: 20°C (68°F)	5.0 - 5.6 Ω

If NG, replace the control valve assembly. Refer to CONTROL VALVE ASSEMBLY .
