Wiring Diagram - AT - TCCSIG

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

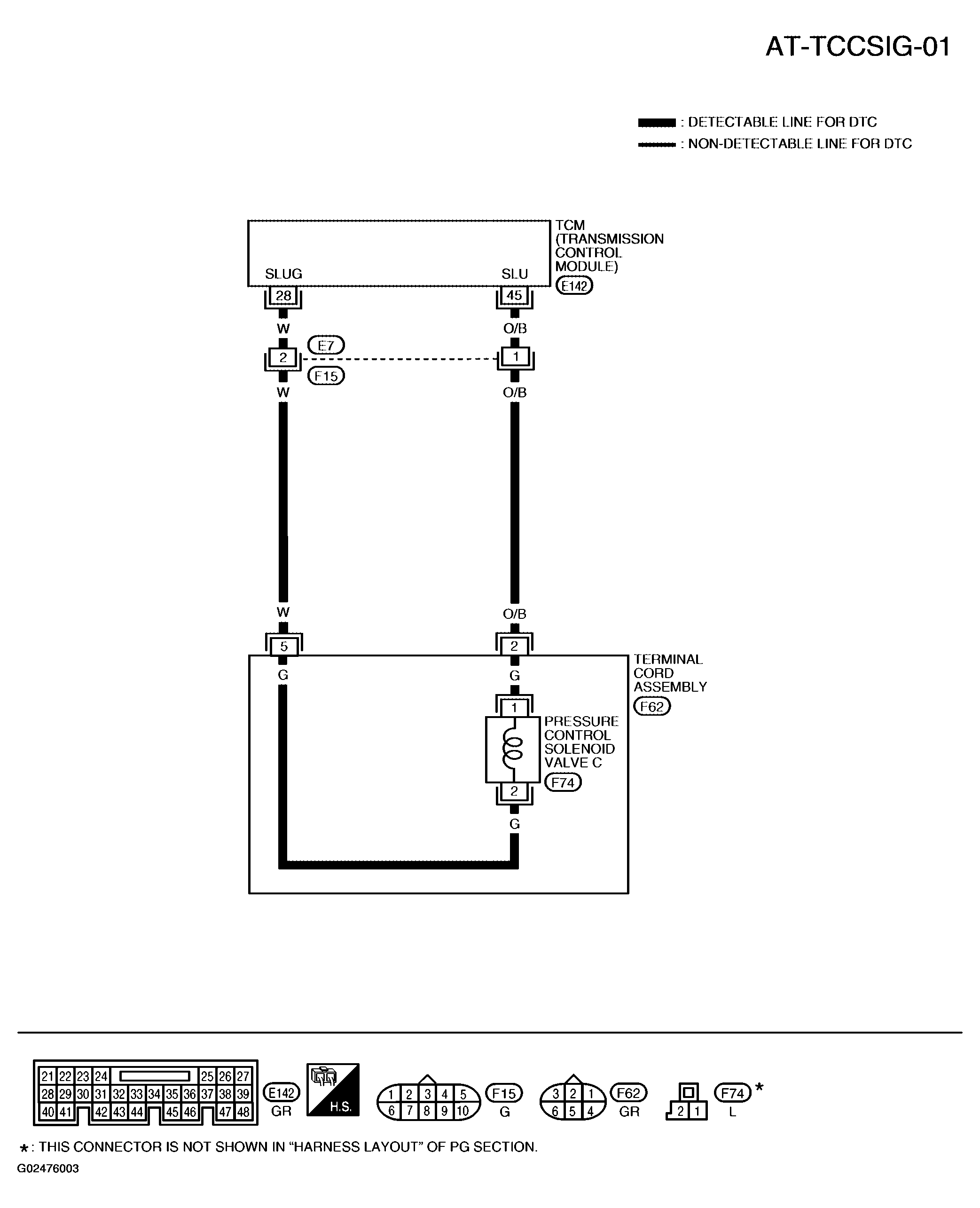

Fig 1: Wiring Diagram - Torque Converter Clutch Signal (AT-TCCSIG-01)
G02476003Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminals and data are reference value. Measured between each terminal and ground.

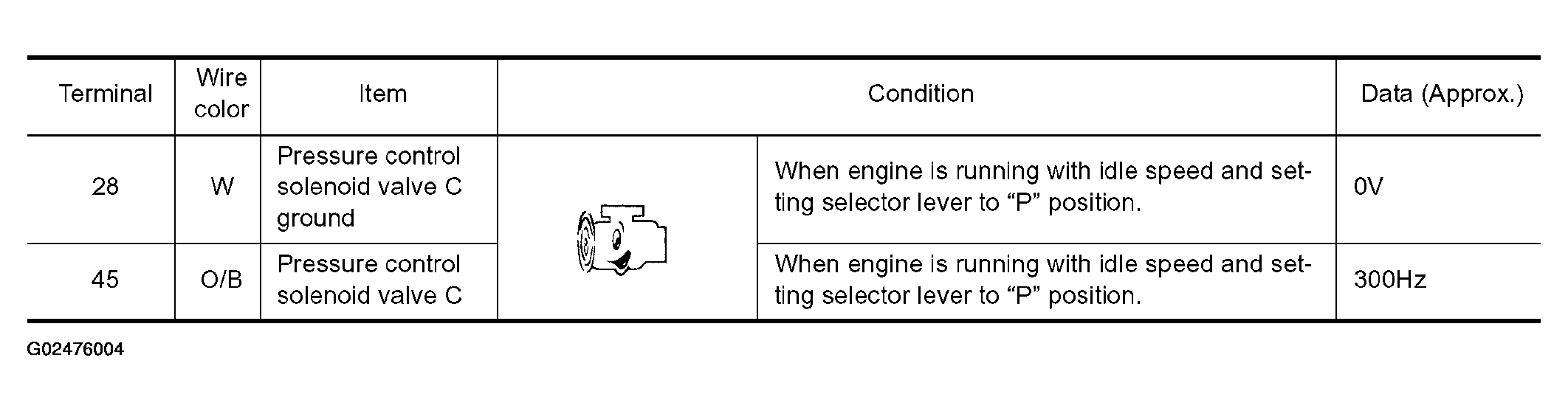

Fig 2: TCM Terminals & Data Reference Value Chart- Torque Converter Clutch Signal
G02476004Courtesy of NISSAN MOTOR CO., U.S.A.
