Wiring Diagram - AT - 5THSIG

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

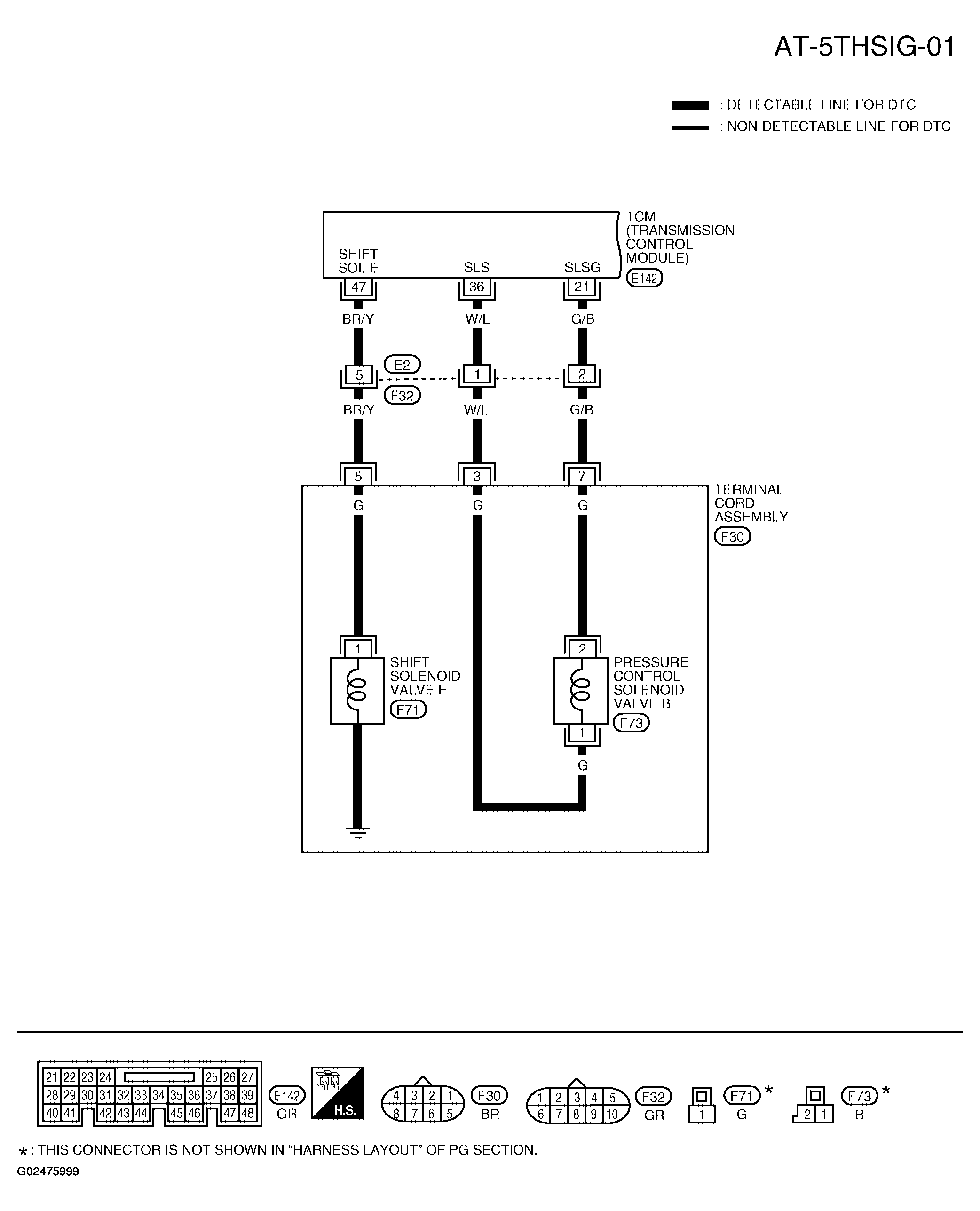

Fig 1: Wiring Diagram - 5th Gear Signal (AT-5THSIG-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

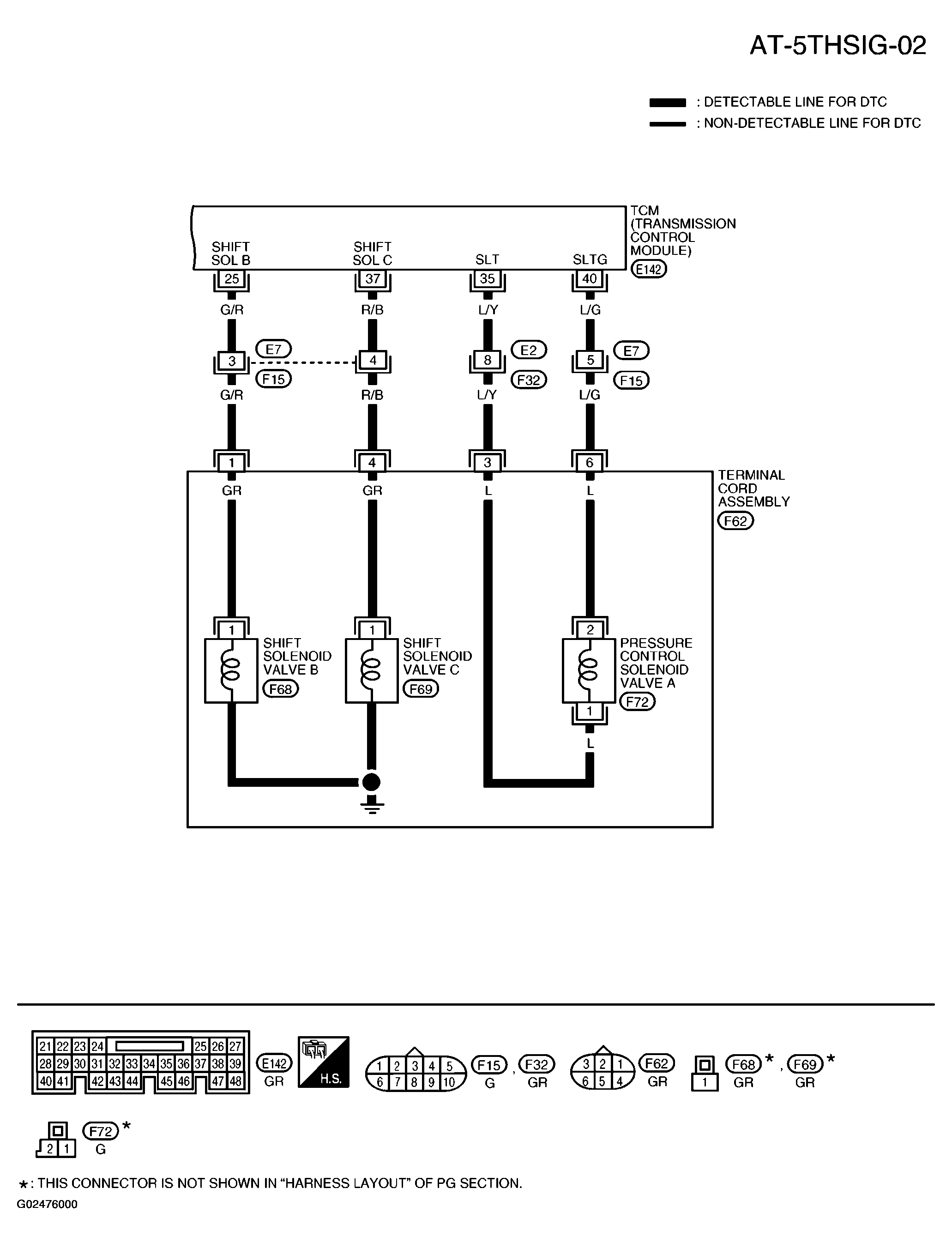

Fig 2: Wiring Diagram - 5th Gear Signal (AT-5THSIG-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminals and data are reference value. Measured between each terminal and ground.

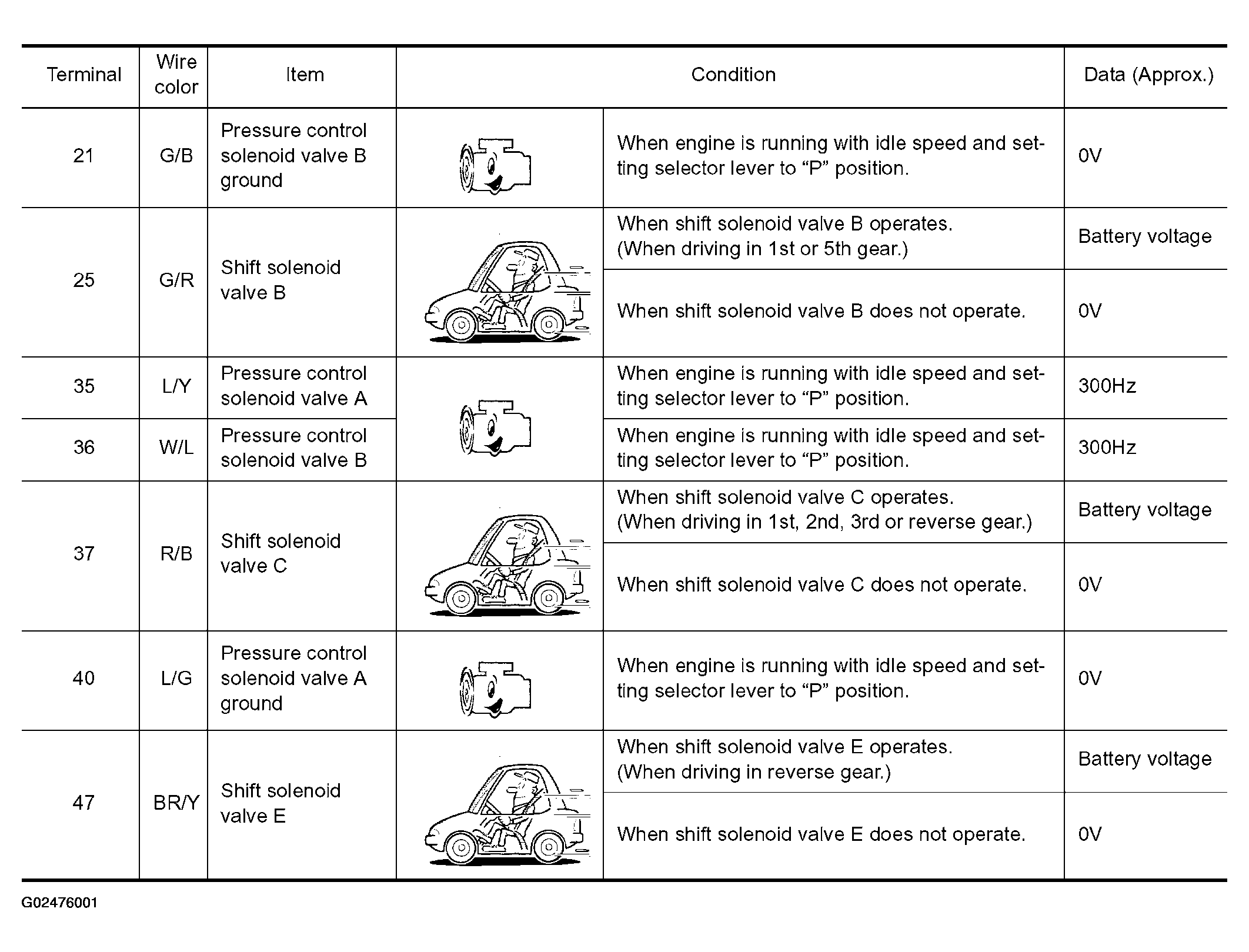

Fig 3: TCM Terminals & Data Reference Value Chart - 5th Gear Signal

Courtesy of NISSAN MOTOR CO., U.S.A.
