Wiring Diagram - AT - 1STSIG

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

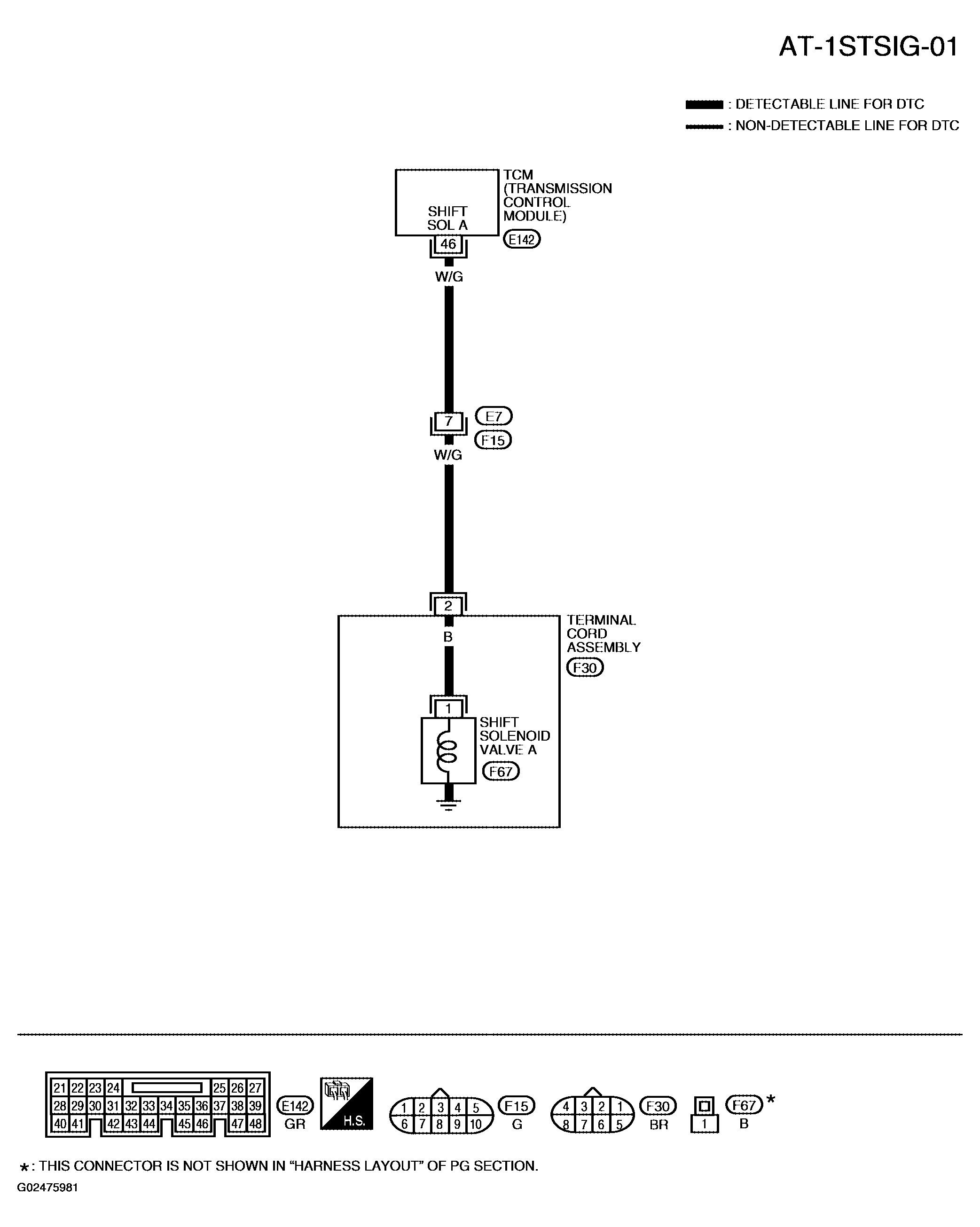

Fig 1: Wiring Diagram - Shift Solenoid A, 1st Gear (AT-1STSIG-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal and data are reference value. Measured between each terminal and ground.

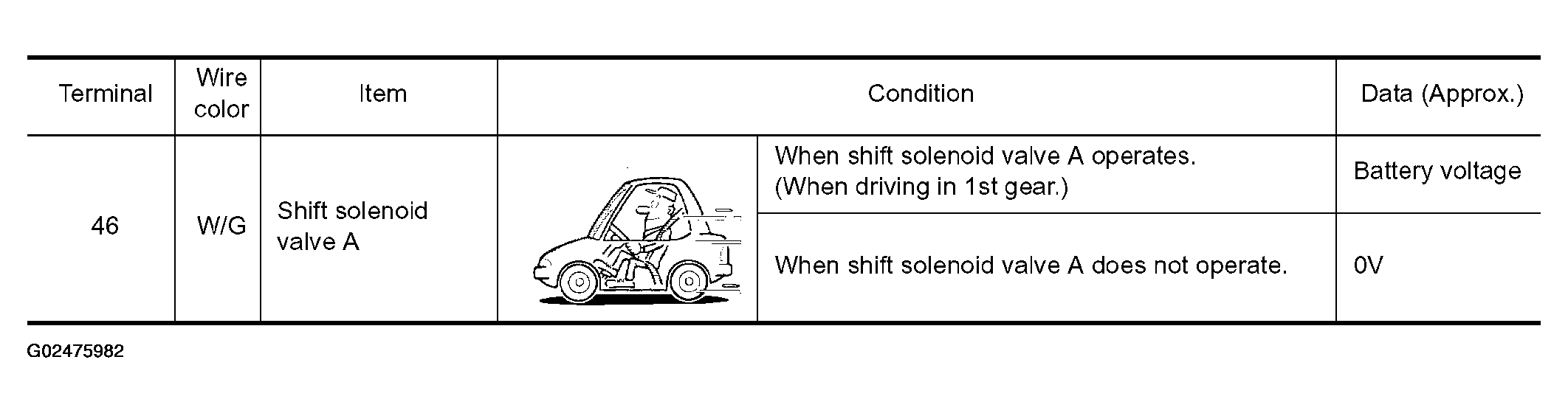

Fig 2: TCM Terminal & Reference Value Chart - Shift Solenoid Valve A (1st Gear)

Courtesy of NISSAN MOTOR CO., U.S.A.
