Wiring Diagram - AT - VSSATC

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

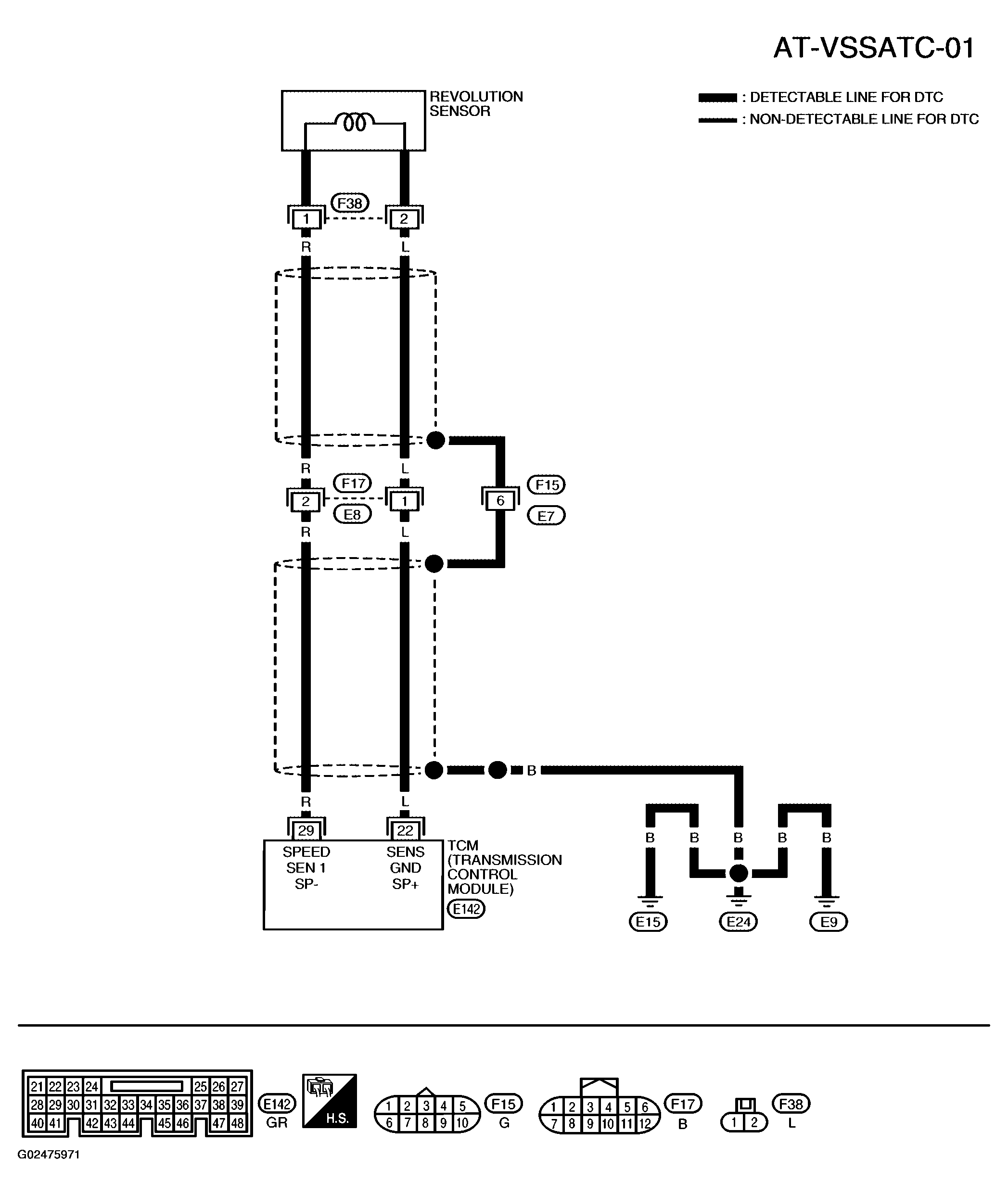

Fig 1: Wiring Diagram - Revolution Sensor (AT-VSSATC-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

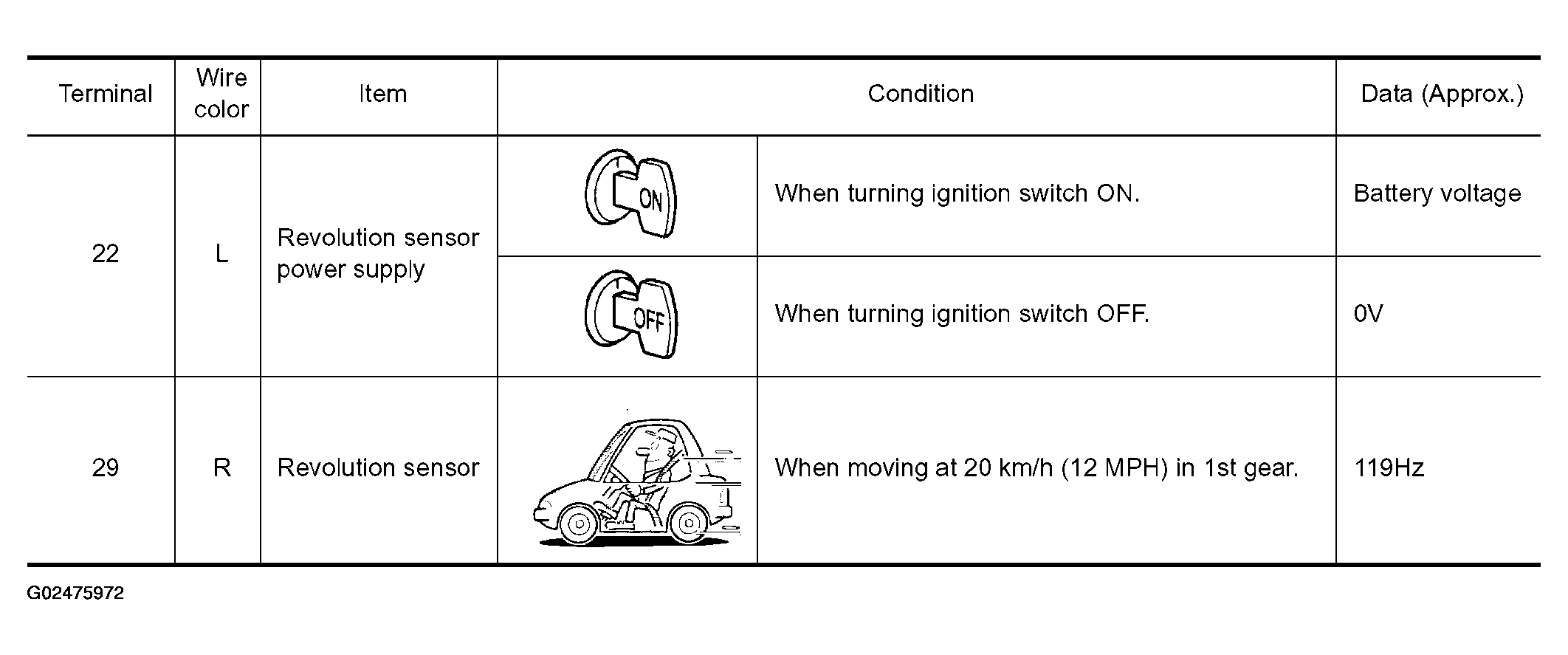

TCM terminals and each are reference value. Measured between each terminals and ground.

Fig 2: TCM Terminals Reference Value Chart - Revolution Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
