Wiring Diagram - AT - TRSC

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

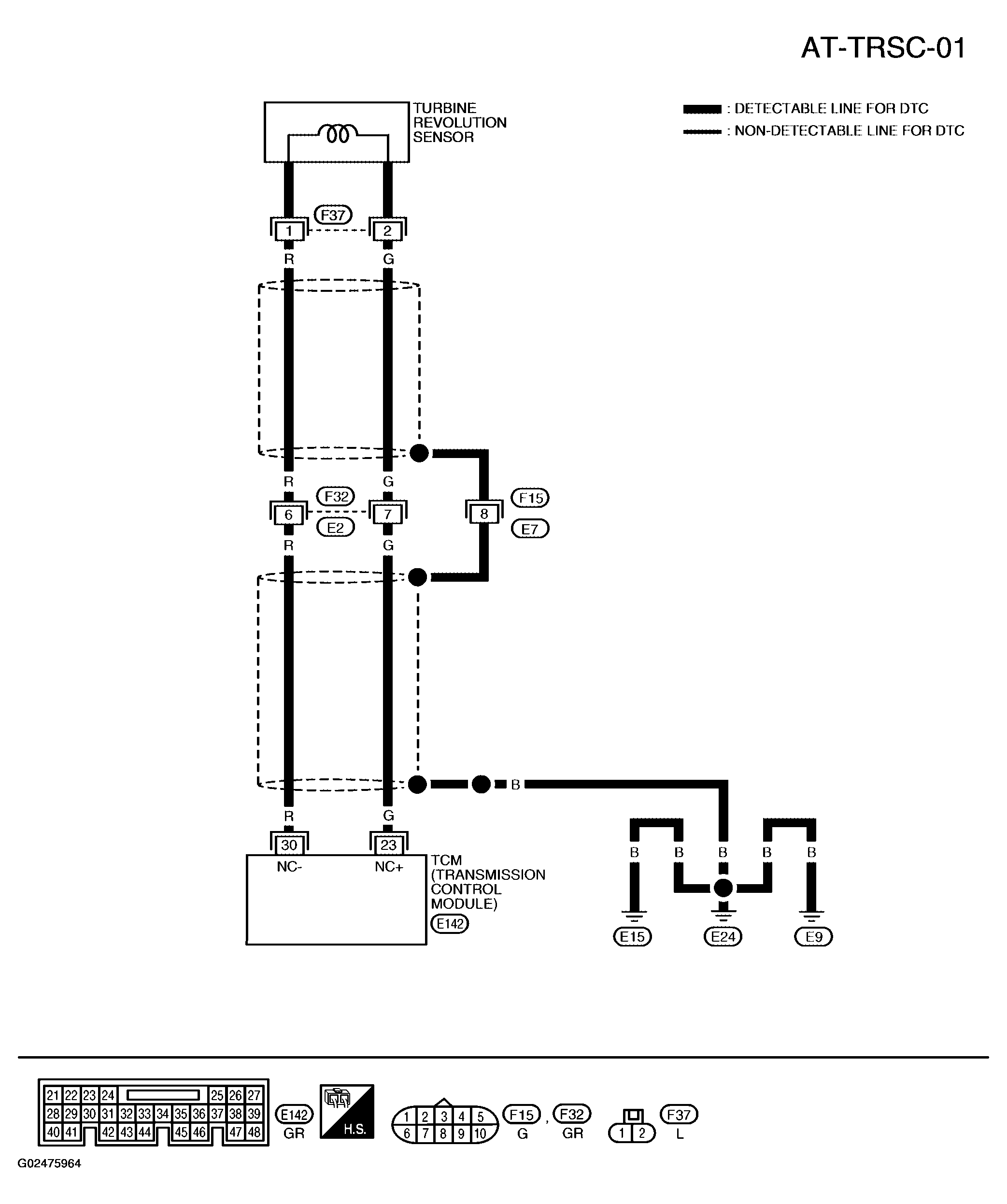

Fig 1: Wiring Diagram - Turbine Revolution Sensor (AT-TRSC-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

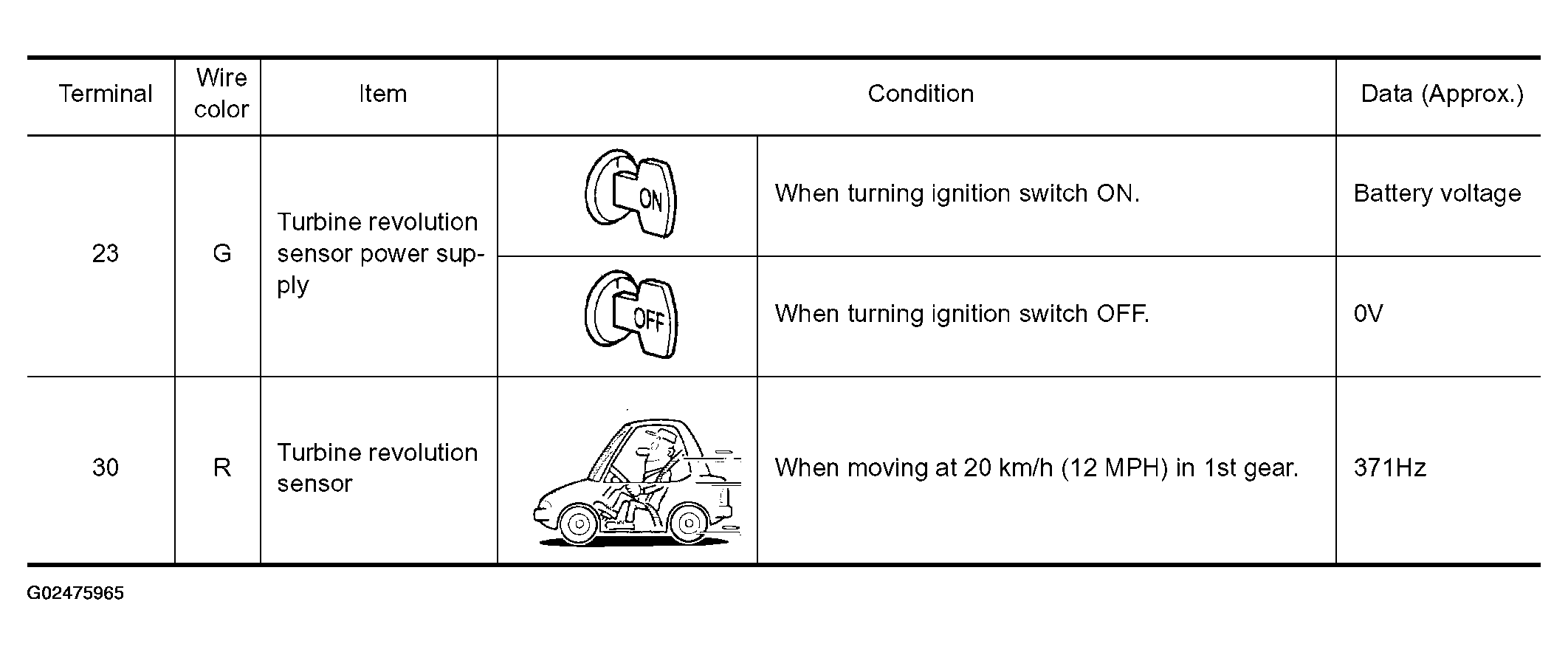

TCM terminals and each are reference value. Measured between each terminals and ground.

Fig 2: TCM Terminals & Reference Value Chart - Turbine Revolution Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
