A/T Fluid Temperature Sensor

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove side cover. Refer to SIDE COVER .
Disconnect A/T fluid temperature sensor.
Check resistance between terminals 4 and 8.

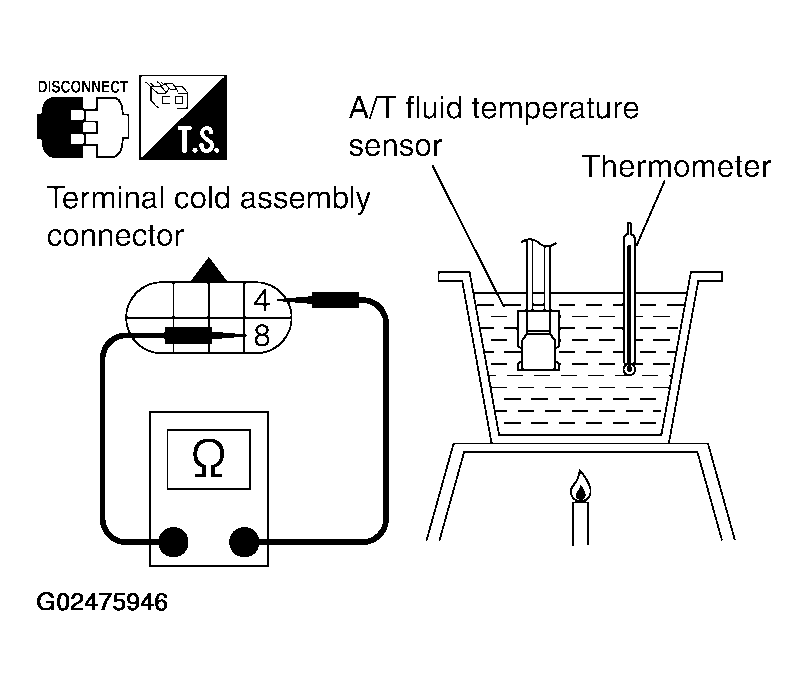

Fig 1: Checking Resistance Between Terminal Cord Assembly Connector Terminals 4 & 8
Courtesy of NISSAN MOTOR CO., U.S.A.

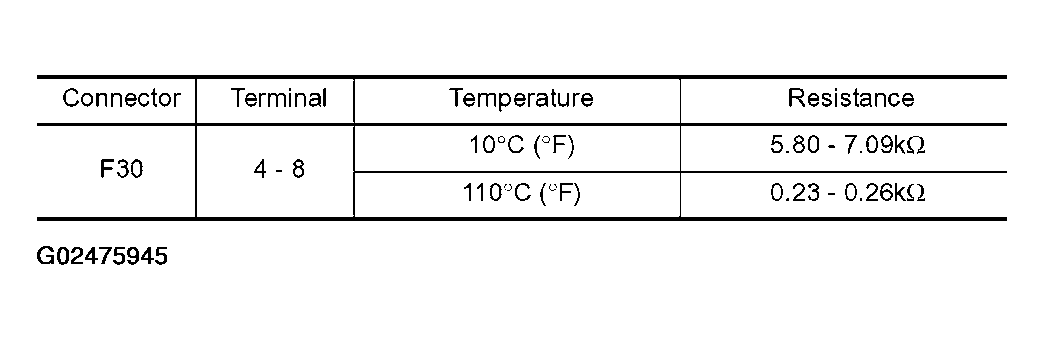

Fig 2: Terminal Cord Assembly Connector Terminals 4 & 8 Resistance Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, repair and replace transmission wire. Refer to TRANSMISSION WIRE .
