Wiring Diagram - AT - PNP/SW

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

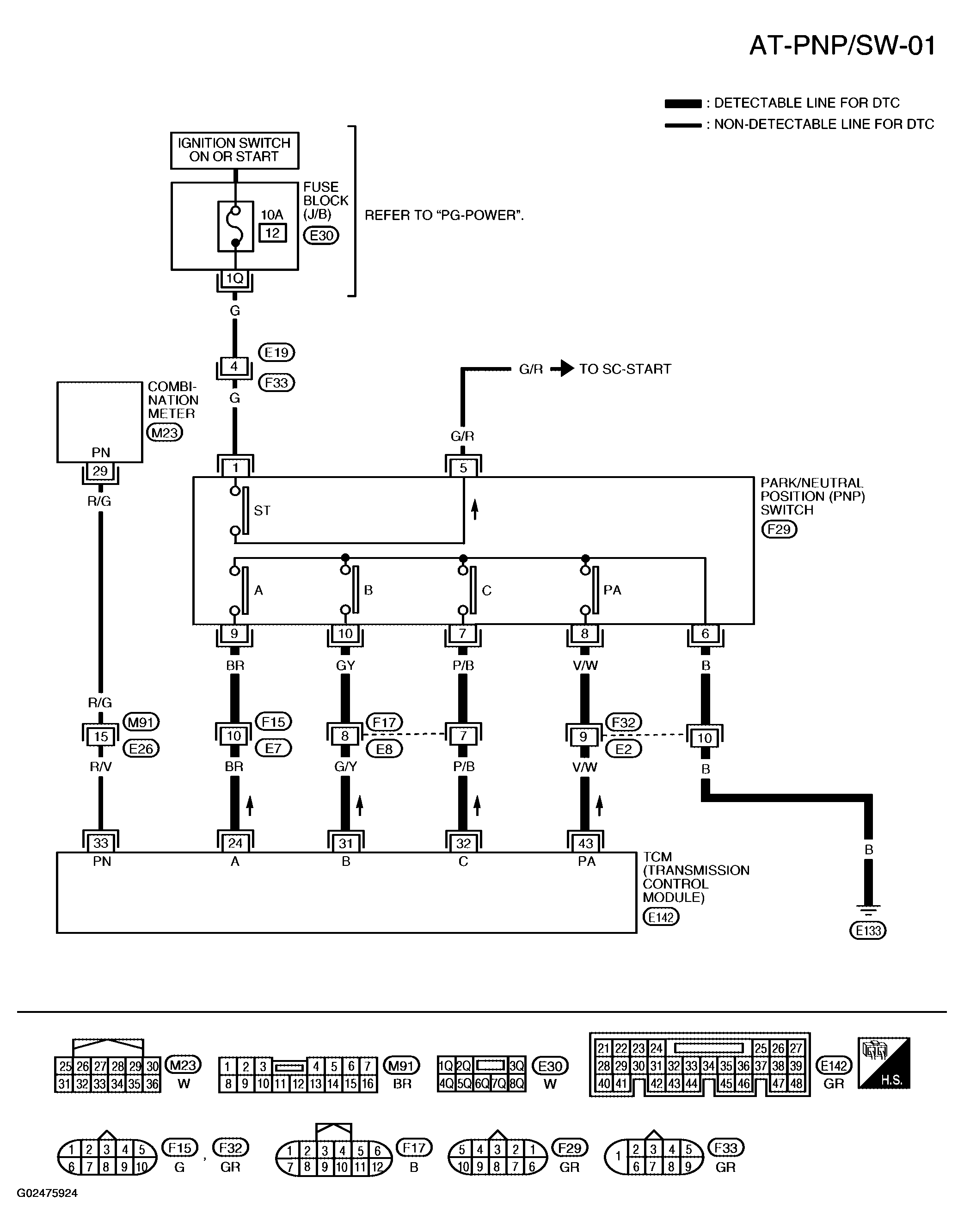

Fig 1: Wiring Diagram - Park/Neutral Position Switch (AT-PNP/SW-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

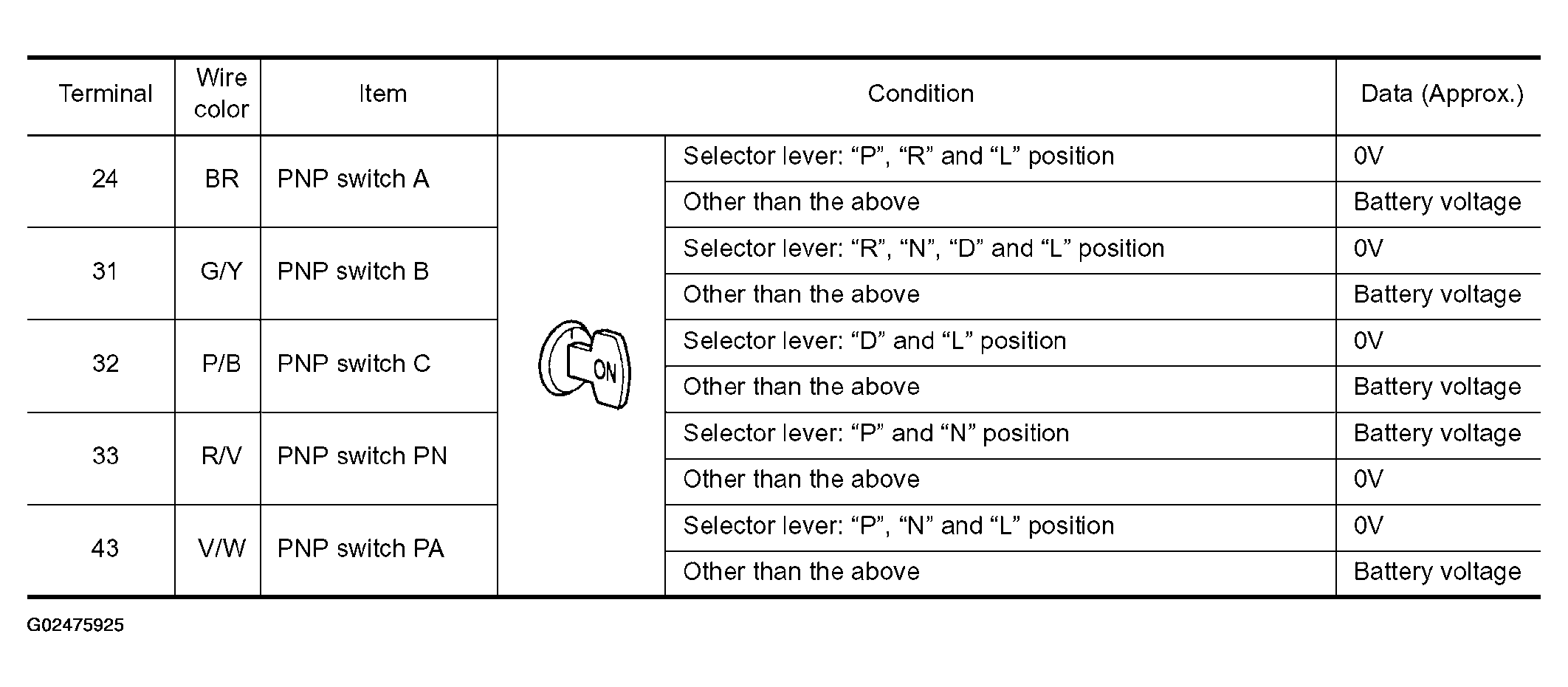

TCM terminals and data are reference value. Measured between each terminal and ground.

Fig 2: TCM Terminal & Data Reference Value - Park/Neutral Position Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
