Assembly (1)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

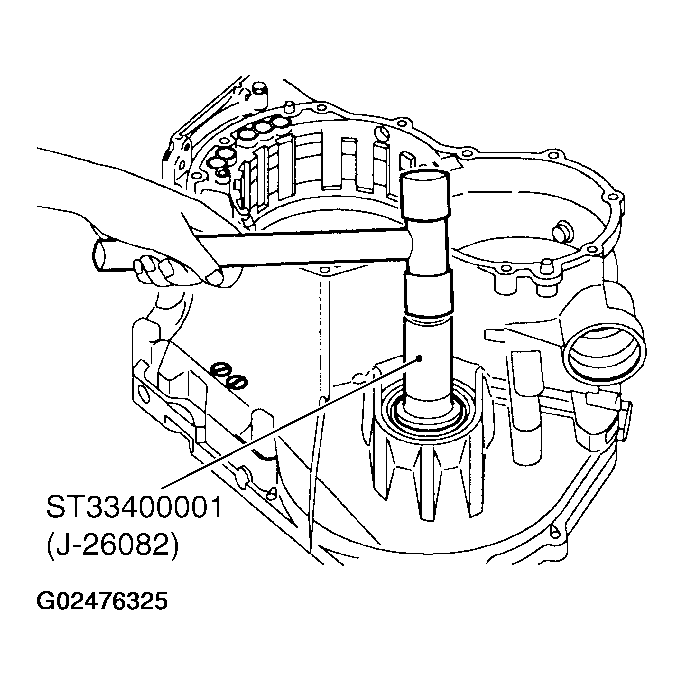

Install the differential side oil seal into transaxle case, using a drift.

Fig 1: Installing Differential Side Oil Seal Into Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

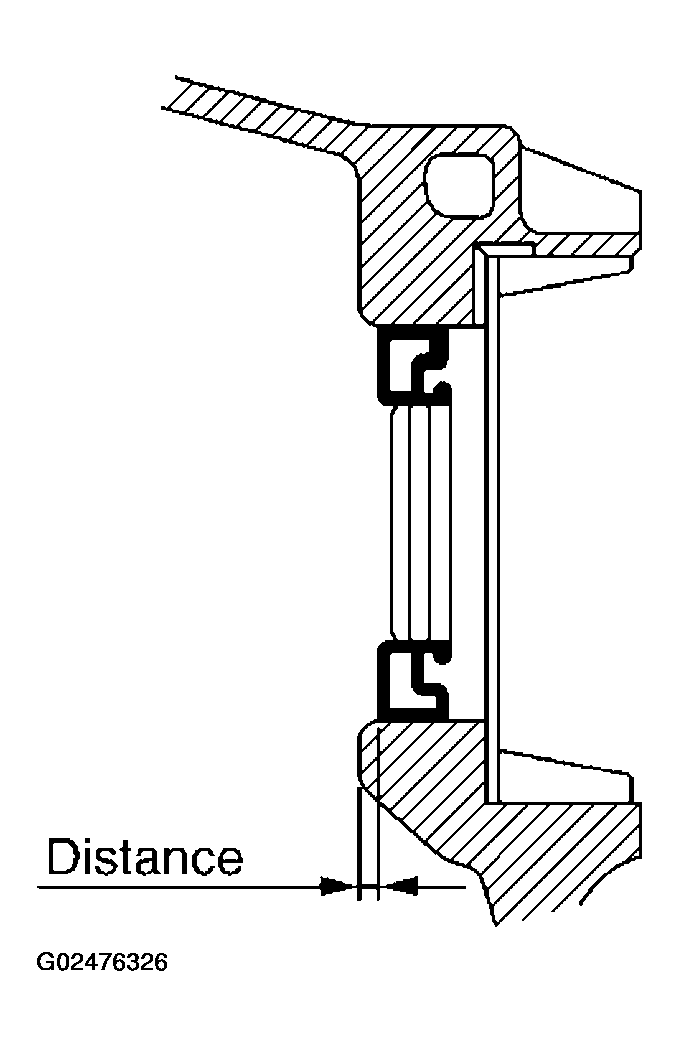

Fig 2: Identifying Differential Side Oil Seal Installed Distance
Courtesy of NISSAN MOTOR CO., U.S.A.
- Distance : 3.0 - 4.0 mm (0.118 - 0.157 in)
CAUTION:
- Do not reuse differential side oil seal.
- Apply ATF to differential side oil seal.

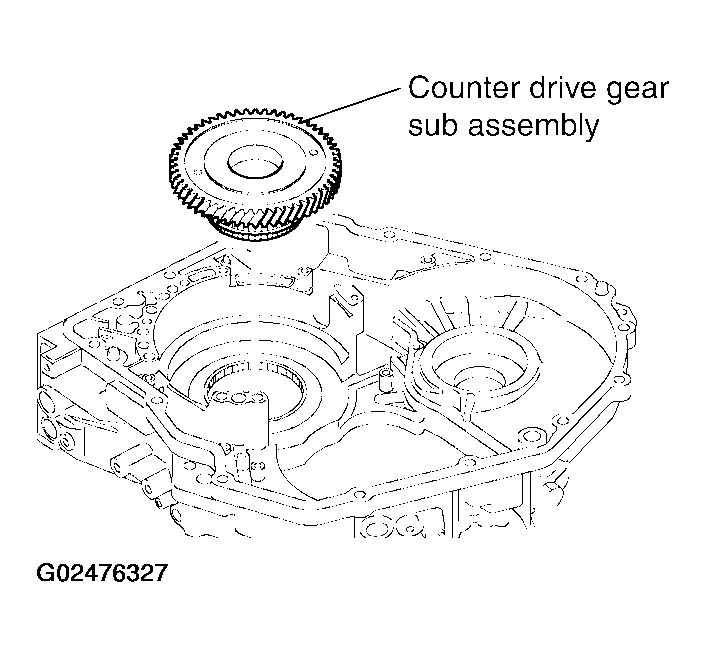

Install counter drive gear sub assembly.

Fig 3: Installing Counter Drive Gear Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

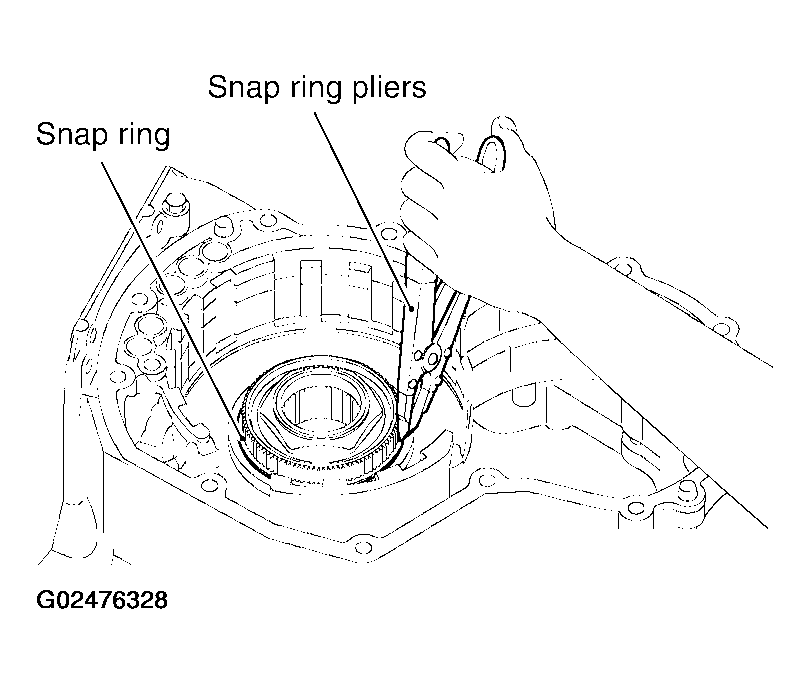

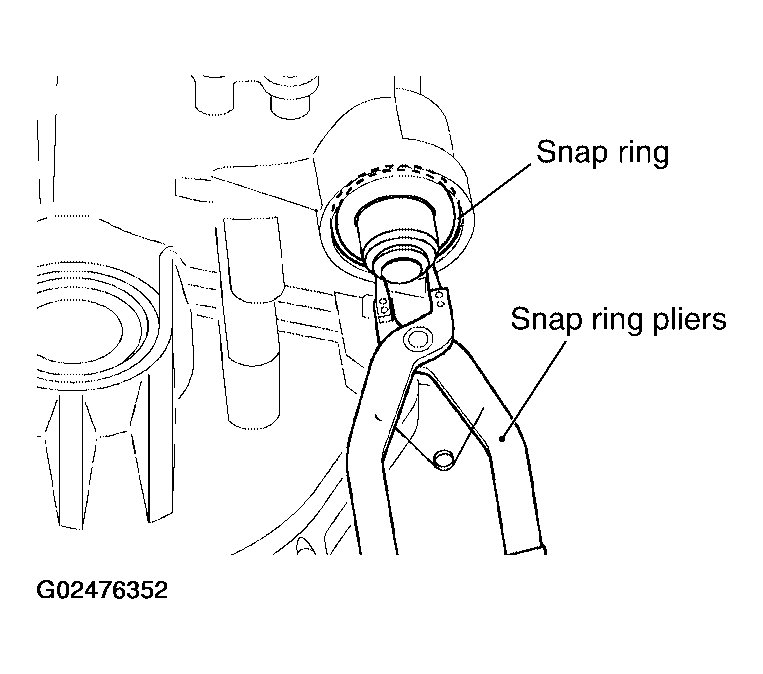

Using a snap ring pliers and install snap ring.

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

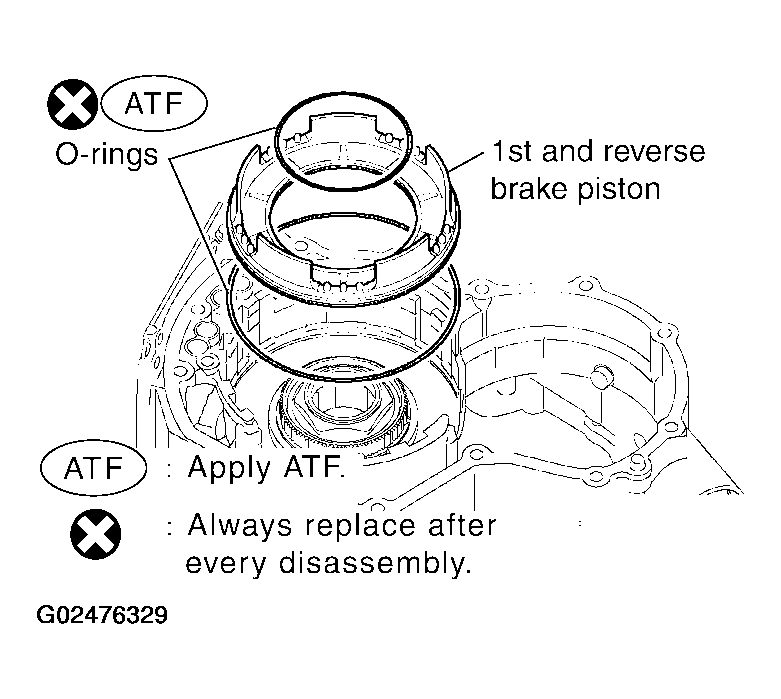

Install O-rings in 1st and reverse brake piston.
CAUTION:
- Do not reuse O-rings.
- Apply ATF to O-rings.
Coat the inner surface of transaxle case with ATF.
Install 1st and reverse brake piston in transaxle case.

Fig 5: Installing 1st & Reverse Brake Piston In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Put return spring on 1st and reverse brake piston.

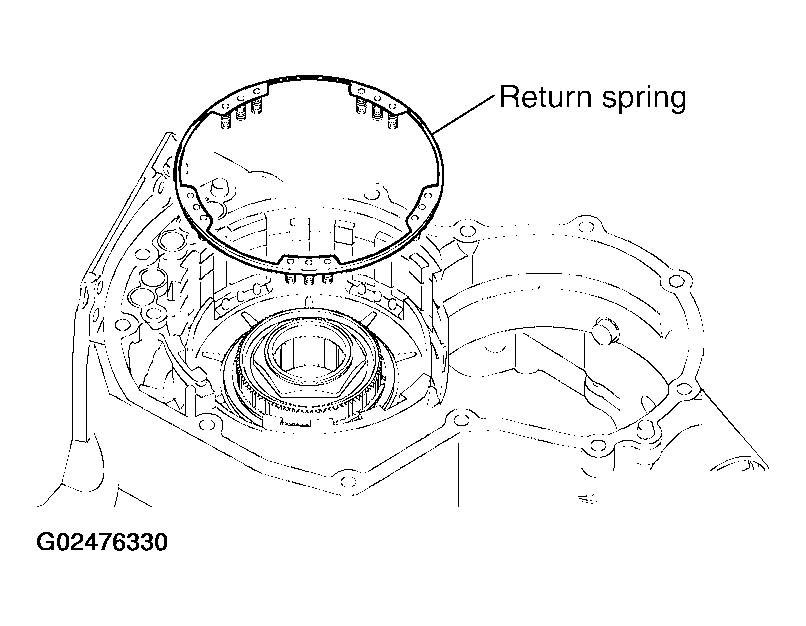

Fig 6: Putting Return Spring On 1st & Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

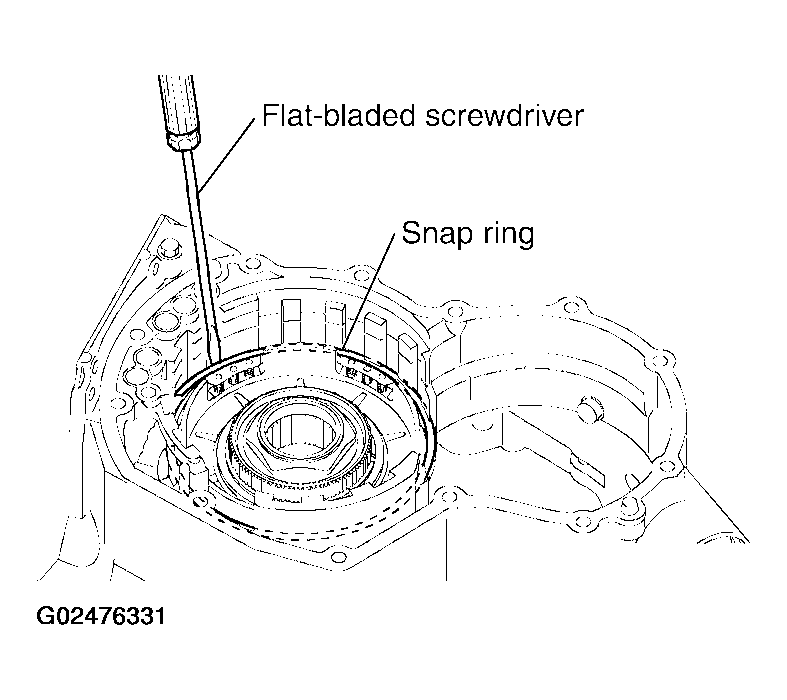

While compressing the return spring by hand, install the snap ring into groove with a flat-bladed screwdriver.

Fig 7: Installing Snap Ring Into Groove
Courtesy of NISSAN MOTOR CO., U.S.A.

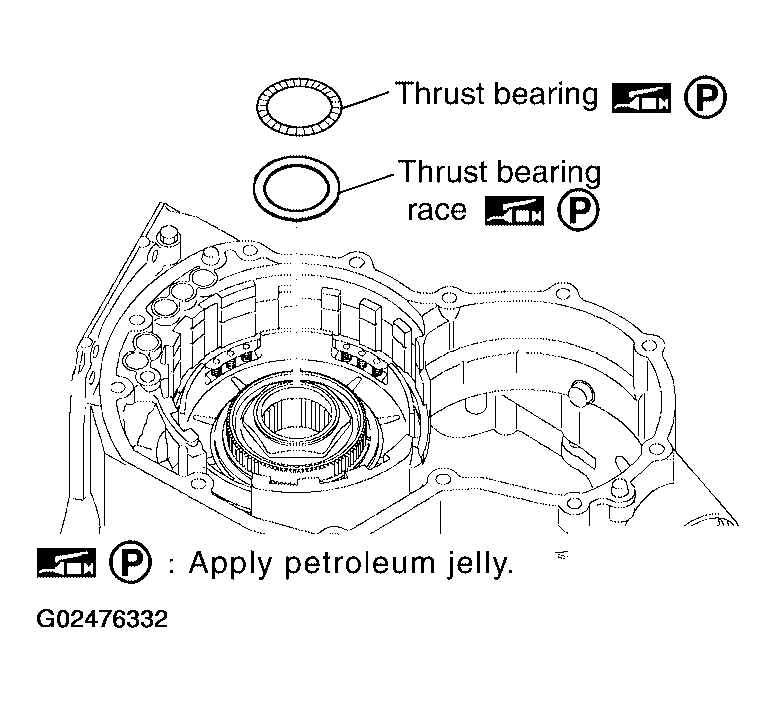

Put thrust bearing race and thrust bearing on counter drive gear sub assembly.
CAUTION: Apply petroleum jelly to thrust bearing and thrust bearing race.

Fig 8: Putting Thrust Bearing Race & Thrust Bearing On Counter Drive Gear Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install FR planetary ring gear assembly with one-way clutch No. 2.

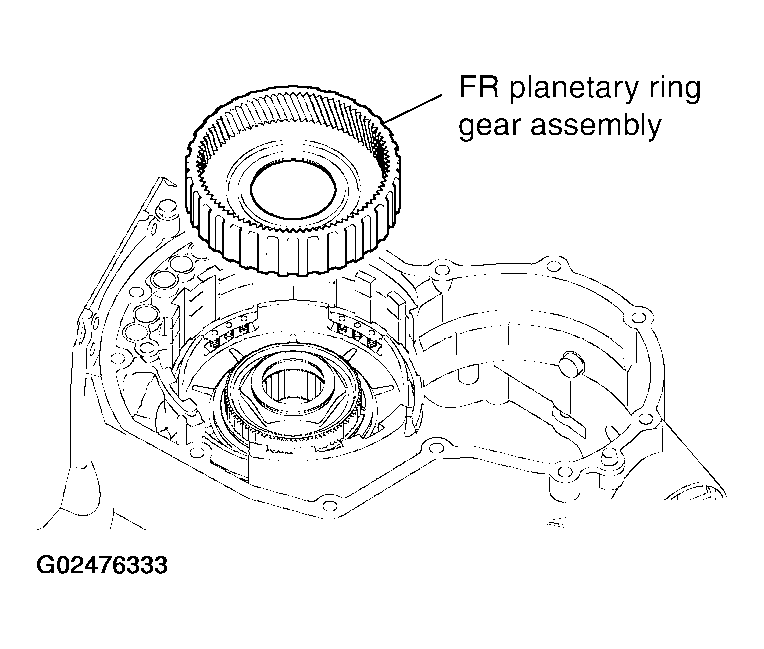

Fig 9: Installing FR Planetary Ring Gear Assembly With One-Way Clutch No. 2
Courtesy of NISSAN MOTOR CO., U.S.A.

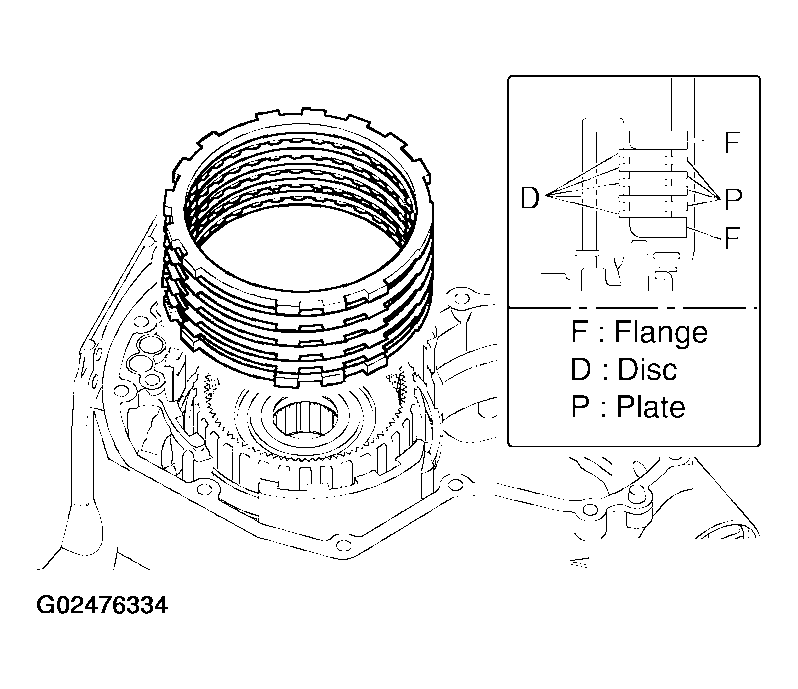

Install 1st and reverse brake flanges, 1st and reverse brake discs and 1st and reverse brake plates.

Fig 10: Installing 1st & Reverse Brake Flanges, 1st & Reverse Brake Discs & 1st & Reverse Brake Plates
Courtesy of NISSAN MOTOR CO., U.S.A.

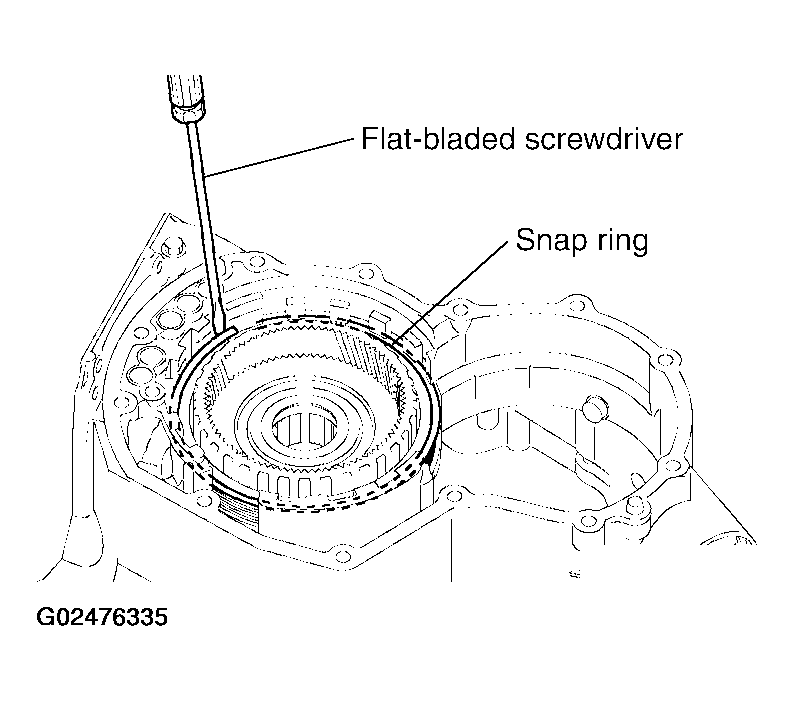

Using a flat-bladed screwdriver and install snap ring.

Fig 11: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Set a dial indicator as shown in Fig 12.
Applying compressed air (4Kg/cm² ) and measure the 1st and reverse brake piston stroke.

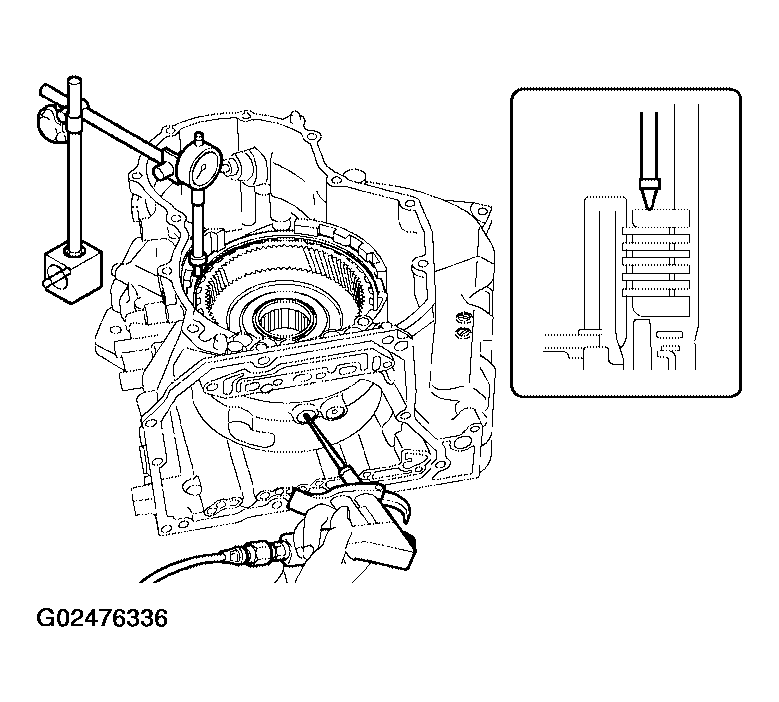

Fig 12: Measuring 1st & Reverse Brake Piston Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
- Piston stroke : 1.39 - 2.21 mm (0.0547 - 0.0870 in)
In a case that is out of reference, check the following items:
- Oil pressure leak
- Damage of O-ring
- Wear damage of discs

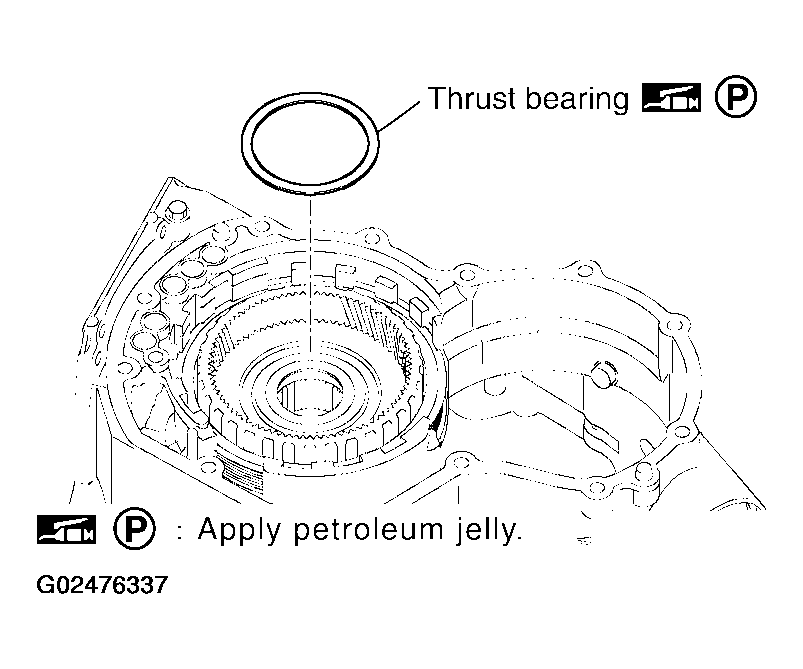

Install thrust bearing.
CAUTION: Apply petroleum jelly to thrust bearing.

Fig 13: Installing Thrust Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

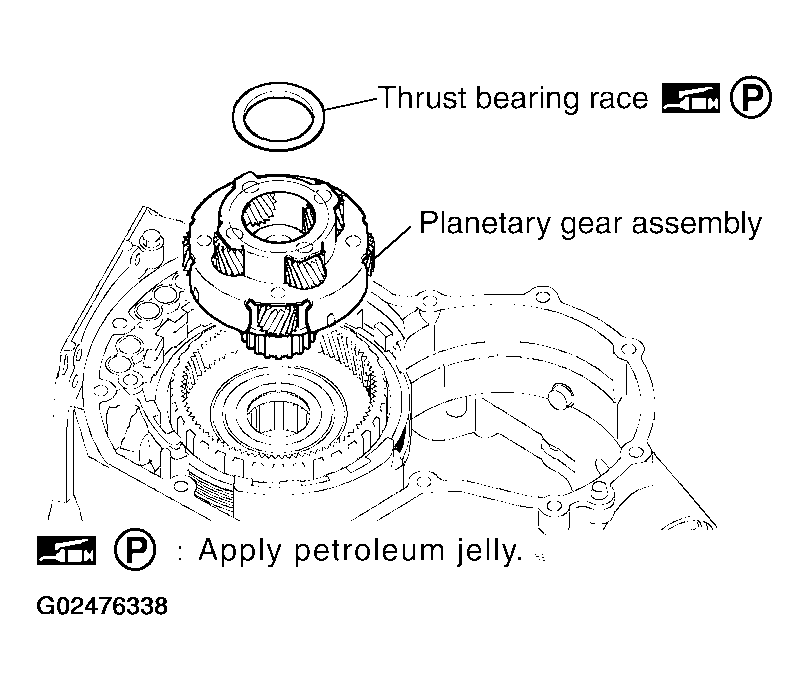

Install planetary gear assembly.
Install thrust bearing race in planetary gear assembly.
CAUTION: Apply petroleum jelly to thrust bearing race.

Fig 14: Installing Planetary Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

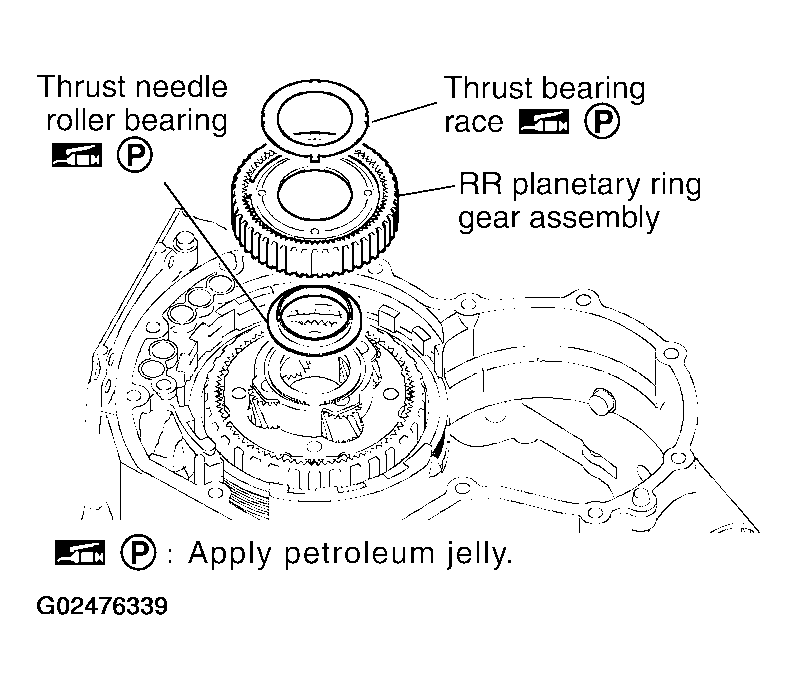

Install thrust needle roller bearing and thrust bearing race in RR planetary ring gear assembly.
CAUTION: Apply petroleum jelly to thrust needle roller bearing and thrust bearing race.
Install RR planetary ring gear assembly.

Fig 15: Installing RR Planetary Ring Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

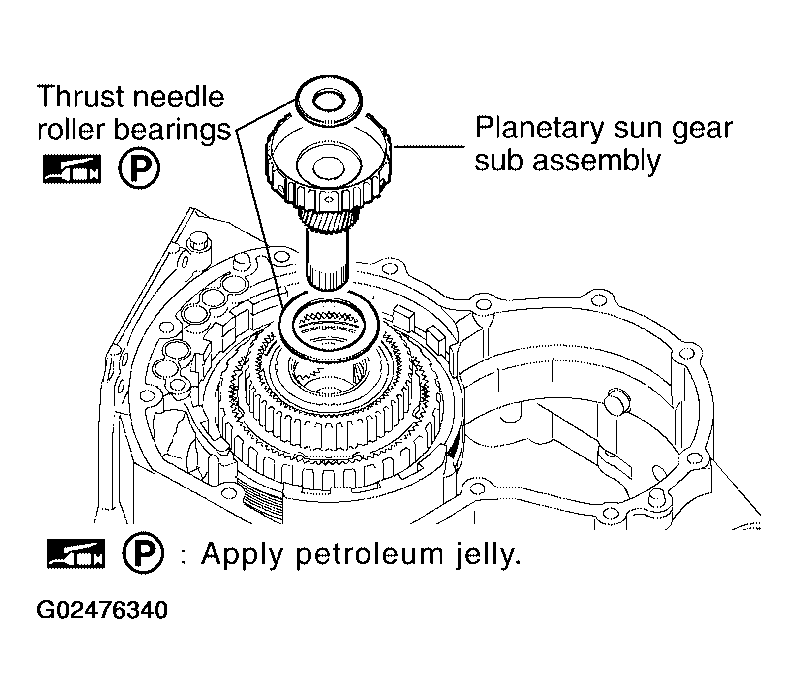

Install planetary sun gear sub assembly and thrust needle roller bearings.
CAUTION: Apply petroleum jelly to thrust needle roller bearings.

Fig 16: Installing Planetary Sun Gear Sub Assembly & Thrust Needle Roller Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install forward and direct clutch assembly.

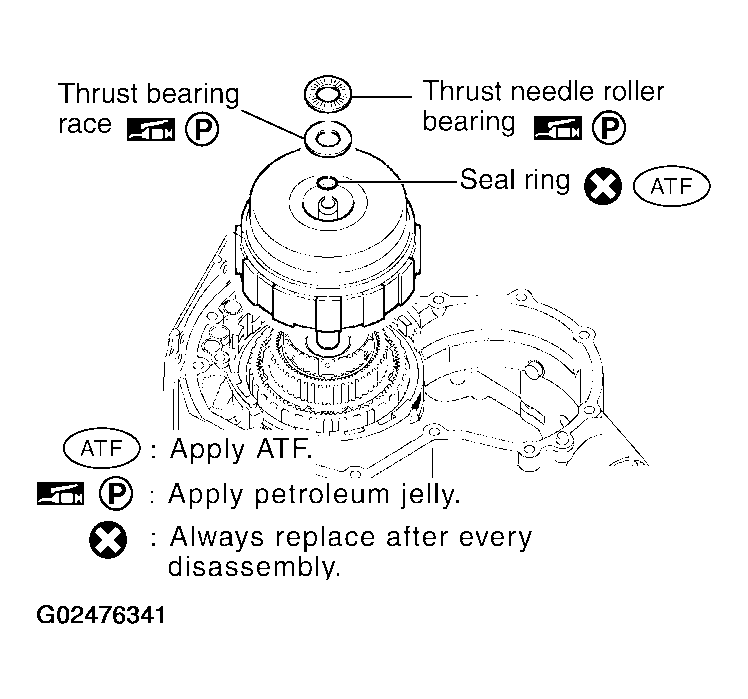

Install thrust bearing race, thrust needle roller bearing and seal ring in forward and direct clutch assembly.

Fig 17: Installing Thrust Bearing Race, Thrust Needle Roller Bearing & Seal Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Apply petroleum jelly to thrust needle roller bearing and thrust bearing race.
- Apply ATF to seal ring.
- Do not reuse seal ring.
Check the distance of "A".

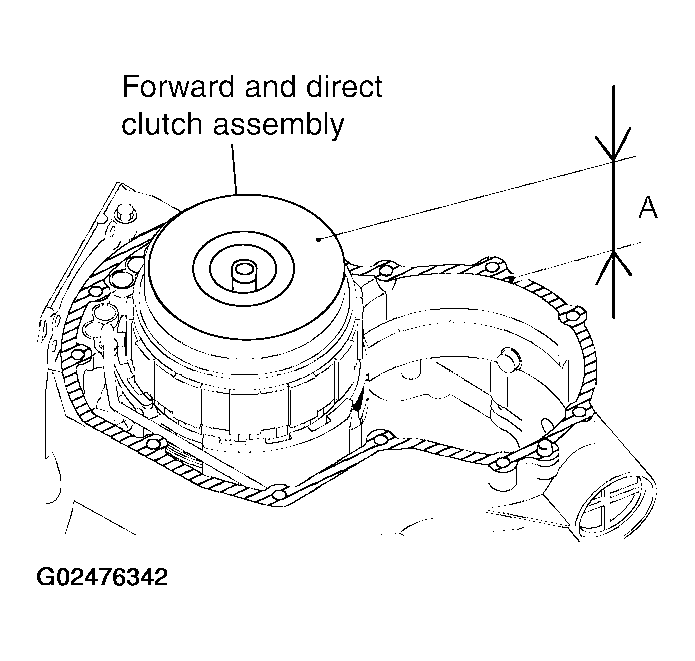

Fig 18: Checking Distance Of "A" - Forward And Direct Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
- "A": 50.850 - 51.825 mm (2.0020 - 2.0404 in)
CAUTION: If the distance is out of standards, adjust with in standards again.

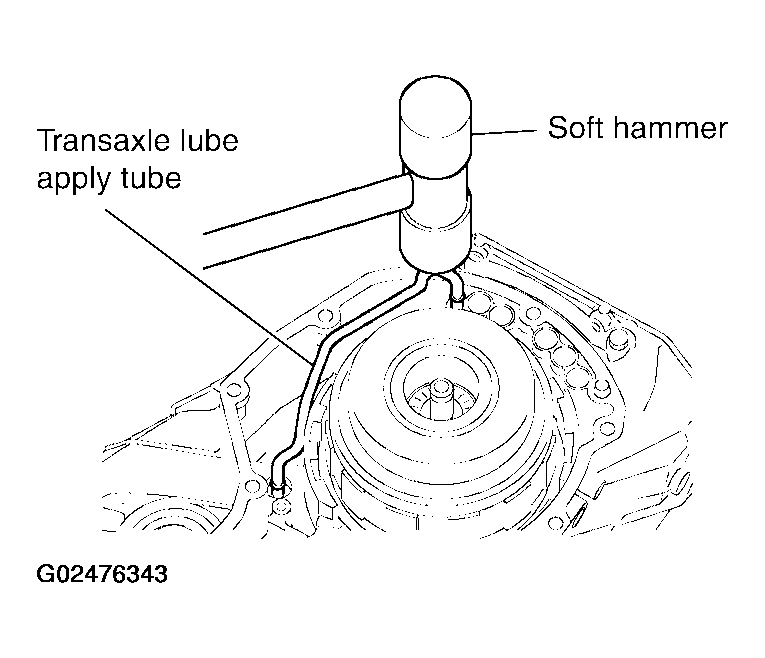

Using a soft hammer and install transaxle lube apply tube.
CAUTION: Be careful not to bend and damage transaxle lube apply tube.

Fig 19: Installing Transaxle Lube Apply Tube
Courtesy of NISSAN MOTOR CO., U.S.A.

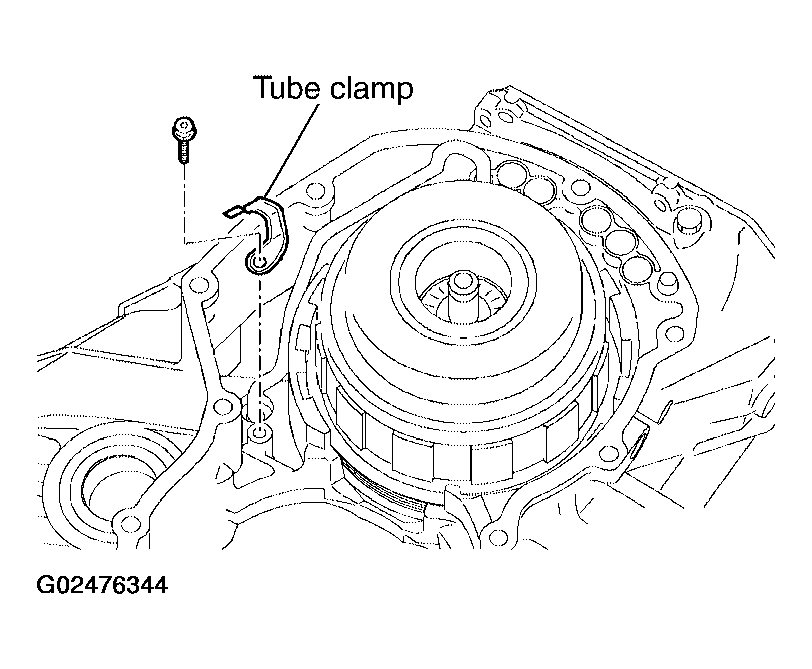

Tighten tube clamp fixing bolt to specified torque. Refer to COMPONENTS .

Fig 20: Installing Tube Clamp Fixing Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

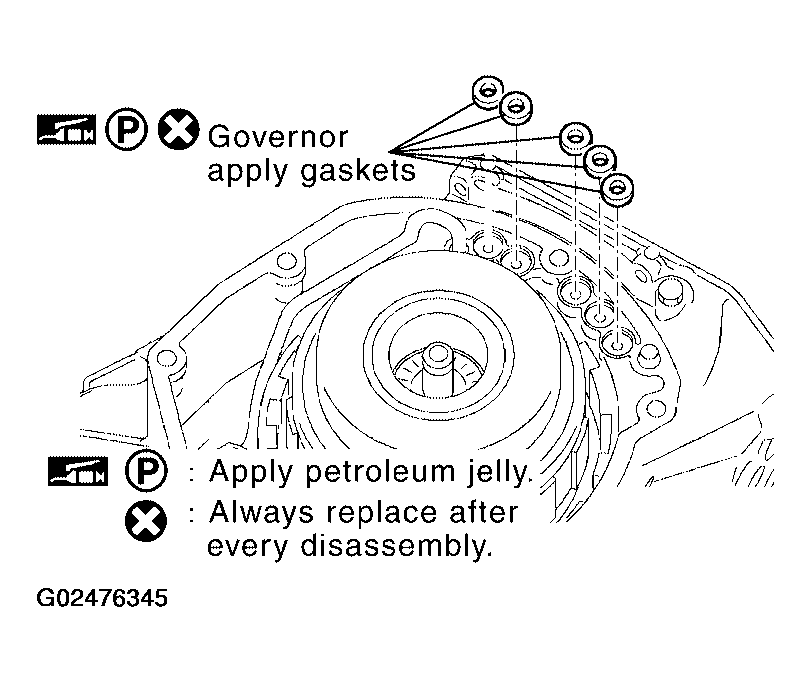

Install governor apply gaskets in transaxle case.

Fig 21: Installing Governor Apply Gaskets In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse governor apply gaskets.
- Apply petroleum jelly to governor apply gaskets.

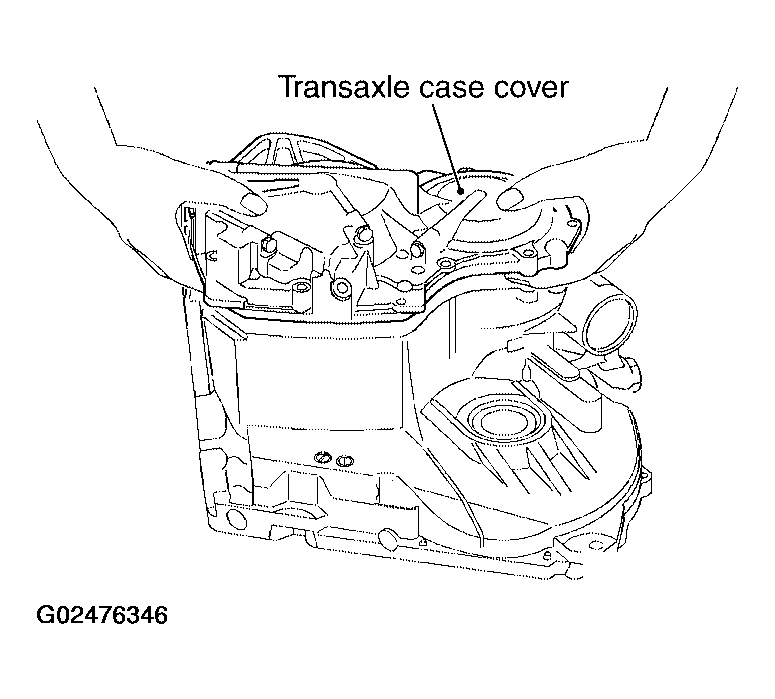

Install transaxle case cover in transaxle case.

Fig 22: Installing Transaxle Case Cover In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten transaxle case cover bolts to specified torque. Refer to COMPONENTS .

CAUTION: Use old seal bolts when checking and adjusting the end play because of re-installing transaxle case cover.

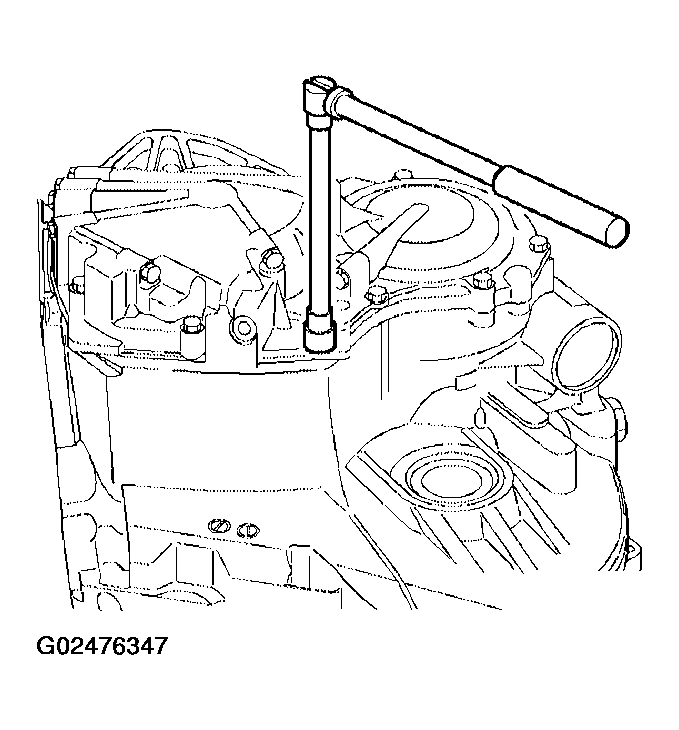

Fig 23: Tightening Transaxle Case Cover Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

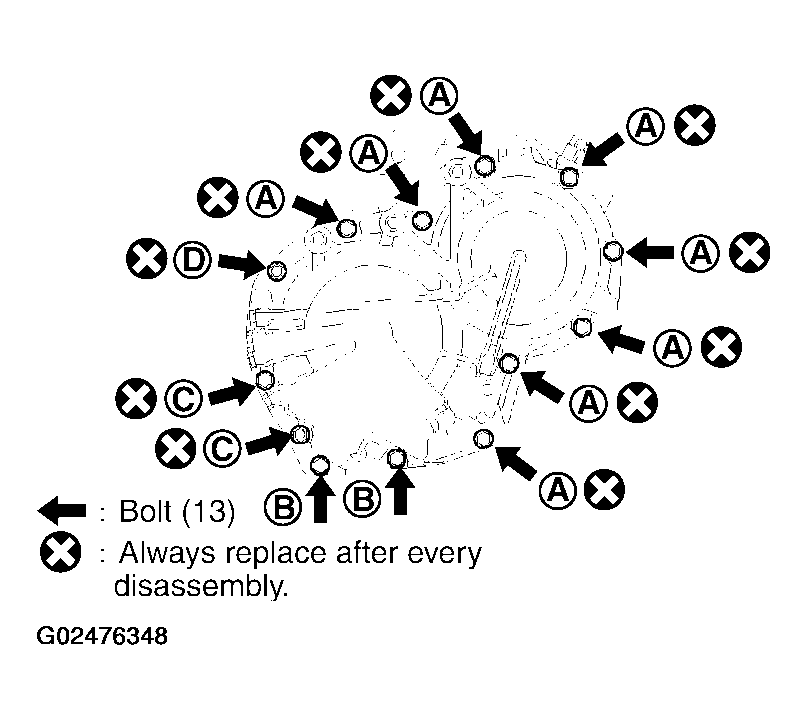

Fig 24: Identifying Tightening Sequence Of Transaxle Case Cover Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

TRANSAXLE CASE COVER BOLT IDENTIFICATION

Bolt symbol

Length mm (in)

Number of bolts

30 (1.18)

45 (1.77)

48 (1.89)

D⁽¹⁾

⁽¹⁾

Stud bolt

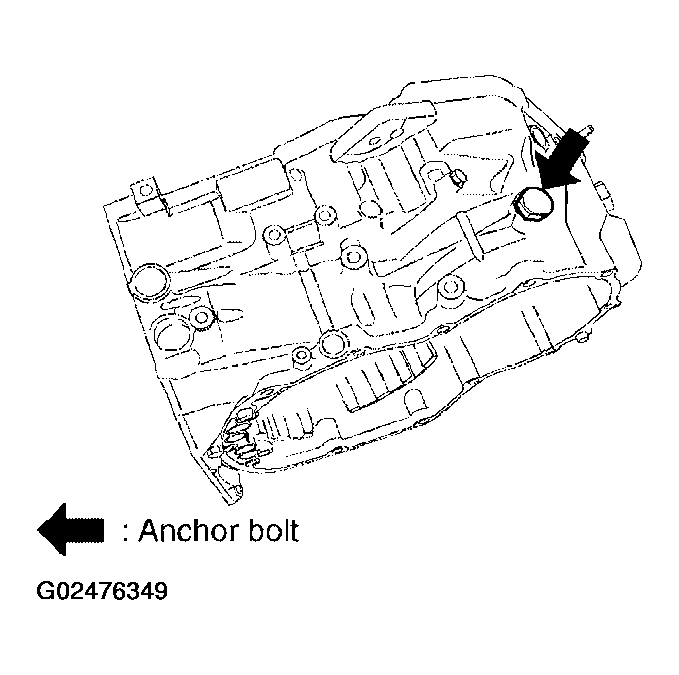

Tighten anchor bolt to specified torque. Refer to COMPONENTS .
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 25: Tightening Anchor Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring in U/D brake piston assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Coat the inner surface of transaxle case with ATF.
Install compression spring and U/D brake piston assembly.

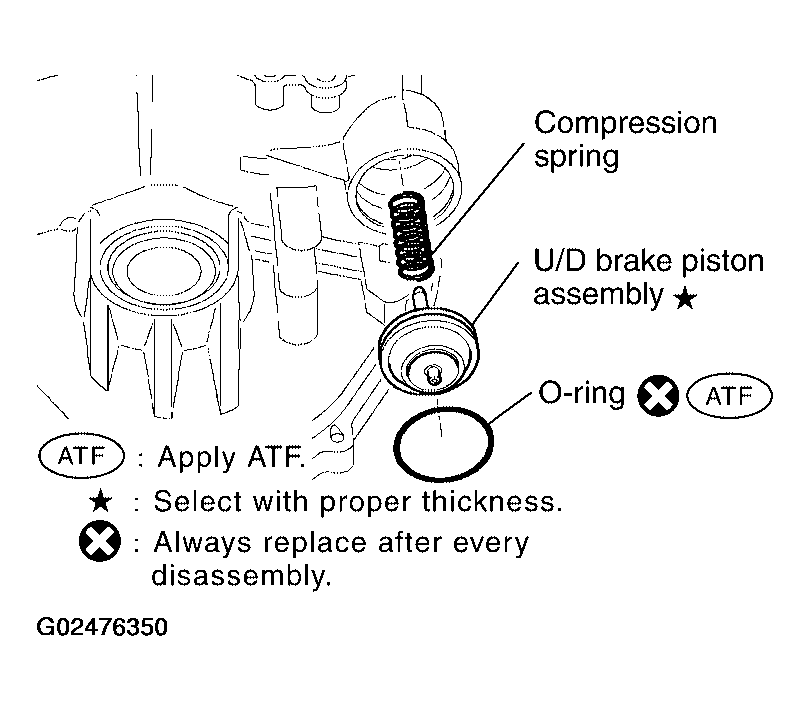

Fig 26: Installing Compression Spring & U/D Brake Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings in U/D brake damper assembly.
CAUTION:
- Do not reuse O-rings.
- Apply ATF to O-rings.

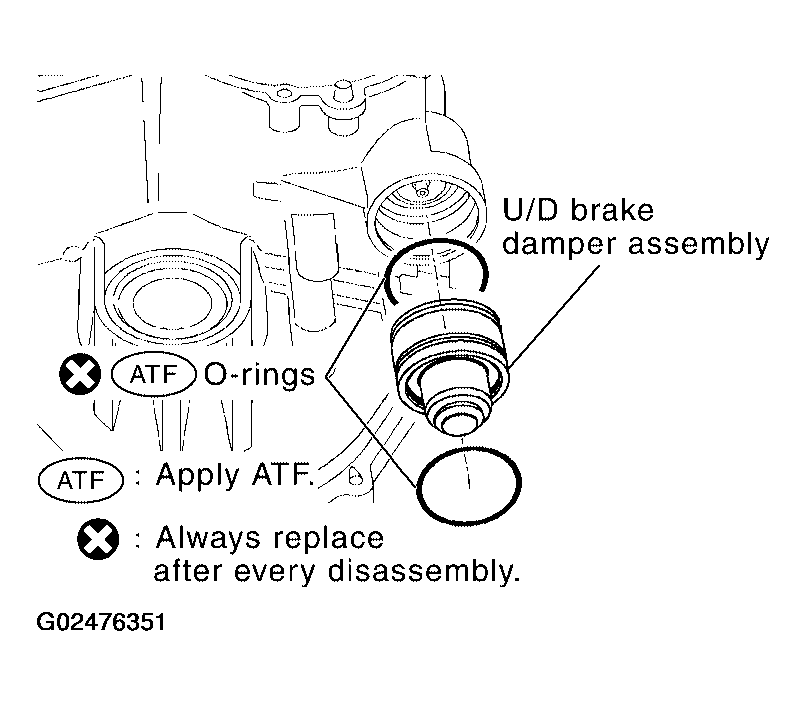

Install U/D brake damper assembly.

Fig 27: Installing U/D Brake Damper Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a snap ring pliers and install snap ring.
CAUTION: If the snap ring is deformed, replace it.

Fig 28: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

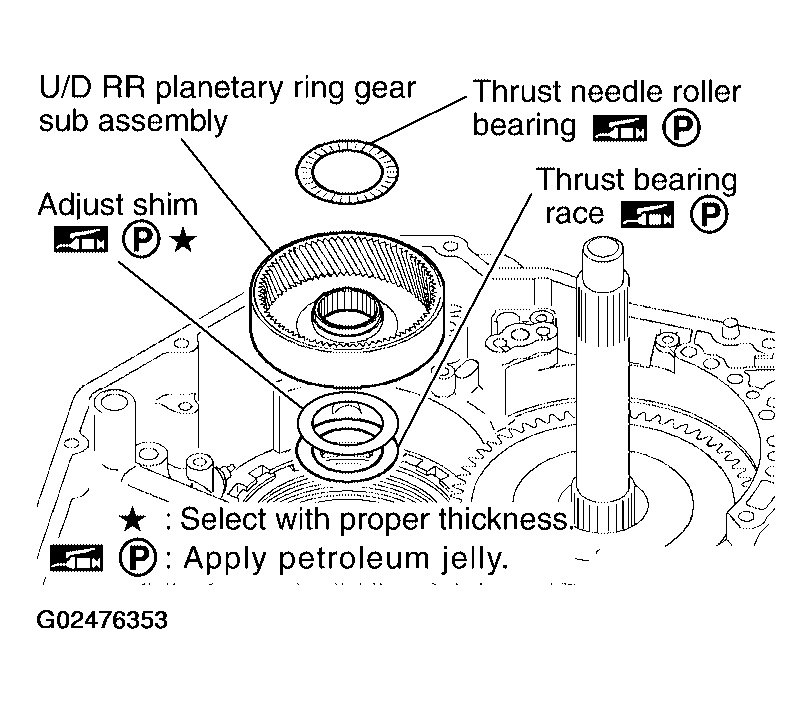

Install thrust needle roller bearing, adjust shim and thrust bearing race in U/D RR planetary ring gear sub assembly.
CAUTION: Apply petroleum jelly to adjust shim, thrust needle roller bearing and thrust bearing race.
Install U/D RR planetary ring gear sub assembly.

Fig 29: Installing U/D RR Planetary Ring Gear Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

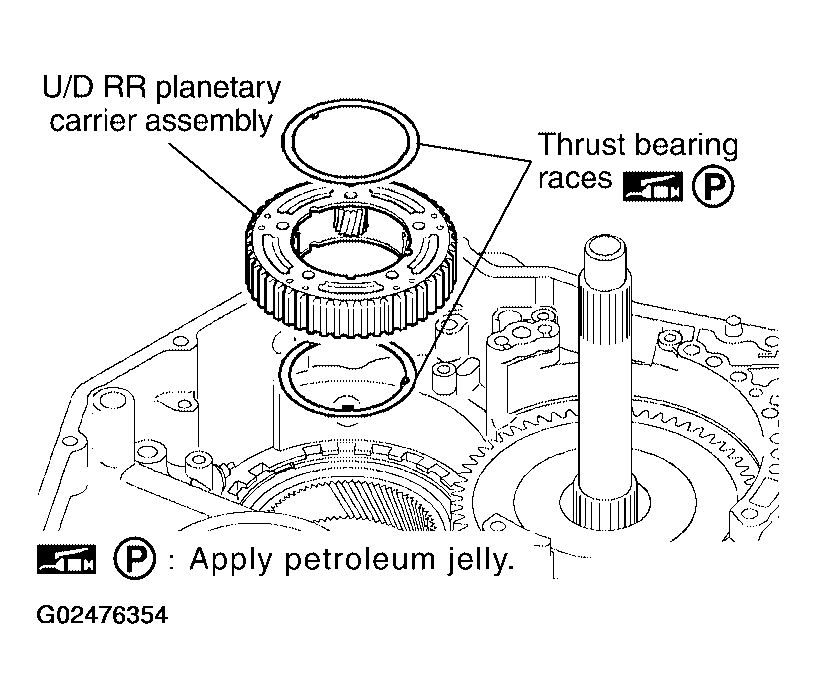

Install U/D RR planetary carrier assembly and thrust bearing races.
CAUTION: Apply petroleum jelly to thrust bearing races.

Fig 30: Installing U/D RR Planetary Carrier Assembly & Thrust Bearing Races
Courtesy of NISSAN MOTOR CO., U.S.A.

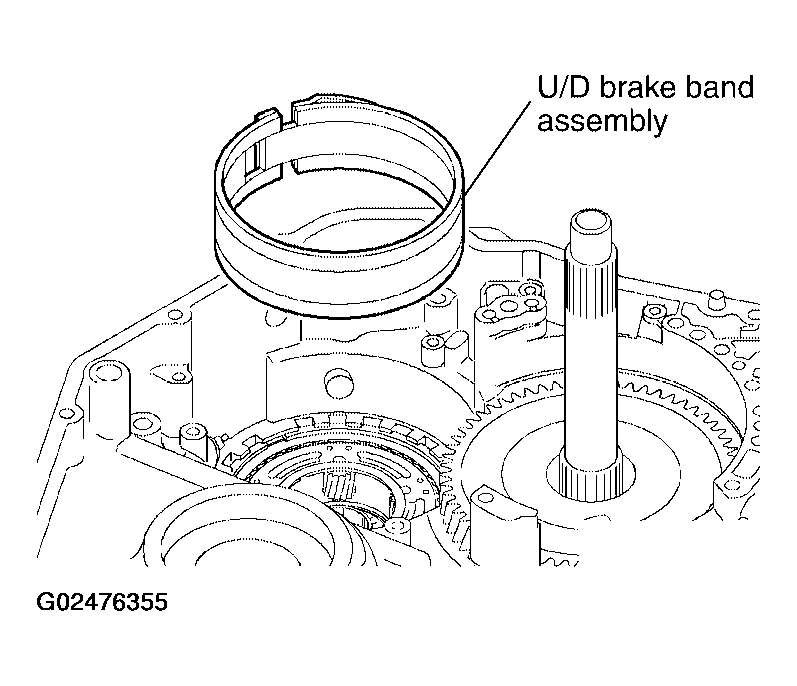

Install U/D brake band assembly.

Fig 31: Installing U/D Brake Band Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

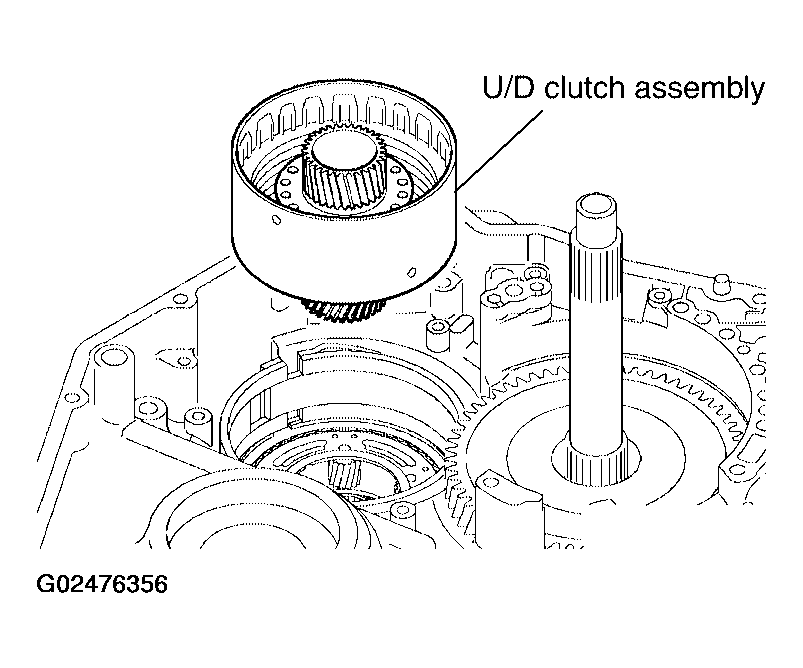

Install U/D clutch assembly.

Fig 32: Installing U/D Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure the U/D brake piston stroke applying and releasing the compressed air (4Kg/cm² ) as shown in Fig 33.
CAUTION: Measure U/D brake piston stroke after assembling U/D clutch assembly.
- Piston Stroke : 5.76 - 6.76 mm (0.2268 - 0.2661 in)
Fig 33: Measuring U/D Brake Piston Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.

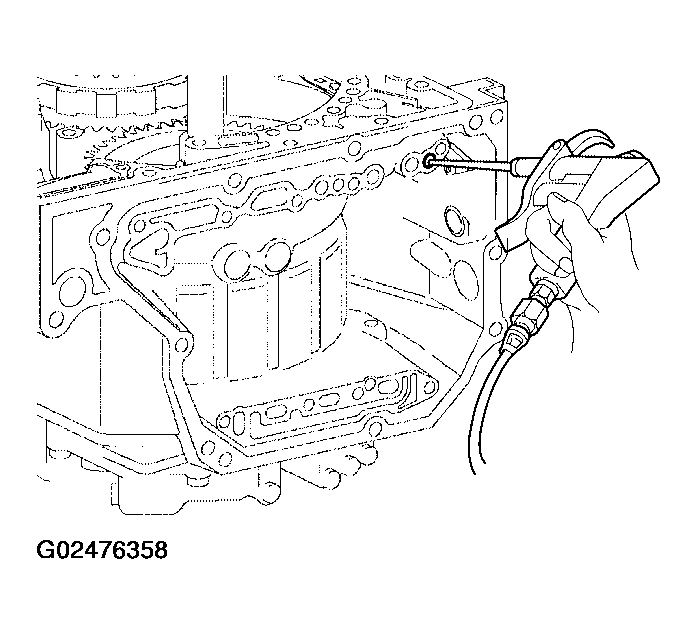

Fig 34: Releasing Compressed Air
Courtesy of NISSAN MOTOR CO., U.S.A.
If the piston stroke is out of standards, select another U/D brake piston. Refer to U/D BRAKE .

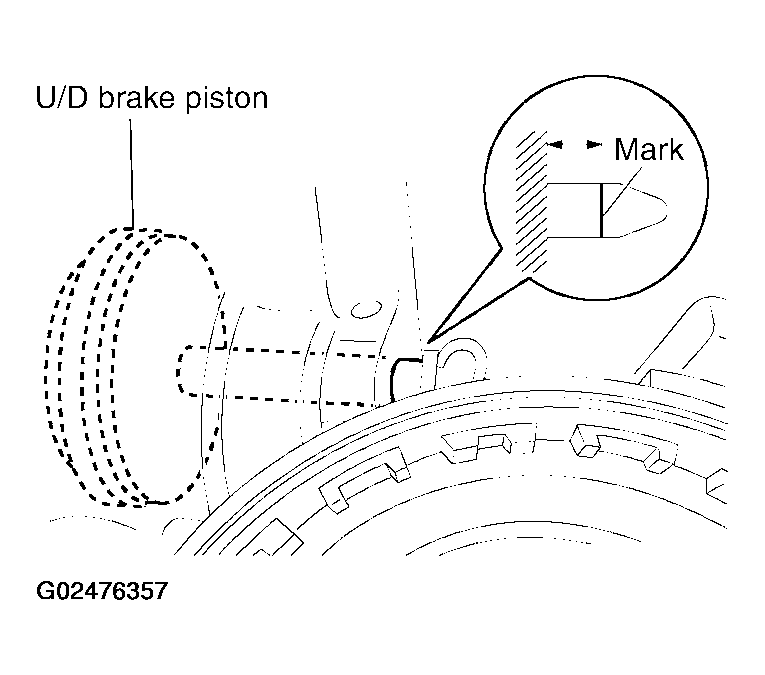

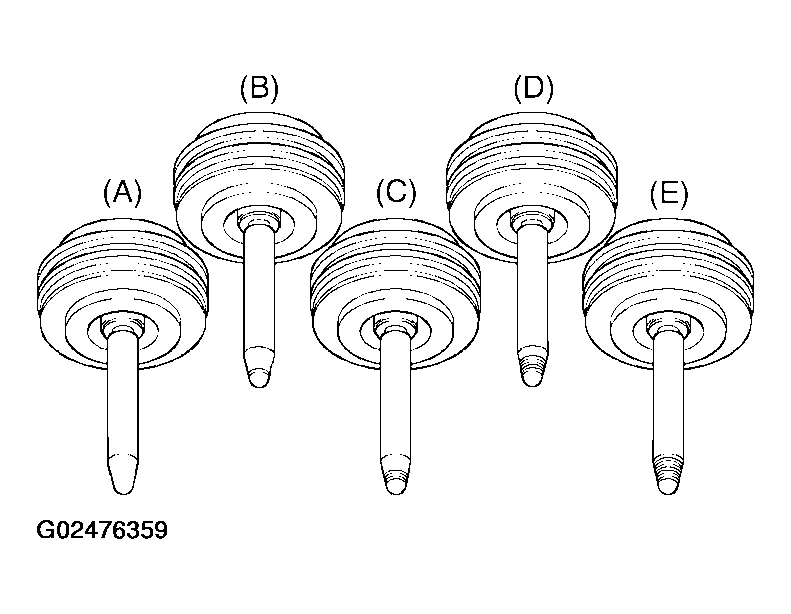

Fig 35: Identifying Another U/D Brake Pistons
Courtesy of NISSAN MOTOR CO., U.S.A.
