Adjust Preload Of Tapered Roller Bearing

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install adjust shim and outer race in transaxle case.

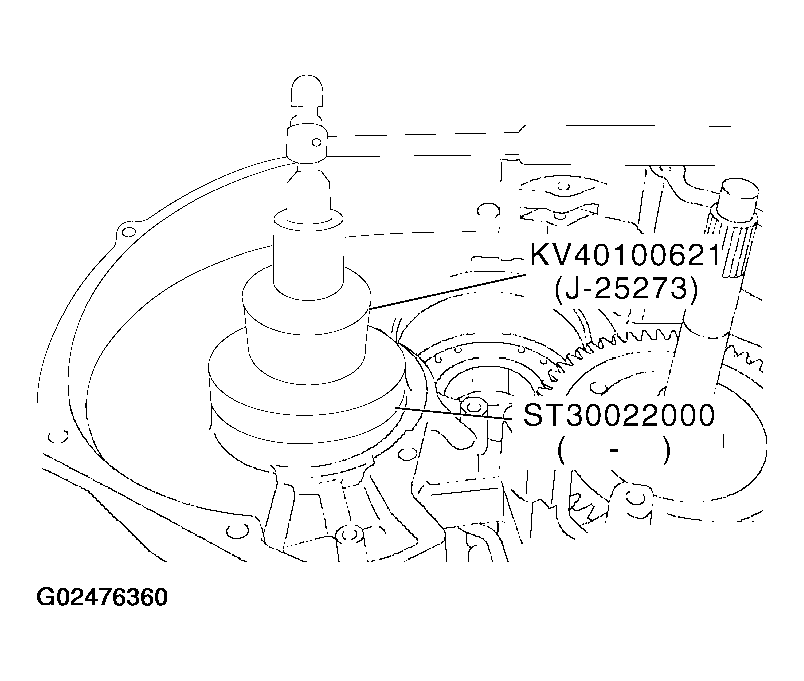

Fig 1: Installing Adjust Shim & Outer Race In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential gear assembly in transaxle case.
Install transaxle housing into transaxle case.

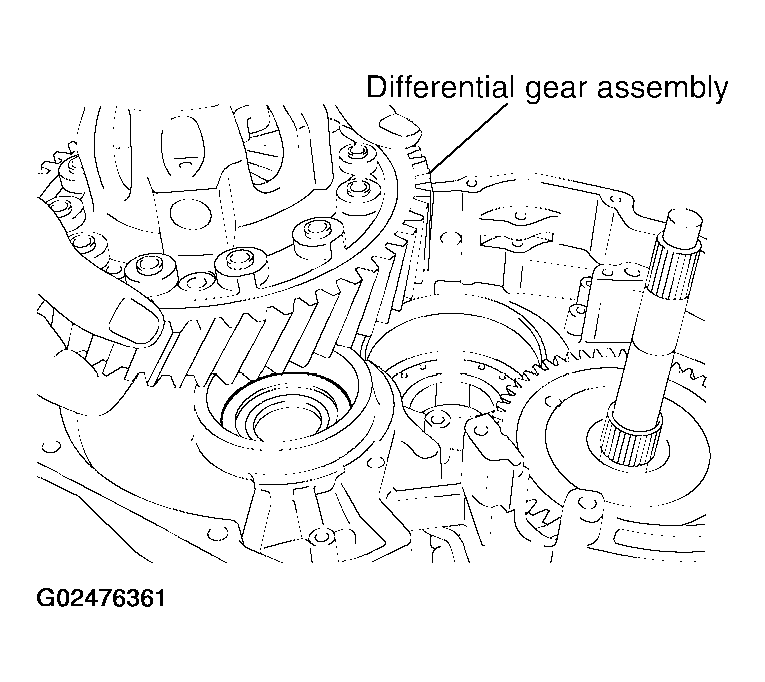

Fig 2: Installing Differential Gear Assembly In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten transaxle housing and transaxle case bolts to specified torque. Refer to COMPONENTS .

CAUTION: Use old seal bolts when checking and adjusting and preload because of re-installing transaxle housing.

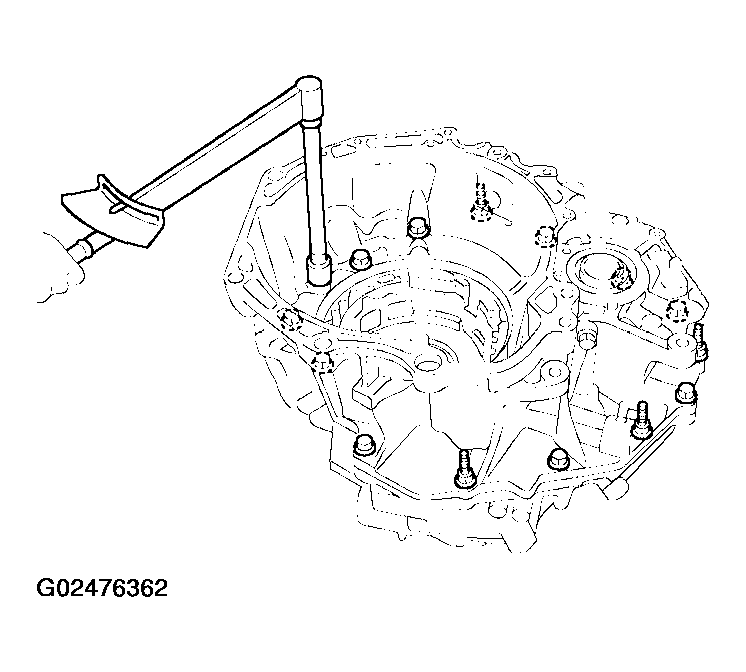

Fig 3: Tightening Transaxle Housing & Transaxle Case Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

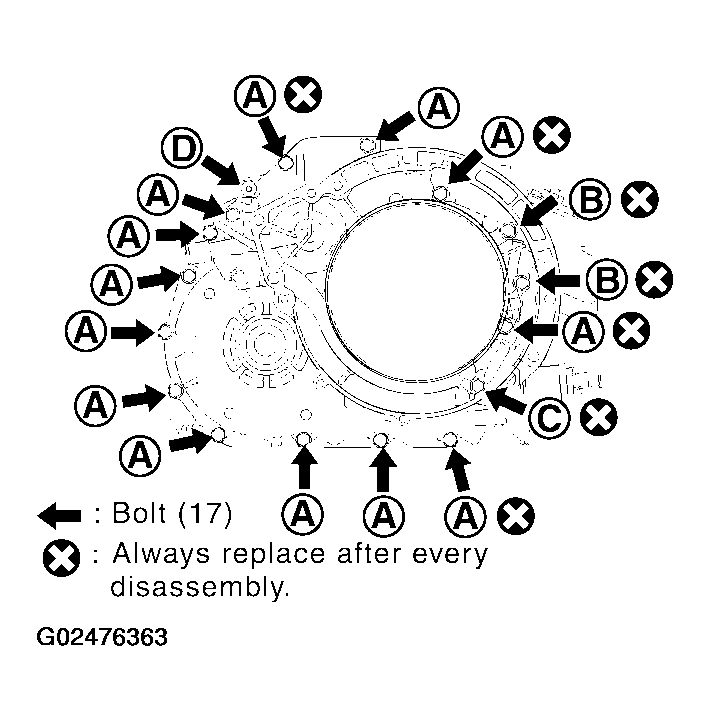

Fig 4: Identifying Tightening Sequence Of Transaxle Housing & Transaxle Case Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

TRANSAXLE HOUSING & TRANSAXLE CASE BOLT IDENTIFICATION

Bolt symbol

Length mm (in)

Number of bolts

30(1.18)

35 (1.38)

45 (1.77)

D⁽¹⁾

⁽¹⁾

Torx bolt

Insert Tool and measure turning torque of differential gear assembly.
Turn differential gear assembly in both directions several times to seat bearing rollers correctly.

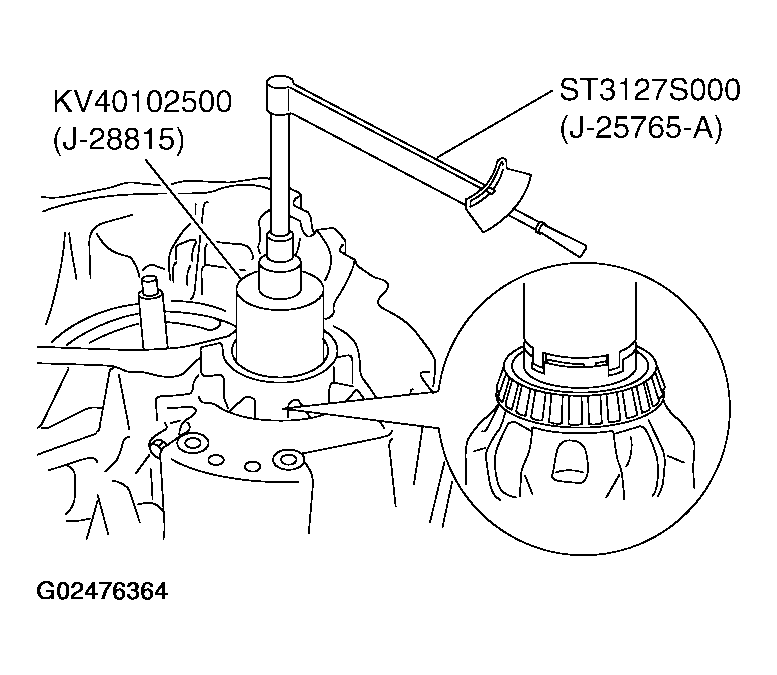

Fig 5: Measuring Turning Torque Of Differential Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
- Turning torque :0.7 - 1.2 N.m
- (New bearing) (0.08 - 0.12kg-m, 7 -10 in-lb)
If the preload is not within specification, remove differential gear assembly from transaxle case. Re-select adjust shim. Refer to DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS .
