Diagnostic Procedure

SYMPTOM 1:

• Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
• Selector lever can be moved from "P" position with key in ON position and brake pedal released.
• Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2:

• Ignition key cannot be removed when selector lever is set to "P" position.
• Ignition key can be removed when selector lever is set to any position except "P".

1. CHECK KEY INTERLOCK CABLE

   Check the key interlock cable for damage.

   OK or NG

   • OK : GO TO 2.
   • NG : Repair key interlock cable. Refer to KEY INTERLOCK CABLE .
2. CHECK SELECTOR LEVER POSITION

   Check the selector lever position for damage.

   OK or NG

   • OK : GO TO 3.
   • NG : Check selector lever. Refer to CONTROL CABLE ADJUSTMENT .
3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
   1. Connect A/T device harness connector.
   2. Turn ignition switch "ON".
   3. Selector lever is set in "P" position.
   4. Check operation sound.

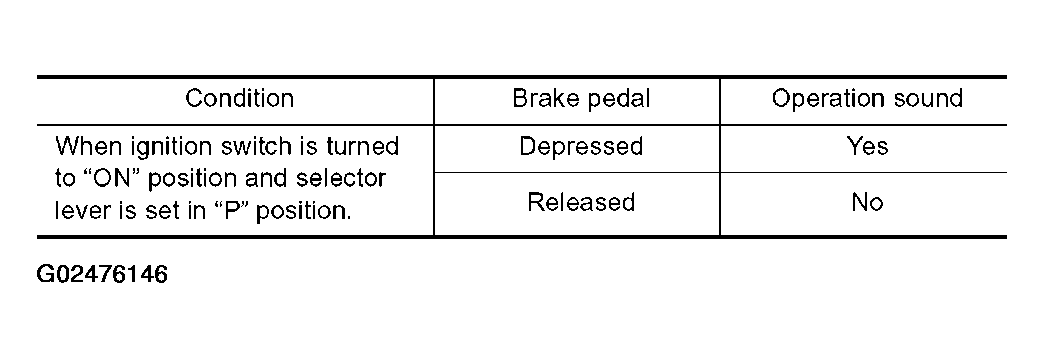

      Fig 1: A/T Device Operation Chart

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   • OK : INSPECTION END
   • NG : GO TO 4.
4. CHECK POWER SOURCE
   1. Turn ignition switch "ON". (Do not start engine.)
   2. Check the voltage between A/T device harness connector M34 terminal 5 (R) and ground.

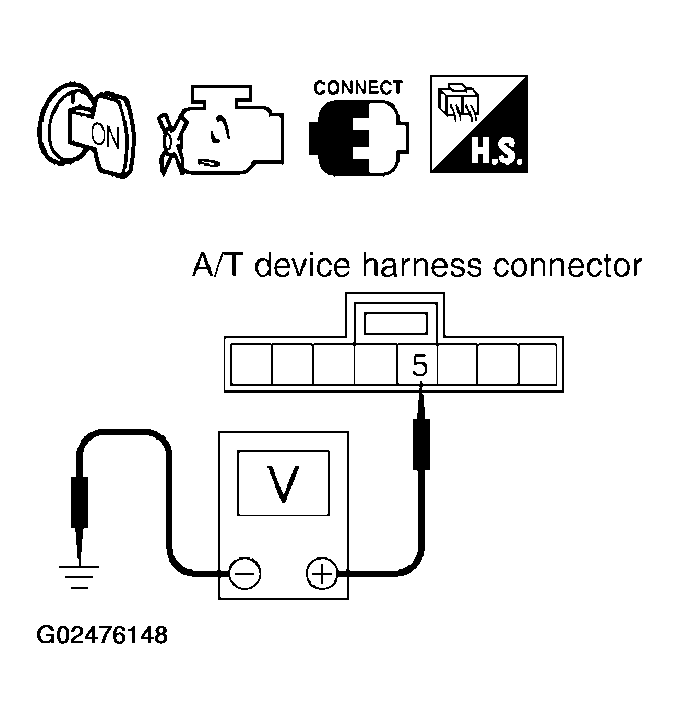

      Fig 2: Checking Voltage Between A/T Device Harness Connector M34 Terminal 5 (R) & Ground

      Courtesy of NISSAN MOTOR CO., U.S.A.

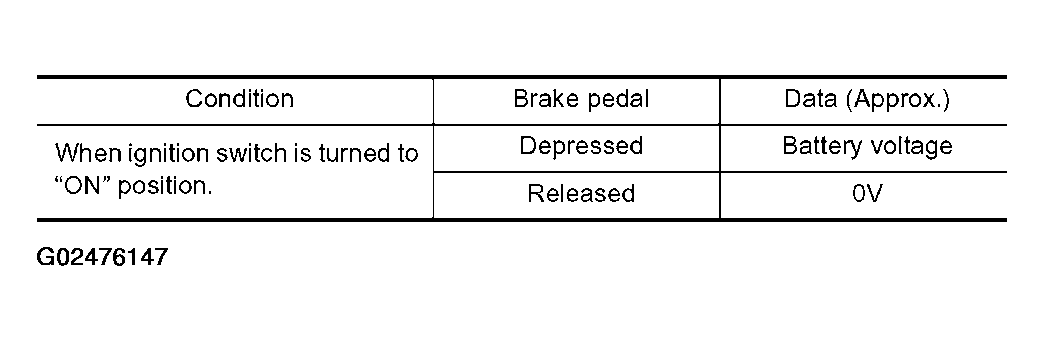

      Fig 3: A/T Device Terminal Voltage Reference Chart

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   • OK : GO TO  7.
   • NG : GO TO 5.
5. CHECK STOP LAMP SWITCH
   1. Turn ignition switch "OFF".
   2. Disconnect stop lamp switch harness connector.
   3. Check continuity between stop lamp switch harness connector E38 terminals 3 and 4.

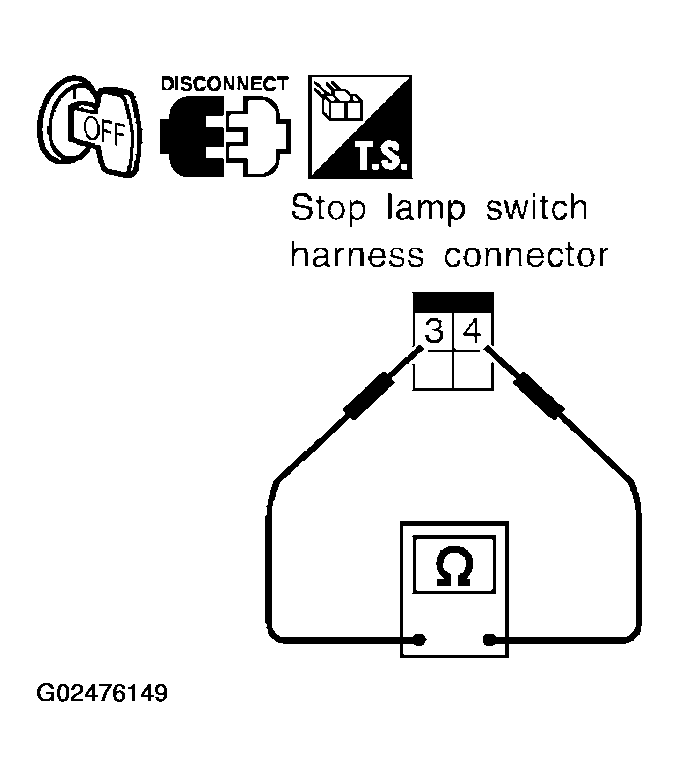

      Fig 4: Checking Continuity Between Stop Lamp Switch Harness Connector E38 Terminals 3 & 4

      Courtesy of NISSAN MOTOR CO., U.S.A.
      TERMINALS CONTINUITY - STOP LAMP SWITCH HARNESS CONNECTOR E38 TERMINALS 3 & 4



      Condition	Continuity
      When brake pedal is depressed	Yes
      When brake pedal is released	No

   Check stop lamp switch after adjusting brake pedal - refer to BRAKE PEDAL .

   OK or NG

   • OK : GO TO 6.
   • NG : Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM

   Check the following items. If any items are damaged, repair or replace damaged parts.

   • 10A fuse [No. 1, located in the fuse block (J/B)]
   • Harness for short or open between ignition switch and stop lamp switch harness connector E38 terminal 3 (R/W)
   • Harness for short or open between stop lamp switch harness connector E38 terminal 4 (L) and diode-4 harness connector E149 terminal 2 (L).
   • Harness for short or open between diode-4 harness connector E149 terminal 1 (R) and A/T device harness connector M34 terminal 5 (R).
   • Diode-4
   • Ignition switch (Refer to POWER SUPPLY ROUTING CIRCUIT ).

   OK or NG

   • OK : GO TO 7.
   • NG : Repair or replace damaged parts.
7. CHECK GROUND CIRCUIT
   1. Turn ignition switch "OFF".
   2. Disconnect A/T device harness connector.
   3. Check continuity between A/T device harness connector M34 terminal 6 (B) and ground.

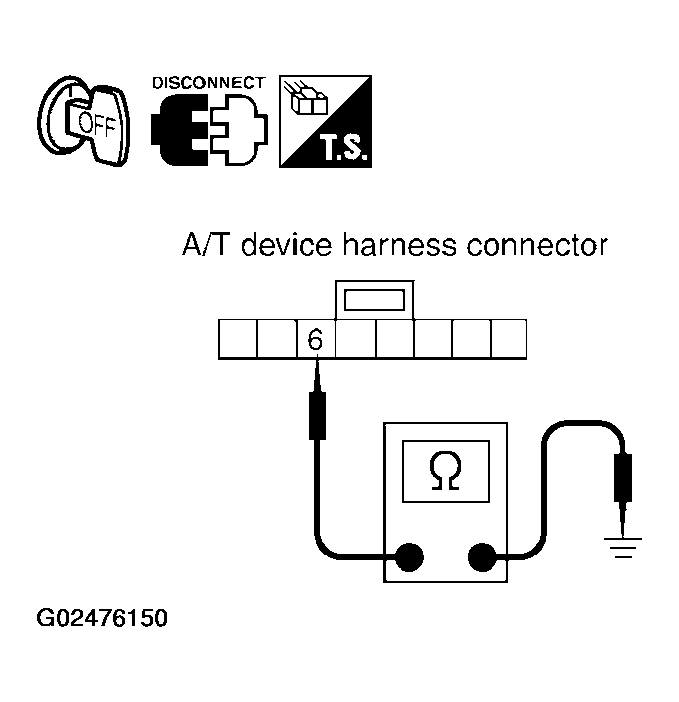

      Fig 5: Checking Continuity Between A/T Device Harness Connector M34 Terminal 6 (B) & Ground

      Courtesy of NISSAN MOTOR CO., U.S.A.
      • Continuity should exist.
   4. Connect A/T device harness connector.

   OK or NG

   • OK : Replace shift lock solenoid or park position switch.
   • NG : Repair open circuit or short to ground or short to power in harness or connectors.
