Input/Output Signal of TCM

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

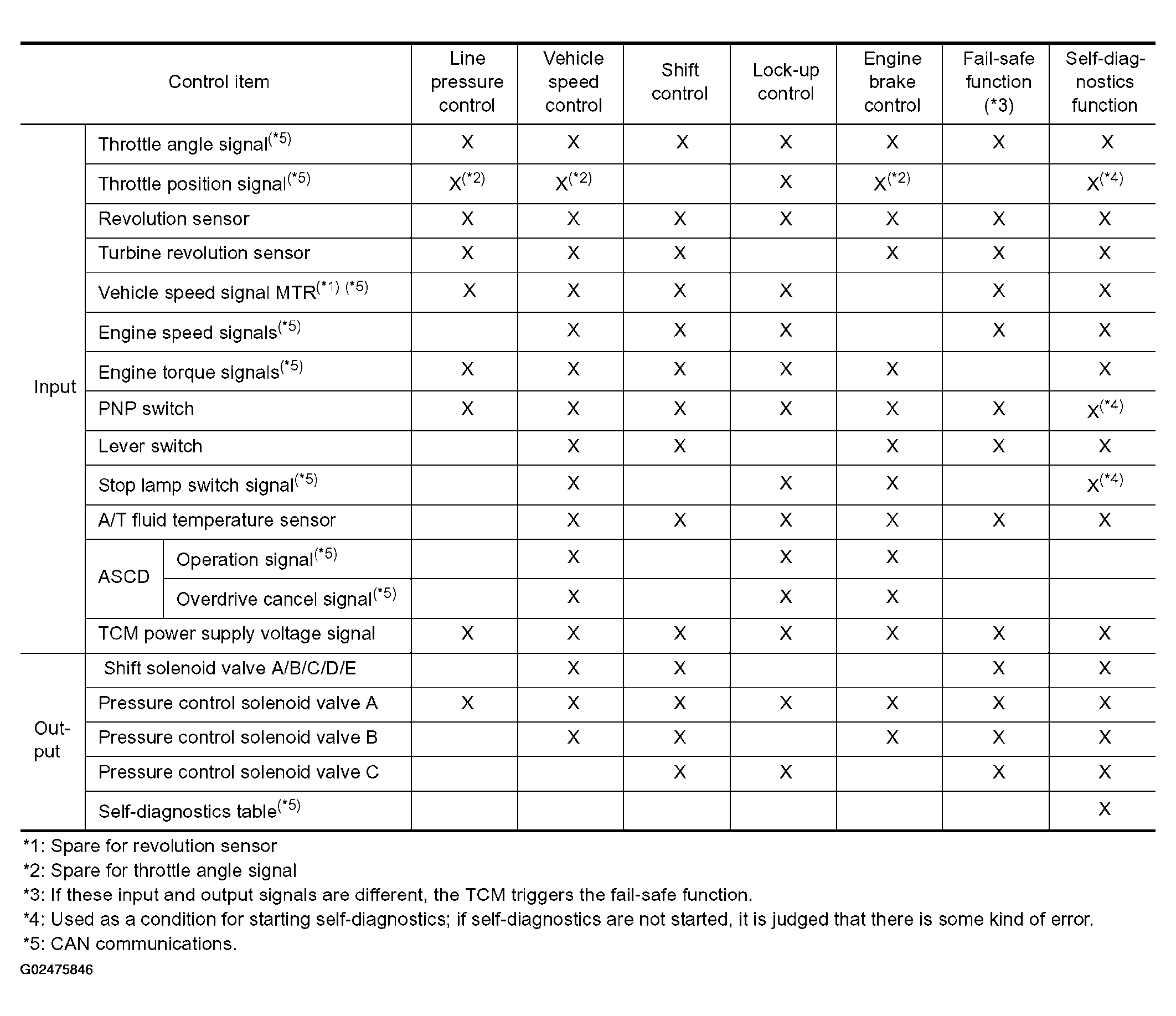

Fig 1: Input/Output Signals Of TCM
G02475846Courtesy of NISSAN MOTOR CO., U.S.A.
