Timing Chain: Inspection

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check for cracks and excessive wear at roller links. Replace if necessary.

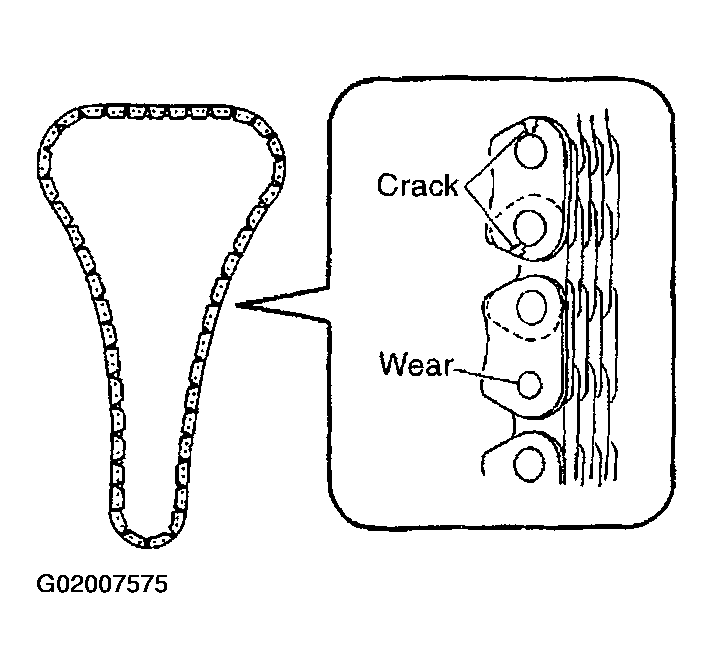

Fig 1: Inspecting Chain

Courtesy of NISSAN MOTOR CO., U.S.A.
