Piston Pin

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

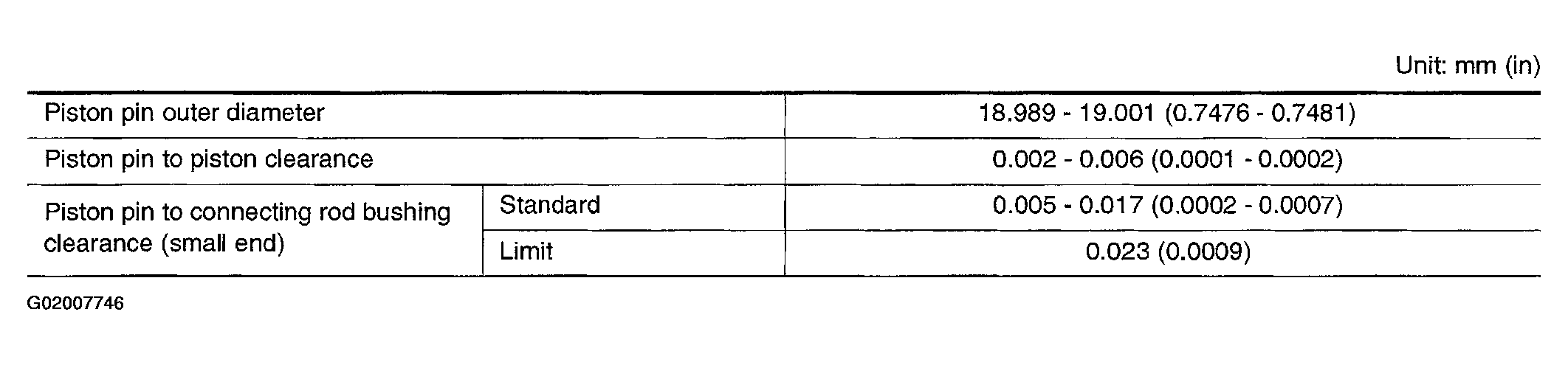

Fig 1: Piston Pin Specification Table
G02007746Courtesy of NISSAN MOTOR CO., U.S.A.
