General Specifications

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
General Specifications Table

Engine QG18DE
Classification Gasoline
Cylinder arrangement 4, in-line
Displacement cm3 (cu in) 1,769 (107.94)
Bore x stroke mm (in) 80.0 x 88.0 (3.150 x 3.465)
Valve arrangement DOHC
Firing order 1-3-4-2
Number of piston rings Compression 2
Oil 1
Number of main bearings 5
Compression ratio 9.5

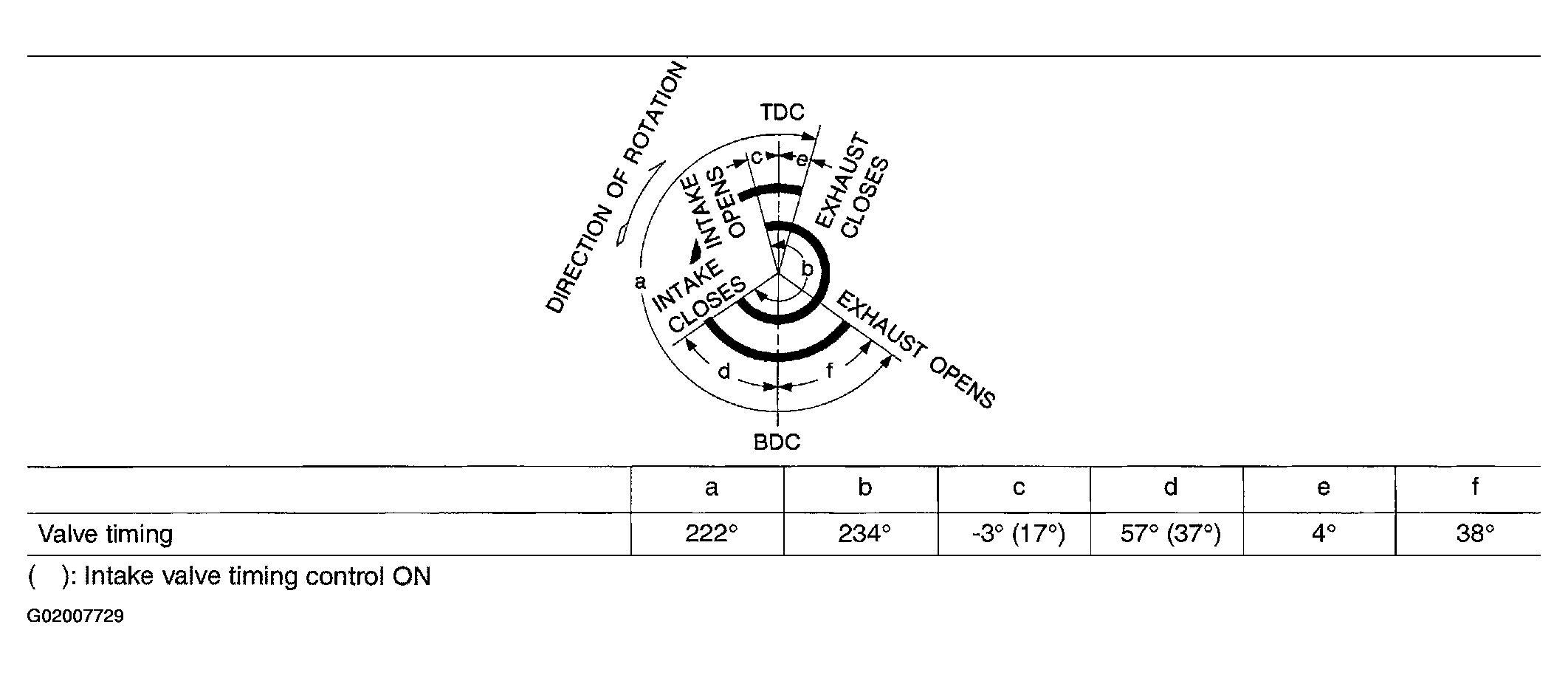

Fig 1: Valve Timing Table
G02007729Courtesy of NISSAN MOTOR CO., U.S.A.
