Camshaft And Camshaft Bearing

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

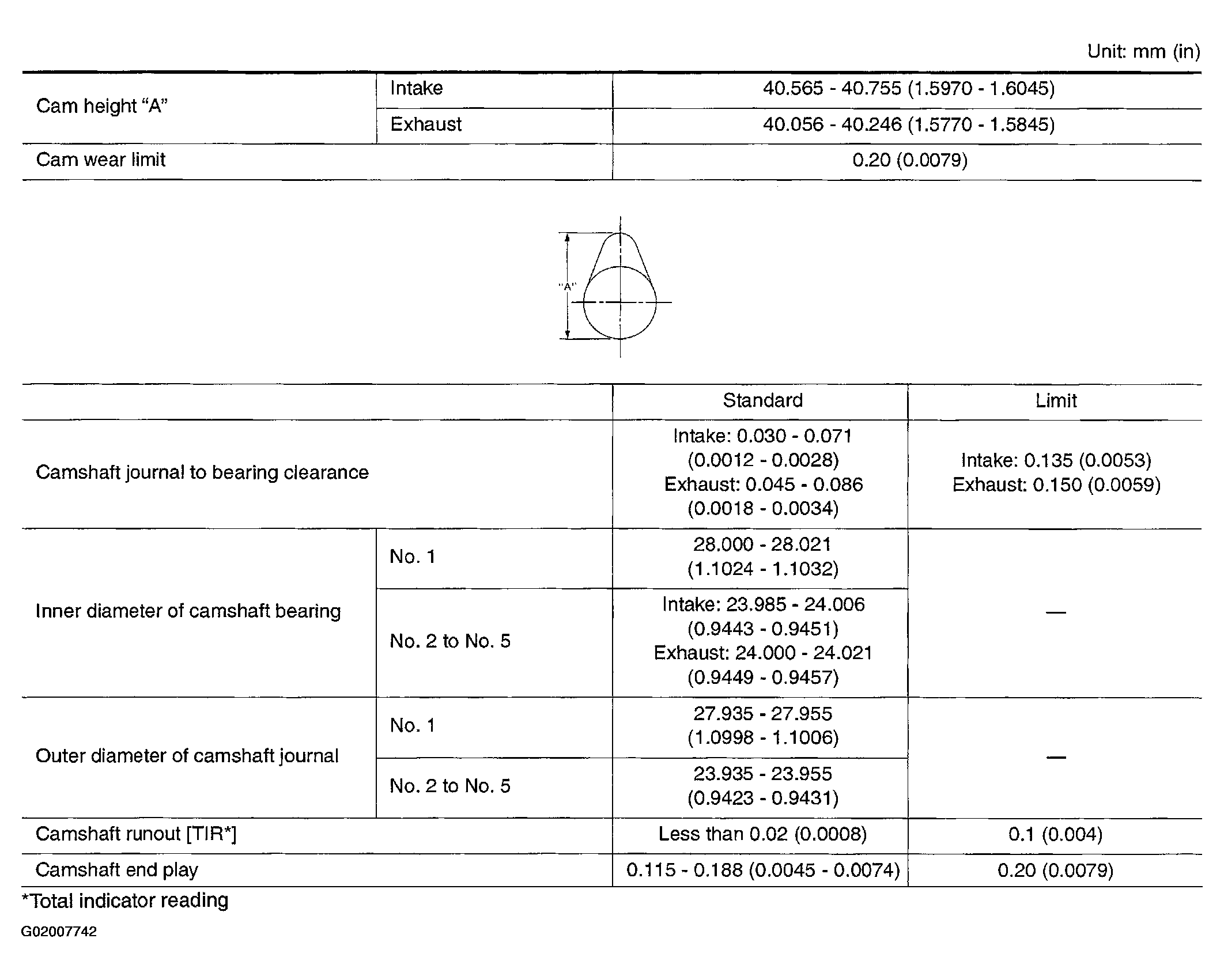

Fig 1: Camshaft & Camshaft Bearing Specification Table
G02007742Courtesy of NISSAN MOTOR CO., U.S.A.
