Available Shims

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

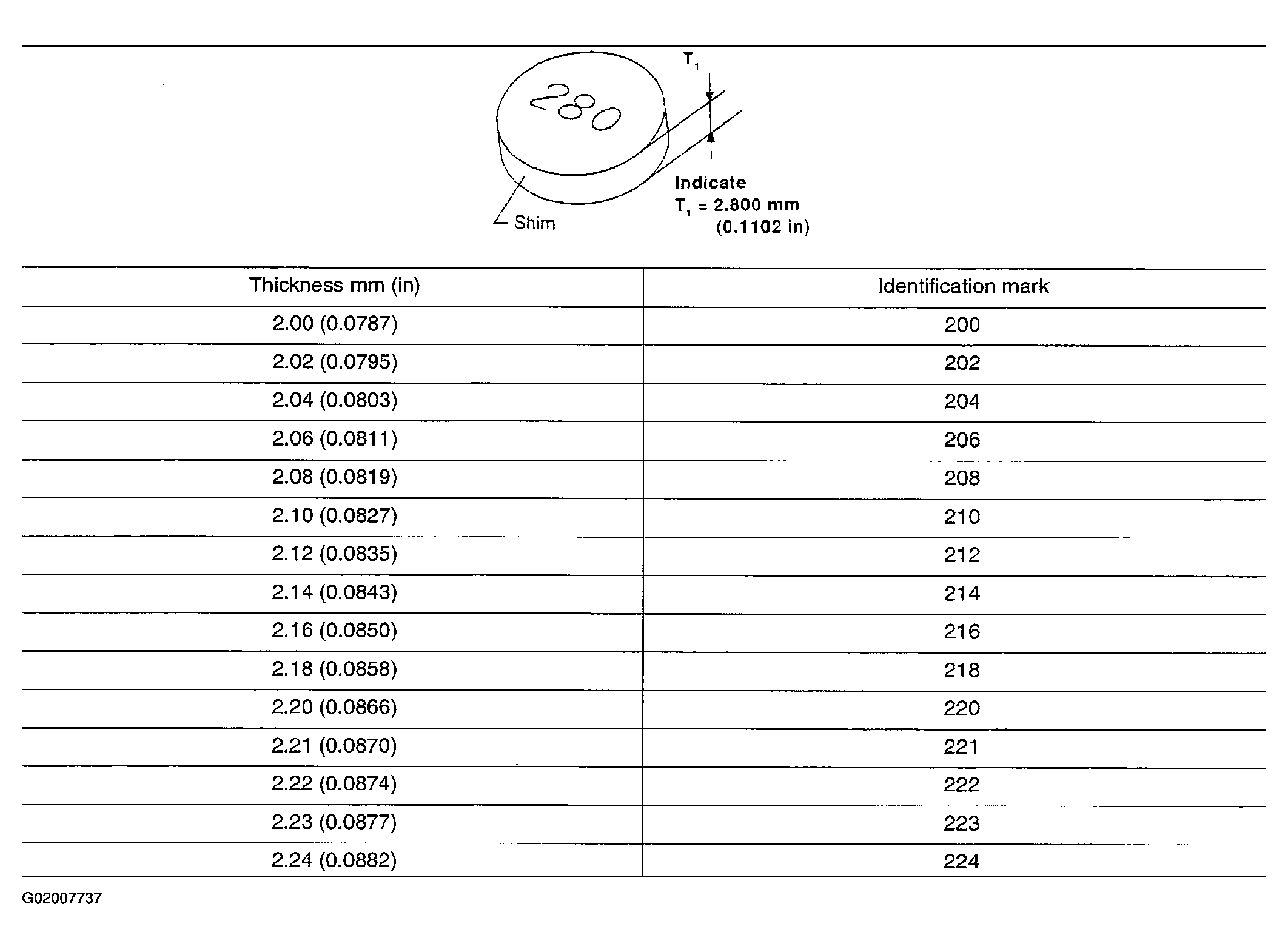

Fig 1: Shims Specifications Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

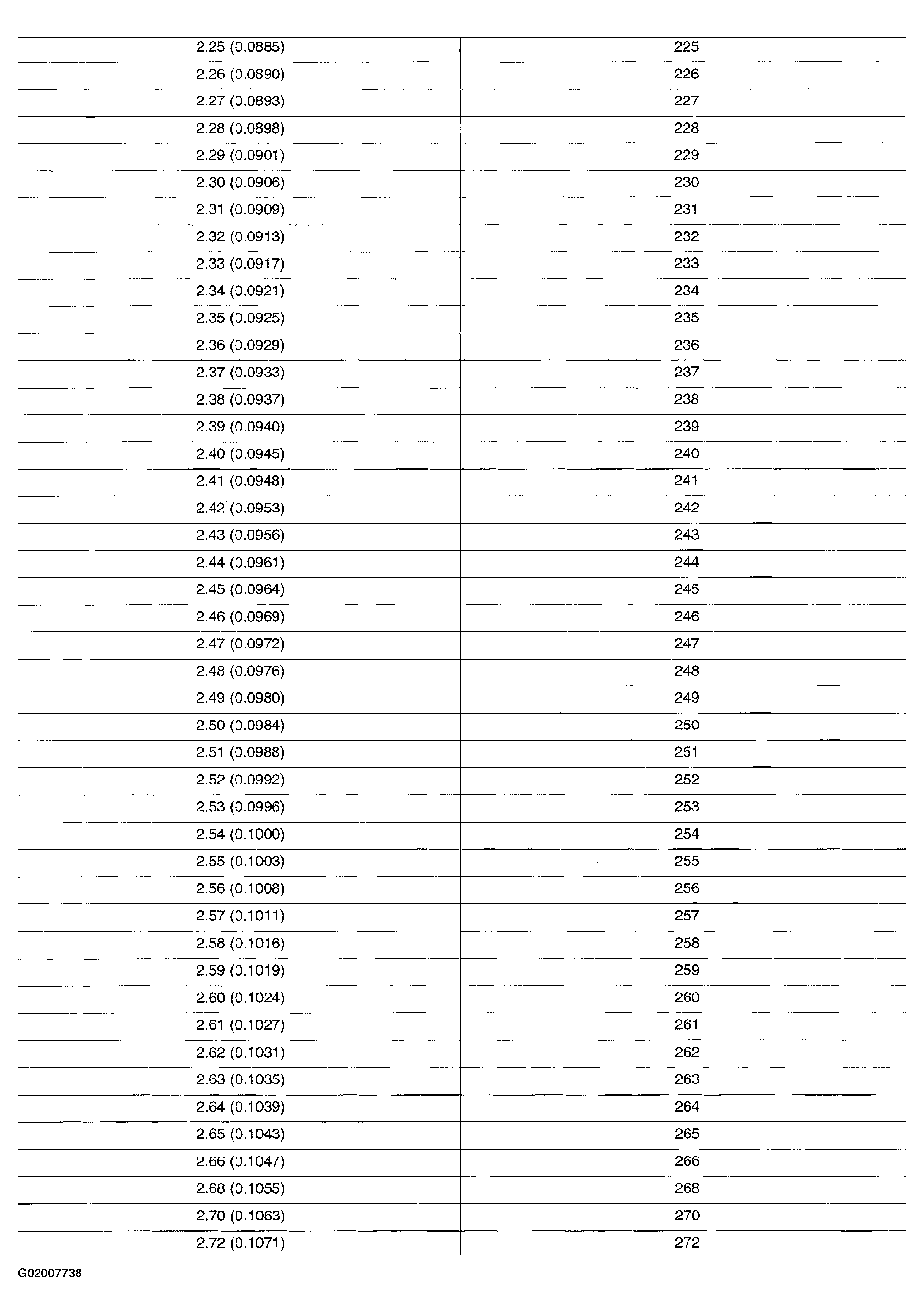

Fig 2: Shims Specifications Table (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

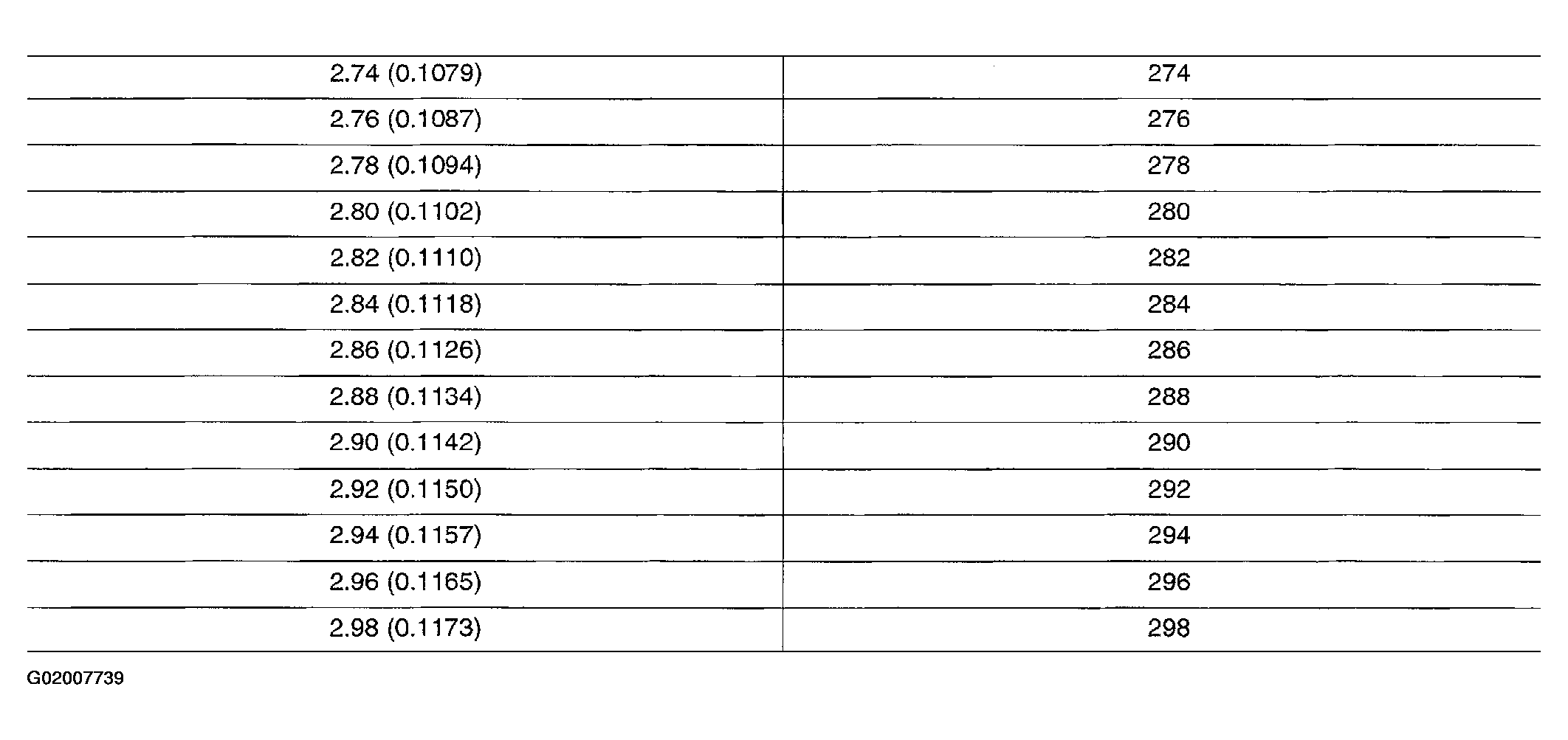

Fig 3: Shims Specifications Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
