QG18DE (Except CALIF. Ca Model)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

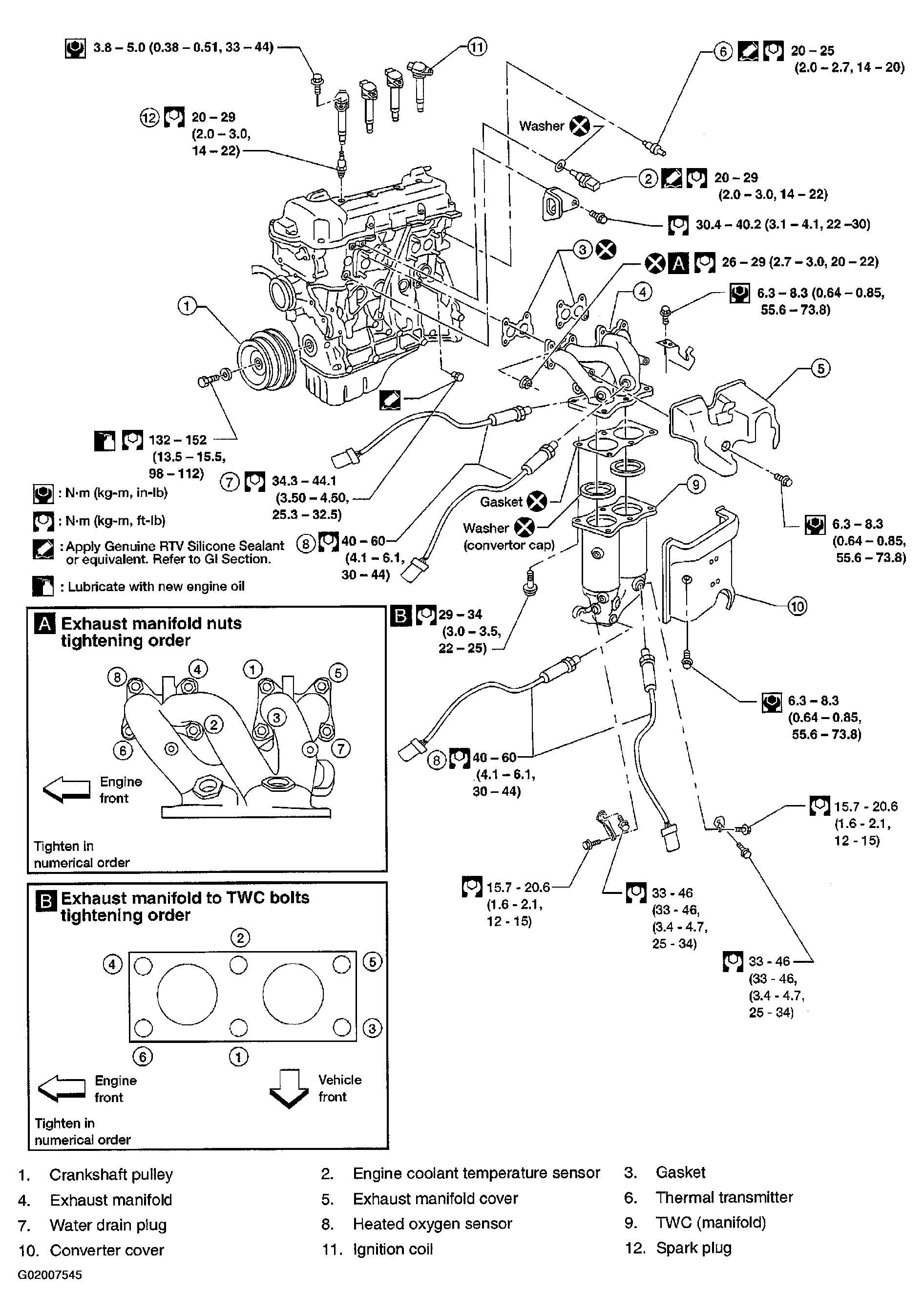

Fig 1: Identifying Emission Related Components (Except CALIF. CA Model)

Courtesy of NISSAN MOTOR CO., U.S.A.
