Rear Oil Seal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. Refer to REMOVAL AND INSTALLATION - RS5F70A, REMOVAL AND INSTALLATION - (RS5F51A), REMOVAL AND INSTALLATION - (RS6F51H), REMOVAL AND INSTALLATION - (RE4F03B) or REMOVAL AND INSTALLATION - (RE4F04B).
  2. Remove flywheel (MT) or drive plate (AT).
  3. Remove rear oil seal.
    • Be careful not to scratch rear oil seal retainer.

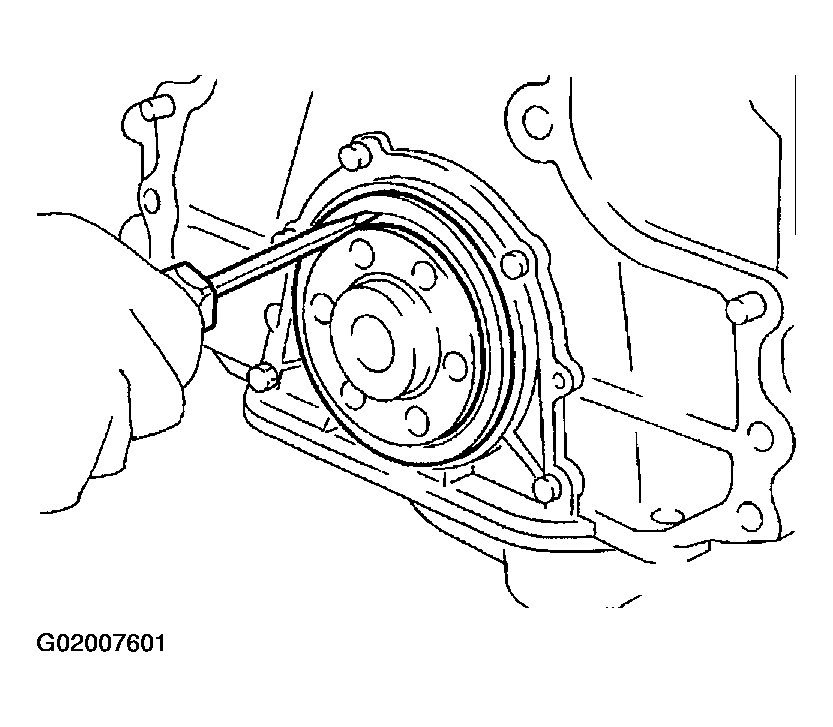

      Fig 1: Removing Rear Oil Seal
      G02007601Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply new engine oil to new oil seal and install it using a suitable tool.
    • Install new oil seal in the direction shown in Fig 2.

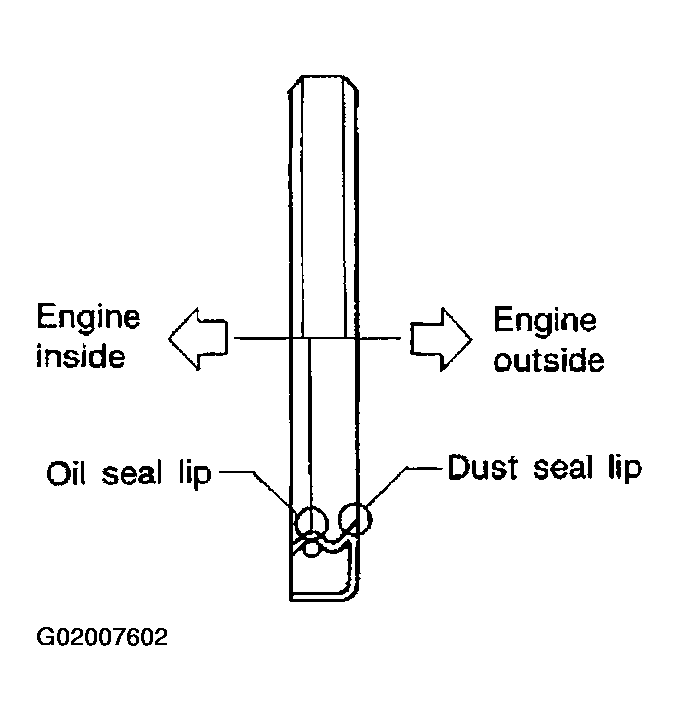

      Fig 2: Oil Seal Installation Identification
      G02007602Courtesy of NISSAN MOTOR CO., U.S.A.

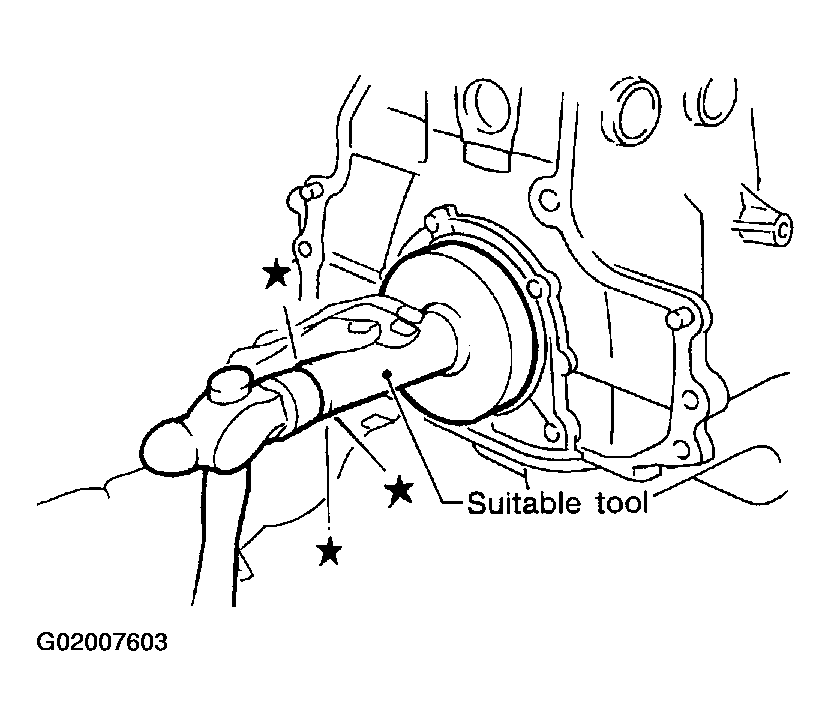

      Fig 3: Installing Oil Seal
      G02007603Courtesy of NISSAN MOTOR CO., U.S.A.
