Removal and Installation: Notes

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Apply new engine oil when installing the parts that specified to do so in Fig 1.
  • Do not remove or disassembly parts unless instructed.

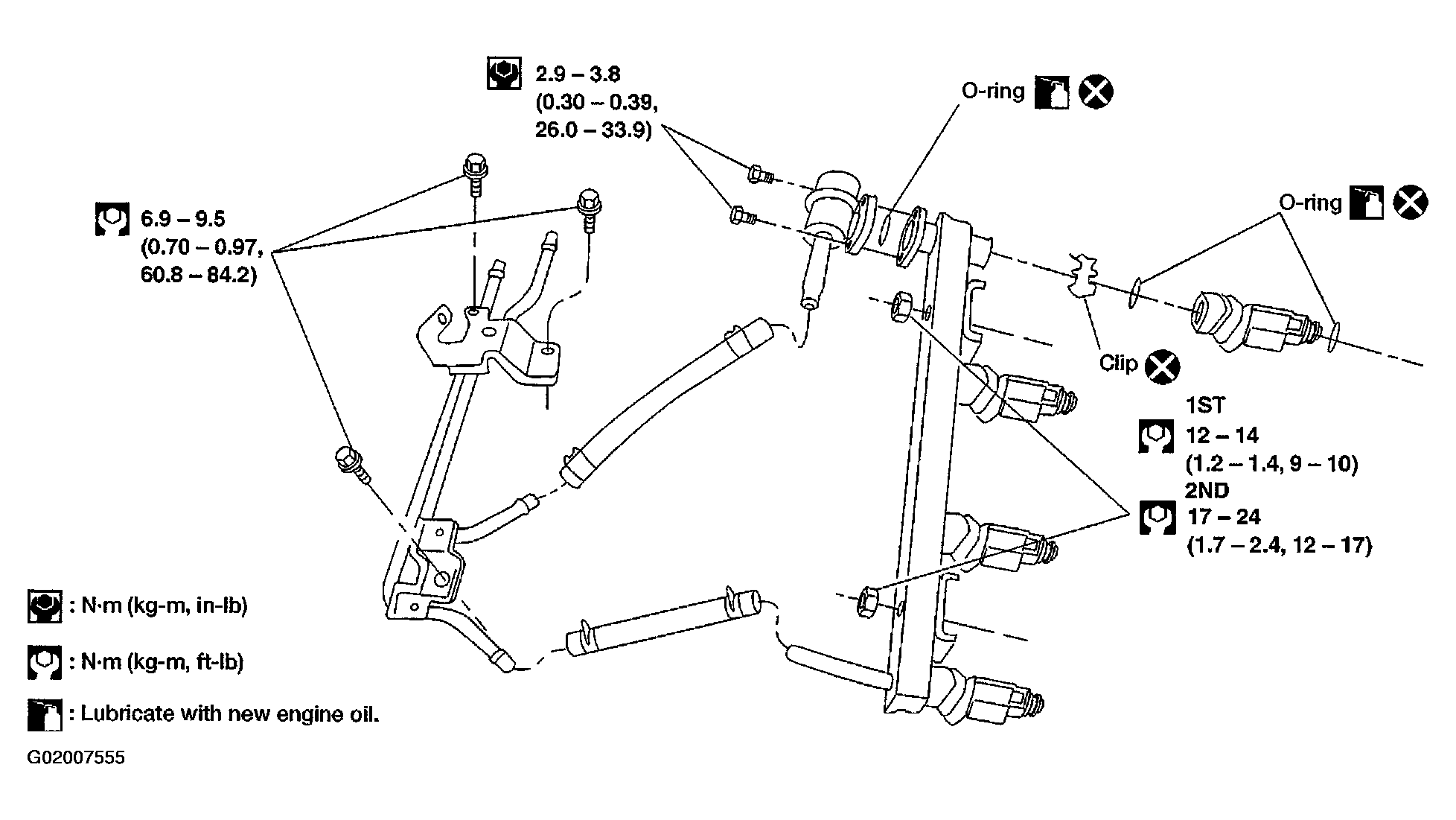

  • Fig 1: Identifying Fuel Injector & Fuel Tube Components
    G02007555Courtesy of NISSAN MOTOR CO., U.S.A.
