Crankshaft, Main & Connecting Rod Bearings
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CRANKSHAFT, MAIN & CONNECTING ROD BEARINGS
| Application | In. (mm) | ||||
|---|---|---|---|---|---|
| Crankshaft | |||||
| End Play | |||||
| Standard | .0024-.0087 (.060-.220) | ||||
| Service Limit | .012 (.30) | ||||

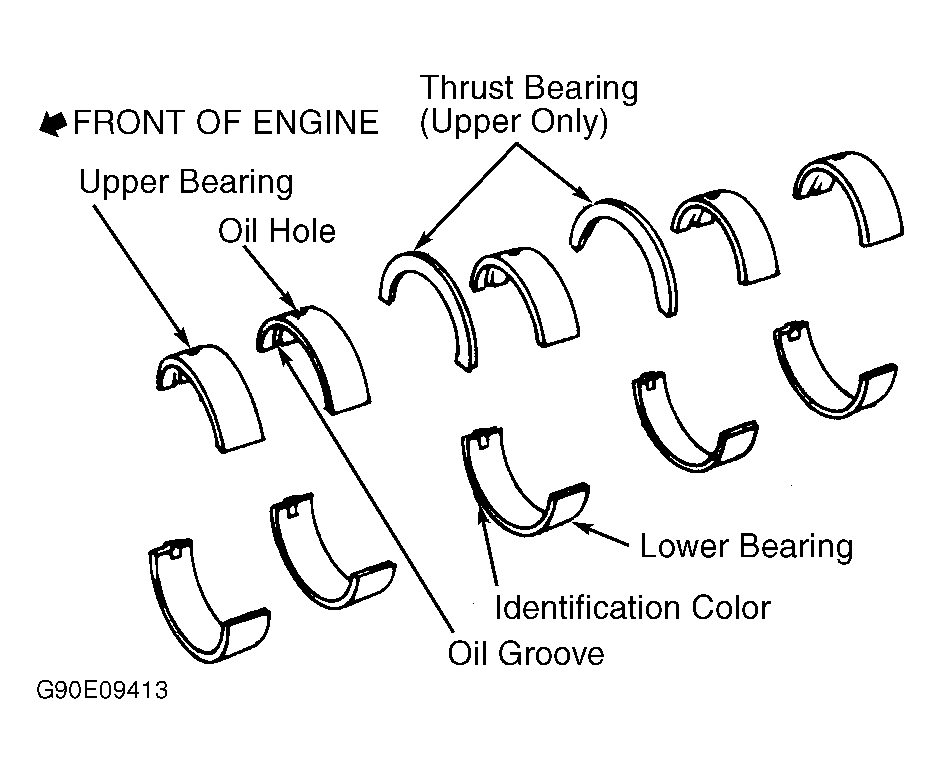

| Main Bearings | |||||
| Journal Diameter | |||||

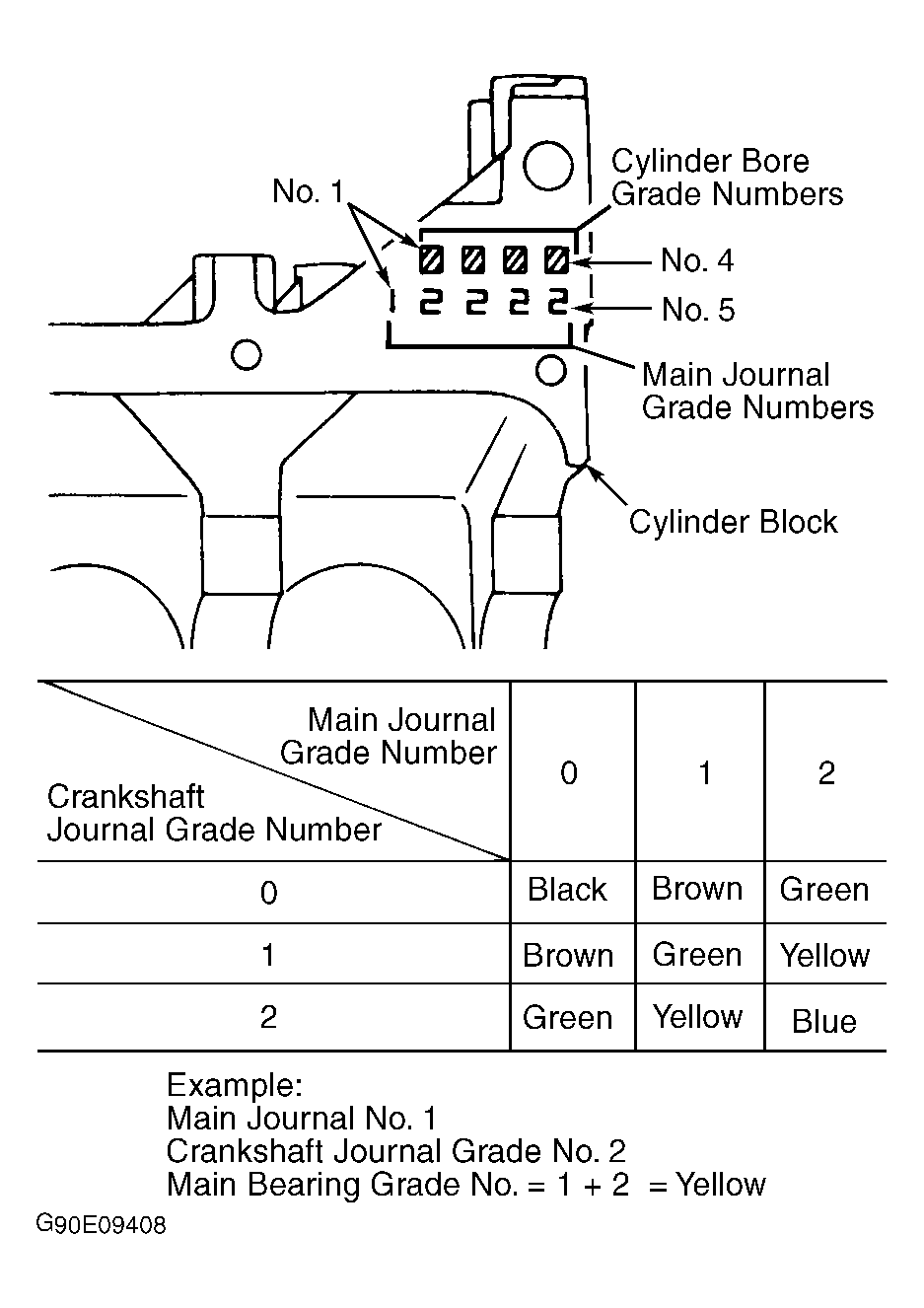

| Grade 0 (1) | 1.9668-1.9671 (49.957-49.964) | ||||
| Grade 1 (1) | 1.9665-1.9668 (49.948-49.957) | ||||
| Grade 2 (1) | 1.9661-1.9665 (49.940-49.948) | ||||
| Journal Out-Of-Round | |||||
| Standard | Less Than .0001 (.003) | ||||
| Service Limit | Less Than .0002 (.005) | ||||
| Journal Taper | |||||
| Standard | Less Than .0002 (.004) | ||||
| Service Limit | Less Than .0002 (.005) | ||||
| Journal Runout | |||||
| Standard | Less Than .0016 (.040) | ||||
| Service Limit | Less Than .0020 (.050) | ||||
| Oil Clearance | |||||
| Standard | .0007-.0017 (.018-.042) | ||||
| Service Limit | .004 (.10 mm) | ||||
| Connecting Rod Bearings | |||||
| Journal Diameter | |||||

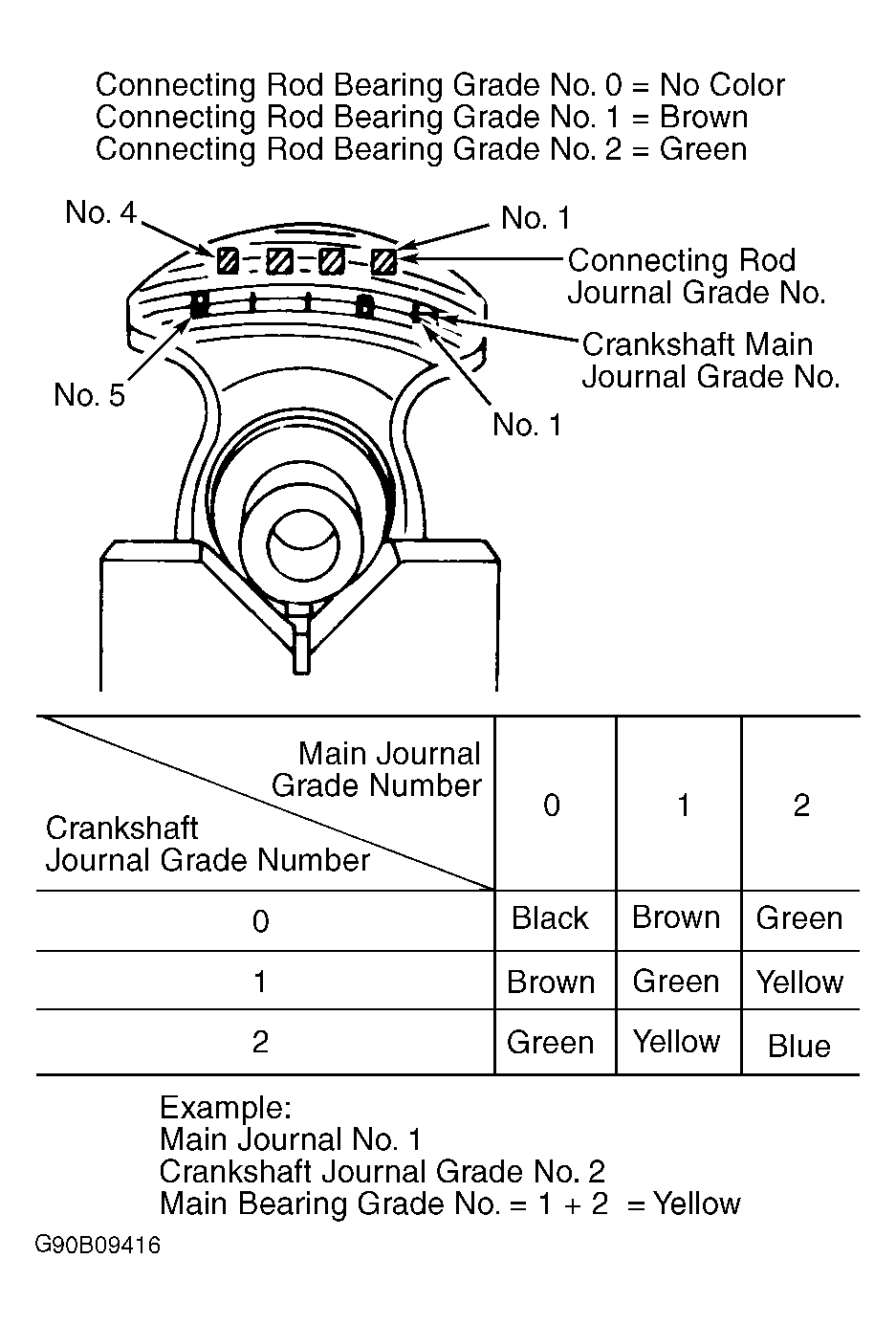

| Grade 0 (1) | 1.5735-1.5738 (39.968-39.974) | ||||
| Grade 1 (1) | 1.5733-1.5735 (39.962-39.968) | ||||
| Grade 2 (1) | 1.5731-1.5733 (39.956-39.962) | ||||
| Journal Out-Of-Round | |||||
| Standard | Less Than .0001 (.003) | ||||
| Service Limit | Less Than .0002 (.005) | ||||
| Journal Taper | |||||
| Standard | Less Than .0002 (.004) | ||||
| Service Limit | Less Than .0002 (.005) | ||||
| Journal Runout | |||||
| Standard | Less Than .0016 (.040) | ||||
| Service Limit | Less Than .0020 (.050) | ||||
| Oil Clearance | |||||
| Standard | .0006-.0015 (.015-.039) | ||||
| Service Limit | .004 (.10 mm) | ||||
|
|||||
