Valve Lifter And Valve Shim

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check contact and sliding surfaces for wear or scratches.

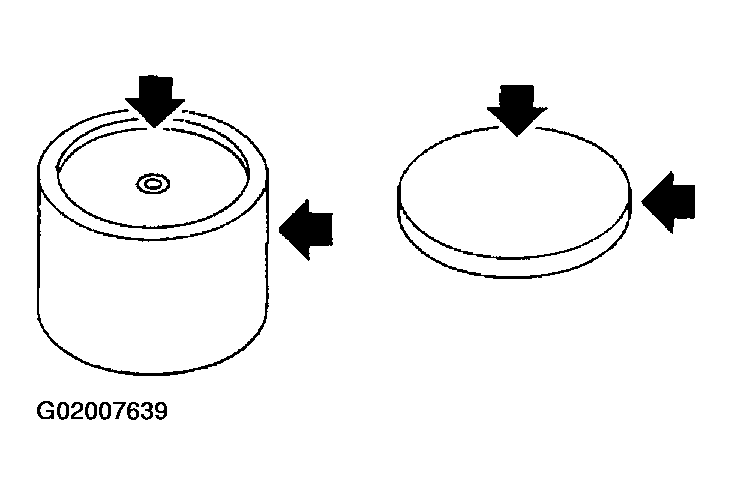

Fig 1: Checking Contact & Sliding Surfaces
Courtesy of NISSAN MOTOR CO., U.S.A.
Check diameter of valve lifter and valve lifter guide bore.

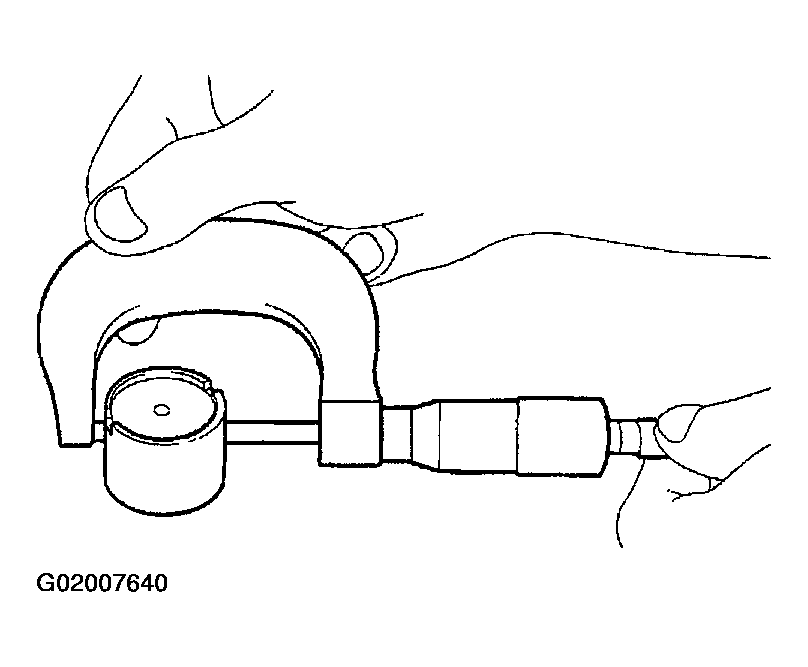

Fig 2: Checking Diameter Of Valve Lifter
Courtesy of NISSAN MOTOR CO., U.S.A.

Valve lifter outside: 29.960 - 29.975 mm

diameter (1.1795 -1.1801 in)

Lifter guide inside diameter: 30.000 - 30.021 mm (1.1811 -1.1819 in)

Clearance between valve: 0.025 - 0.065 mm

lifter and valve lifter guide (0.0010 - 0.0026 in)

If it exceeds the limit, replace valve lifter or cylinder head which exceeds the standard diameter tolerance.

Fig 3: Checking Diameter Of Valve Lifter Guide Bore
Courtesy of NISSAN MOTOR CO., U.S.A.
