Valve Guide Replacement

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

To remove valve guide, heat cylinder head to 110-130°C (230-266°F).

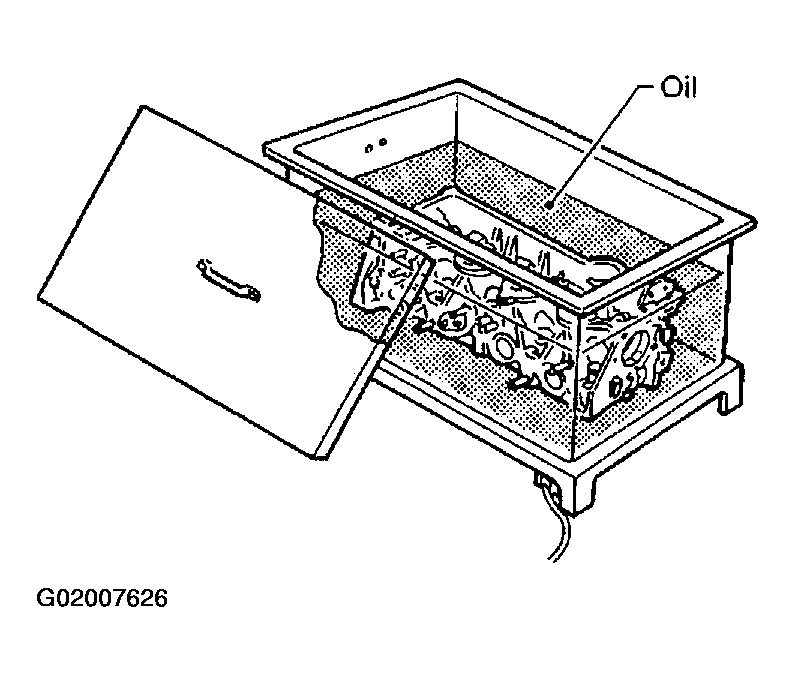

Fig 1: Heating Cylinder Head In Oil
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US ton, 2.0 Imp ton) pressure] or hammer and suitable tool.

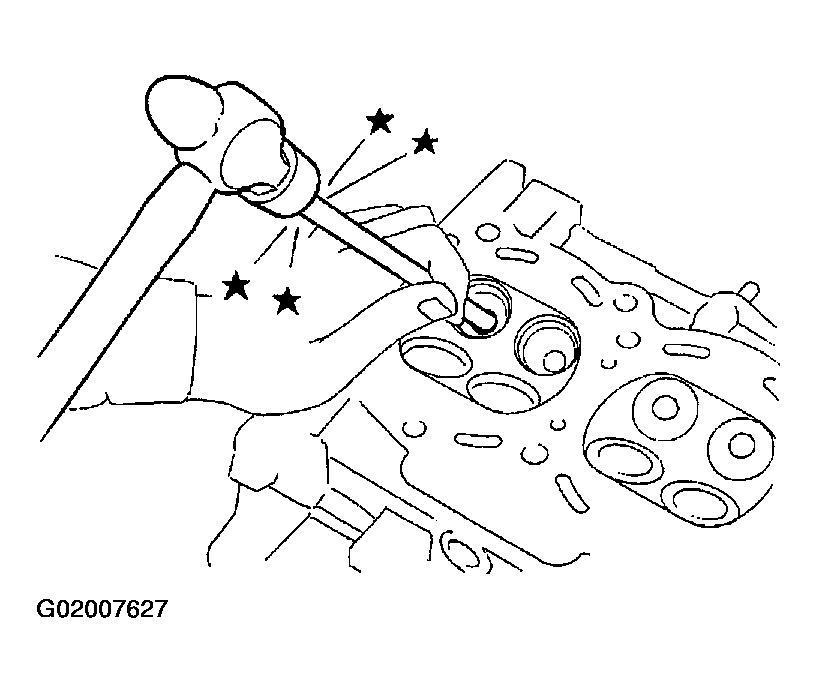

Fig 2: Driving Out Valve Guide With Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.
Ream cylinder head valve guide hole.

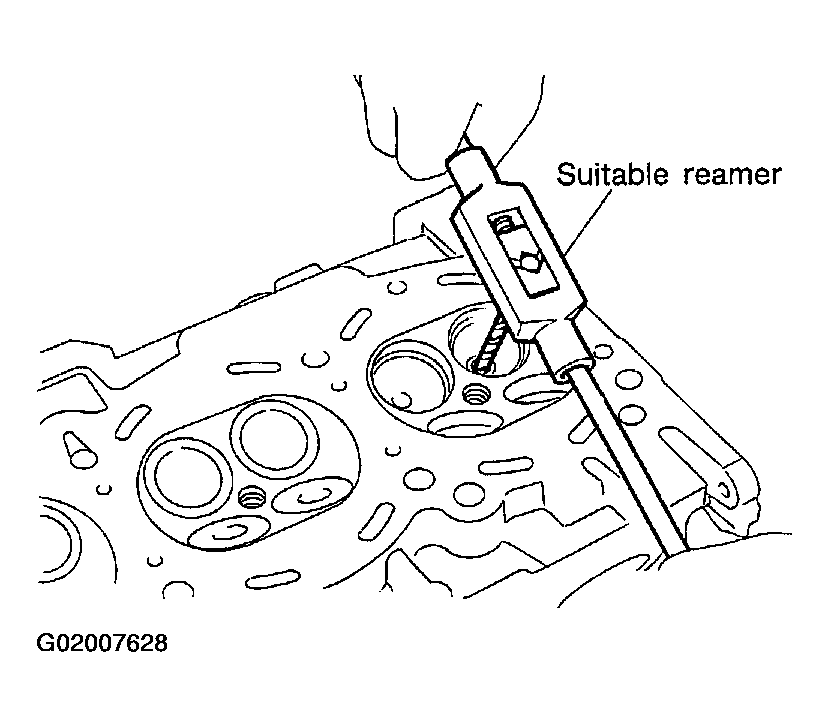

Fig 3: Reaming Cylinder Head Valve Guide Hole
Courtesy of NISSAN MOTOR CO., U.S.A.

Valve guide hole diameter (for service parts)

Intake & Exhaust: 9.685 - 9.696 mm (0.3813-0.3817 in)
Heat cylinder head to 110-130°C (230-266°F) and press service valve guide into cylinder head.
Projection "L": 11.5 -11.7 mm (0.453 - 0.461 in)

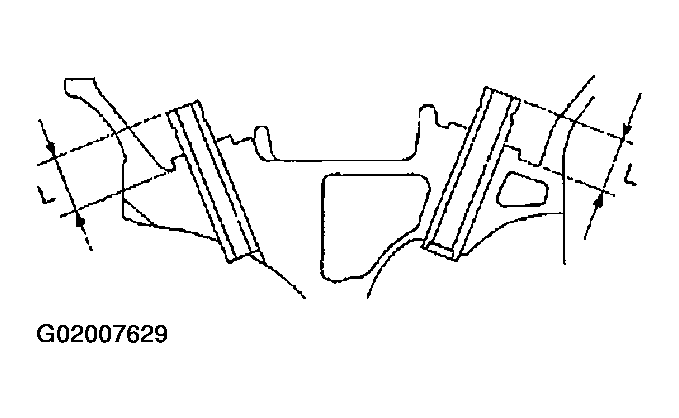

Fig 4: Measuring Projection L
Courtesy of NISSAN MOTOR CO., U.S.A.
Ream valve guide.
Finished size:

Intake & Exhaust: 5.500 - 5.515 mm (0.2165-0.2171 in)

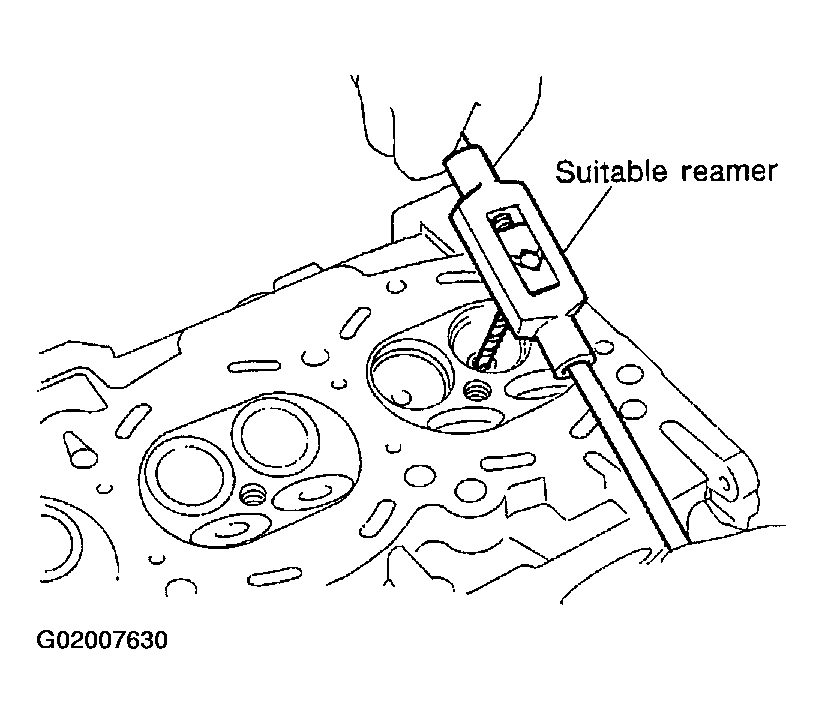

Fig 5: Reaming Valve Guide
Courtesy of NISSAN MOTOR CO., U.S.A.
