Camshaft RUNOUT
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

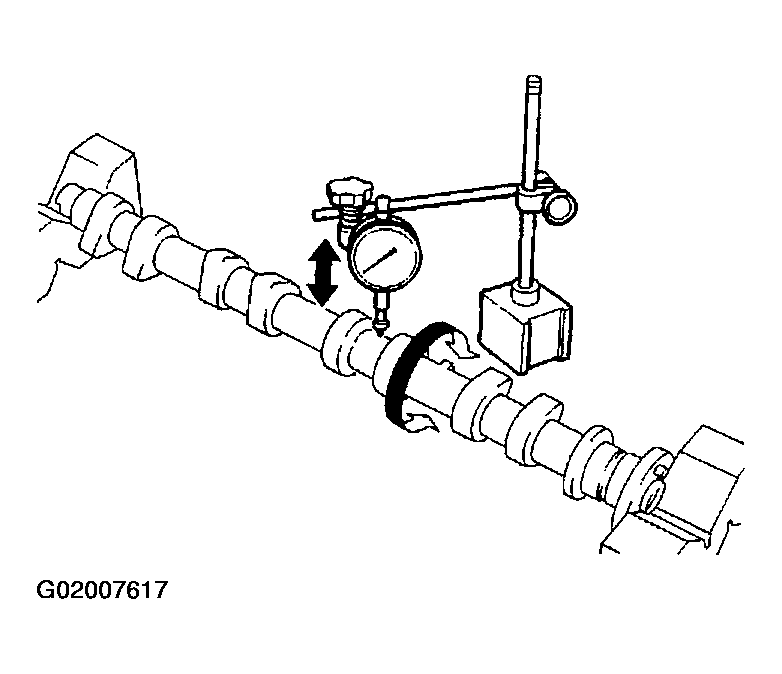

- Measure camshaft runout at the center journal.
Runout (Total indicator reading)
Standard: Less than 0.02 mm (0.0008 in)
Limit: 0.1 mm (0.004 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
- If it exceeds the limit, replace camshaft.
