Camshaft Cam Height

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Measure camshaft cam height.

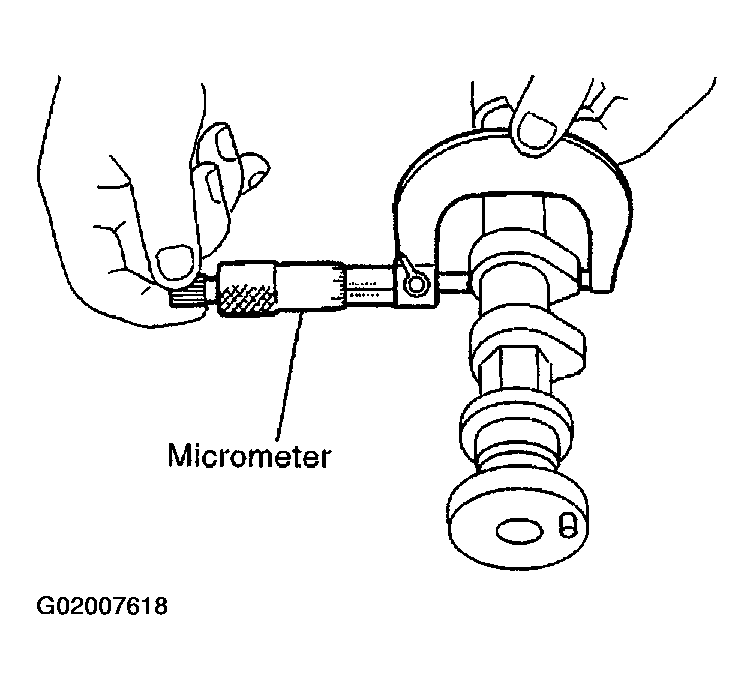

Fig 1: Measuring Camshaft Cam Lobe Height
Courtesy of NISSAN MOTOR CO., U.S.A.

Standard cam height:

Intake: 40.565 - 40.755 mm (1.5970 -1.6045 in)

Exhaust: 40.056 - 40.246 mm (1.5770-1.5845 in)

Cam wear limit: 0.20 mm (0.0079 in)
If wear is beyond the limit, replace camshaft.
