Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove valve components with Tool.

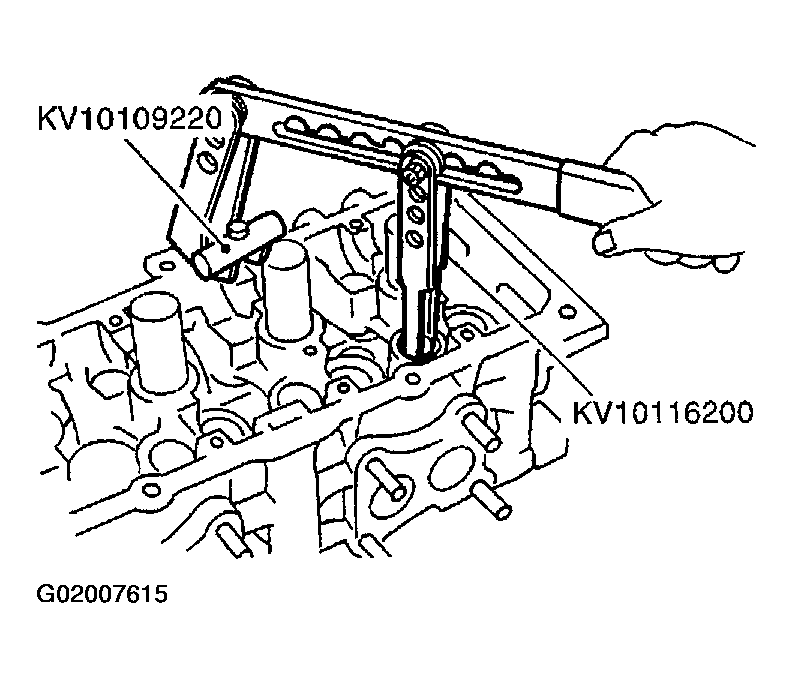

    Fig 1: Removing Valve Components
    G02007615Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove valve oil seal with a suitable tool.
