Cylinder Head: Components

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

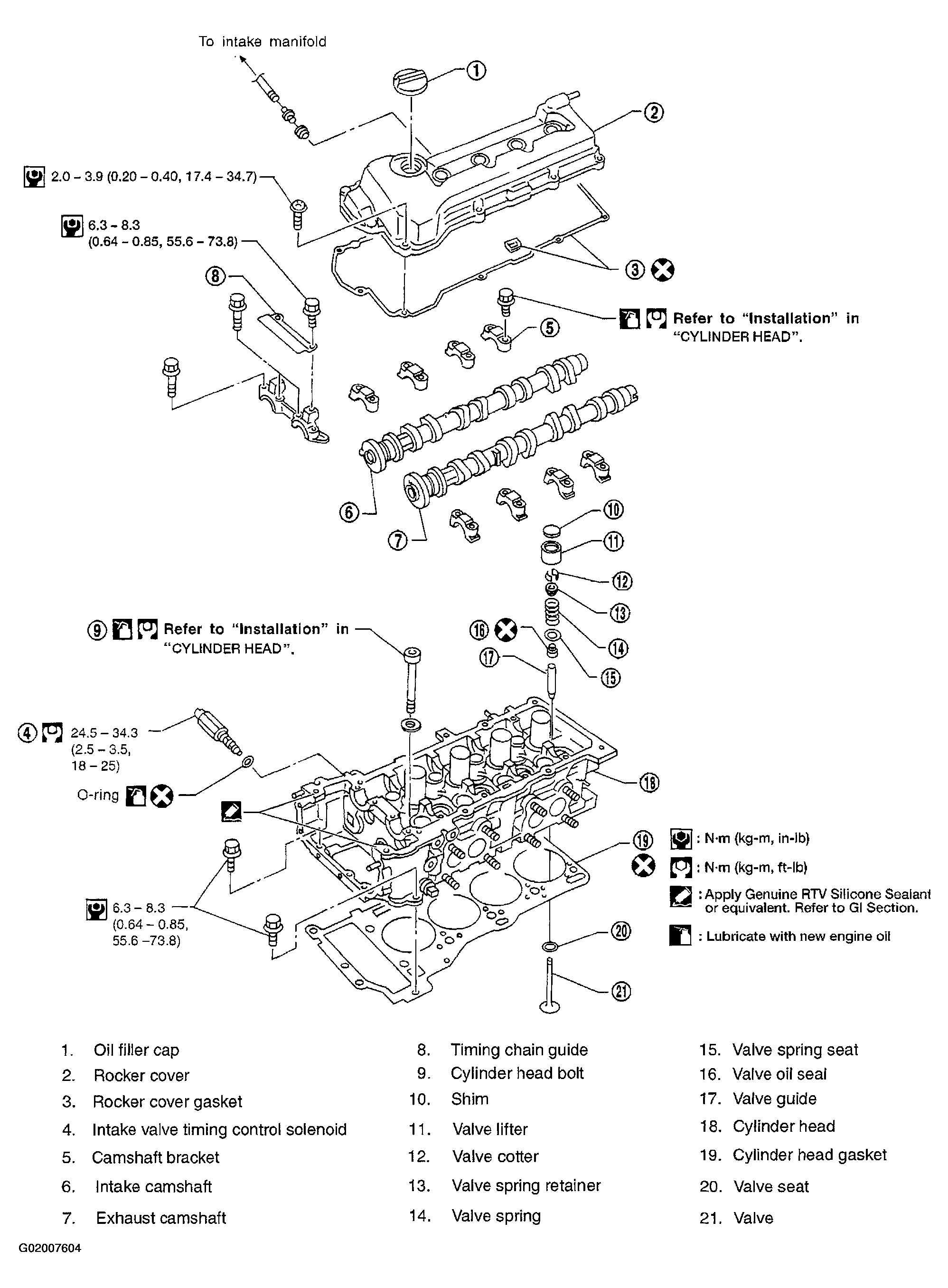

Fig 1: Identifying Cylinder Head Components
G02007604Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • When installing camshaft and oil seal, lubricate contacting surfaces with new engine oil.
  • When tightening cylinder head bolts, camshaft sprocket bolts and camshaft bracket bolts, lubricate bolt threads and seat surfaces with new engine oil.
  • Attach tags to valve lifters so as not to mix them up.
