Flywheel RUNOUT

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Runout (Total indicator reading)

Flywheel (M/T models): Less than 0.15 mm (0.0059 in)

CAUTION:
  • Do not allow any magnetic materials to contact the ring gear teeth and rear plate.
  • Do not resurface flywheel. Replace as necessary.

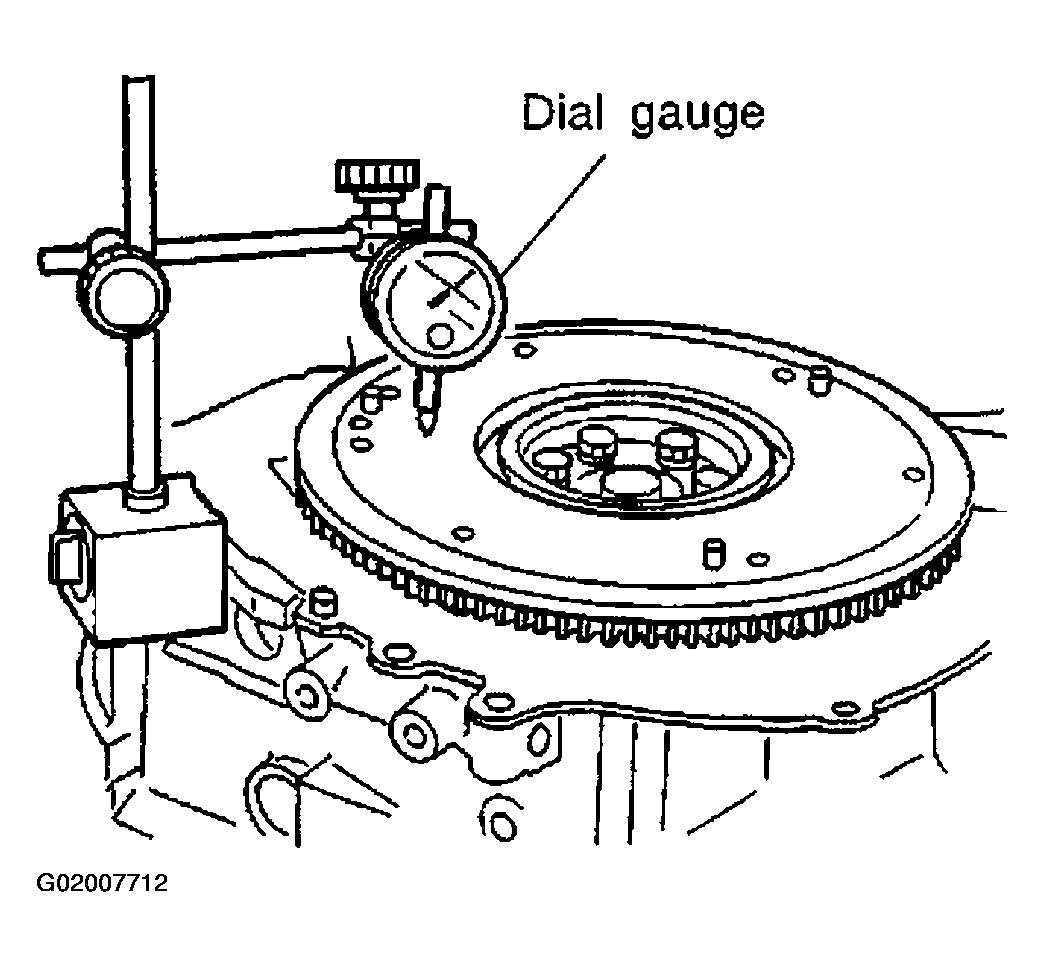

    Fig 1: Checking Fly Wheel Runout
    G02007712Courtesy of NISSAN MOTOR CO., U.S.A.
