Cylinder Block: Inspection: Crankshaft

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check crankshaft main and pin journals for score, wear or cracks.

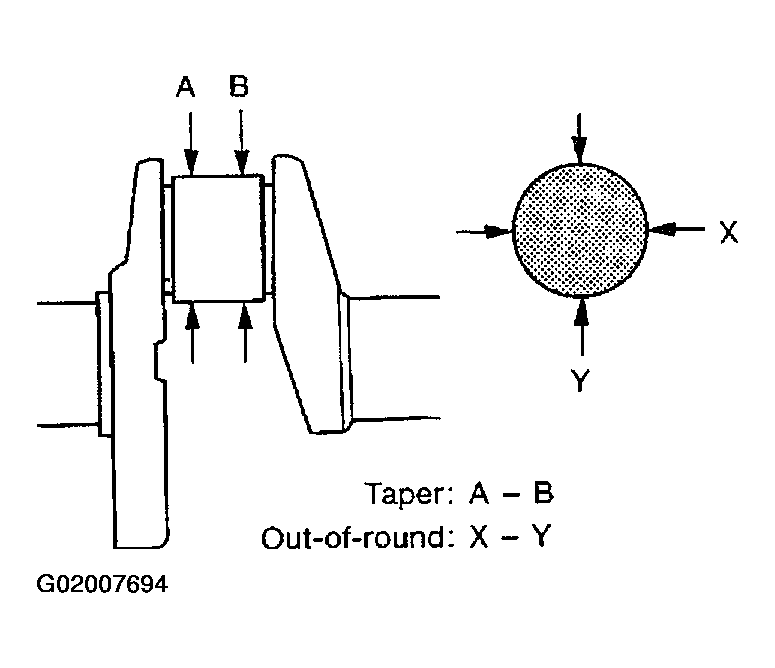

Fig 1: Checking Crankshaft Main & Pin Journals
Courtesy of NISSAN MOTOR CO., U.S.A.
With a micrometer, measure journals for taper and out-of-round.
Out-of-round, Standard (X - Y): Less than 0.003 mm (0.0001 in)

Taper, Standard (A - B): Less than 0.004 mm (0.0002 in)
Measure crankshaft runout.

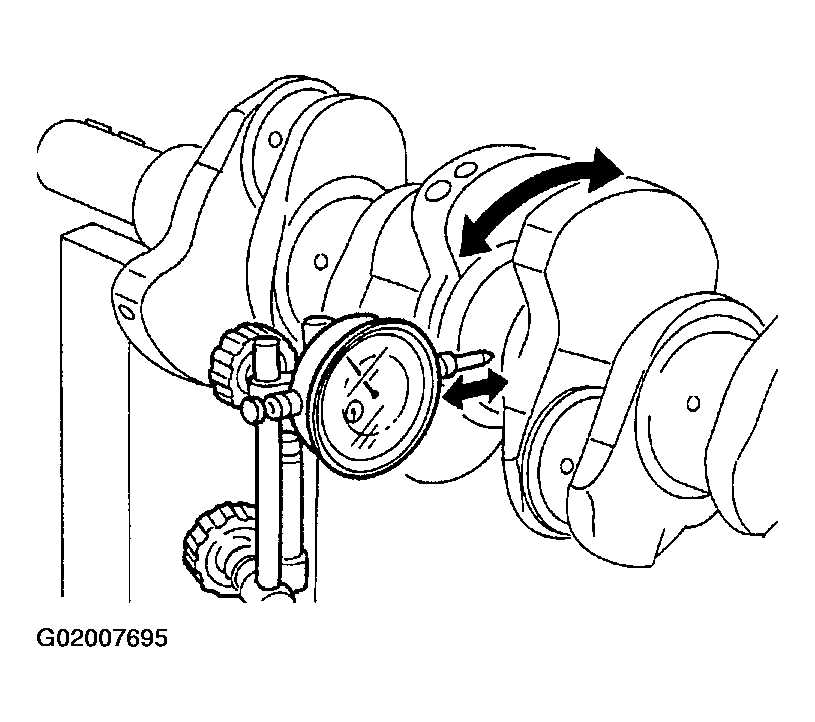

Fig 2: Measuring Crankshaft Runout
Courtesy of NISSAN MOTOR CO., U.S.A.

Runout, Standard (Total indicator reading): Less than 0.04 mm (0.0016 in)
