Connecting Rod Bend And Torsion

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Bend: Limit 0.15 mm (0.0059 in) per 100 mm (3.94 in) length

Torsion: Limit 0.3 mm (0.012 in) per 100 mm (3.94 in) length

Fig 1: Measuring Connecting Rod Bend

Courtesy of NISSAN MOTOR CO., U.S.A.

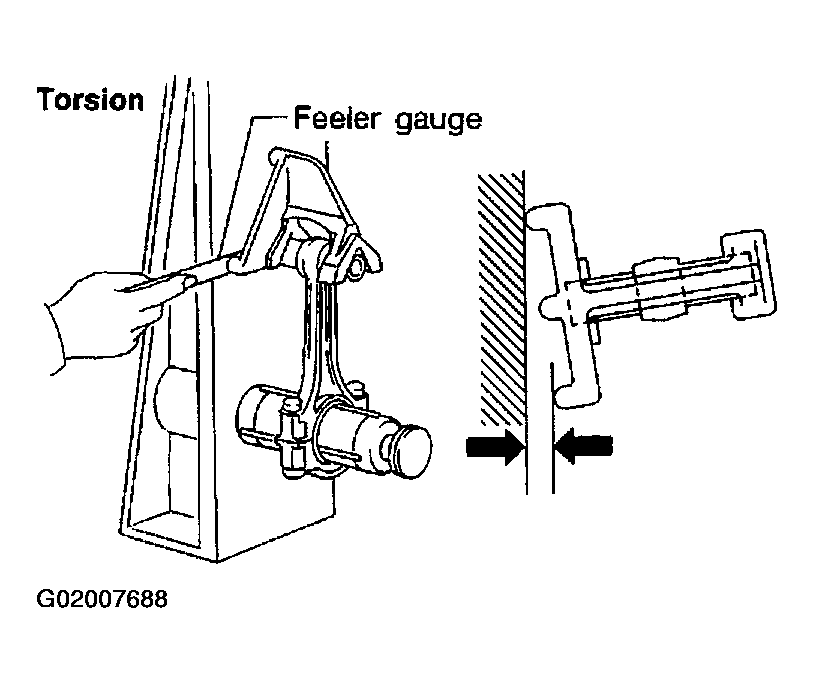

Fig 2: Measuring Connecting Rod Torsion

Courtesy of NISSAN MOTOR CO., U.S.A.

If it exceeds the limit, replace connecting rod assembly.
