Front timing chain case

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

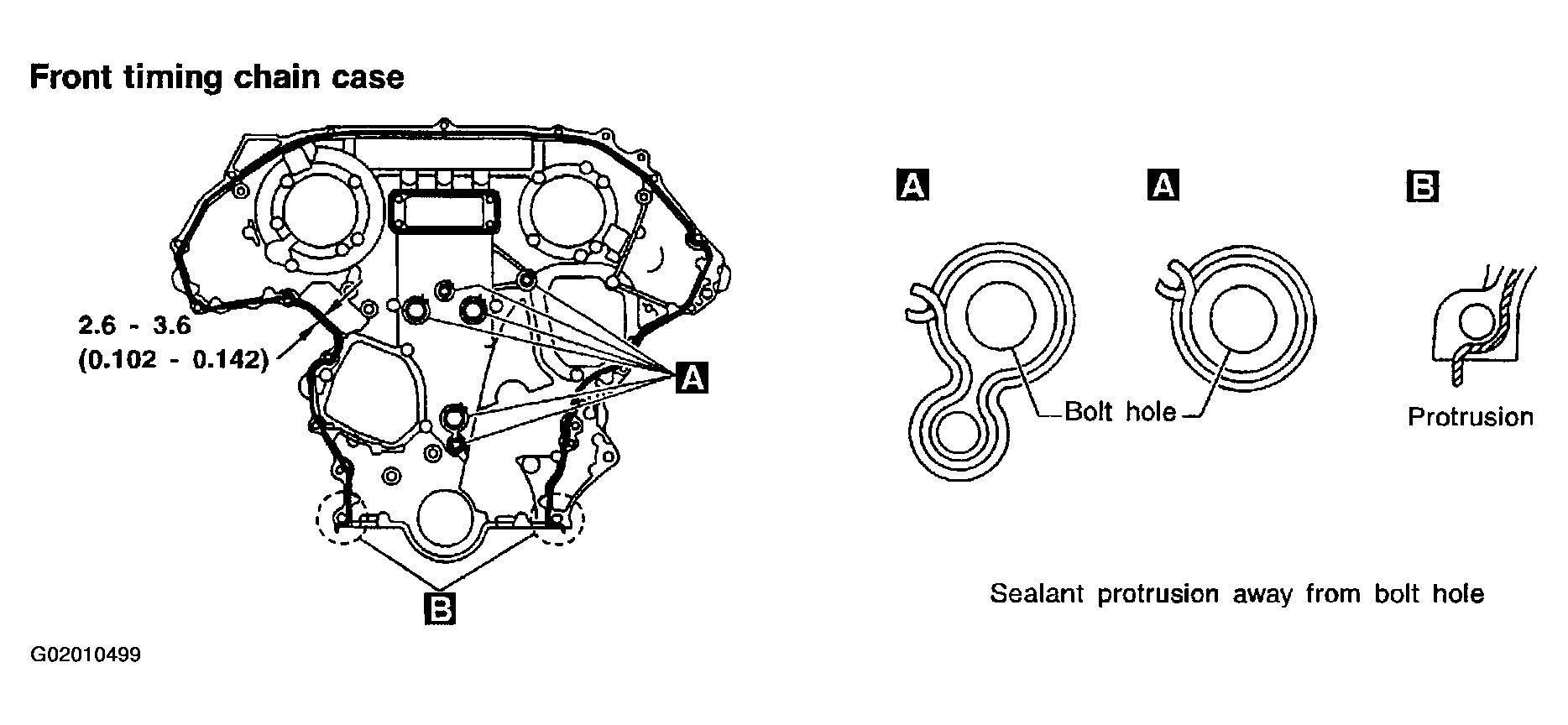

Fig 1: Identifying Sealing Area Front Timing Chain Case
G02010499Courtesy of NISSAN MOTOR CO., U.S.A.
