Camshaft and Camshaft Bearing

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

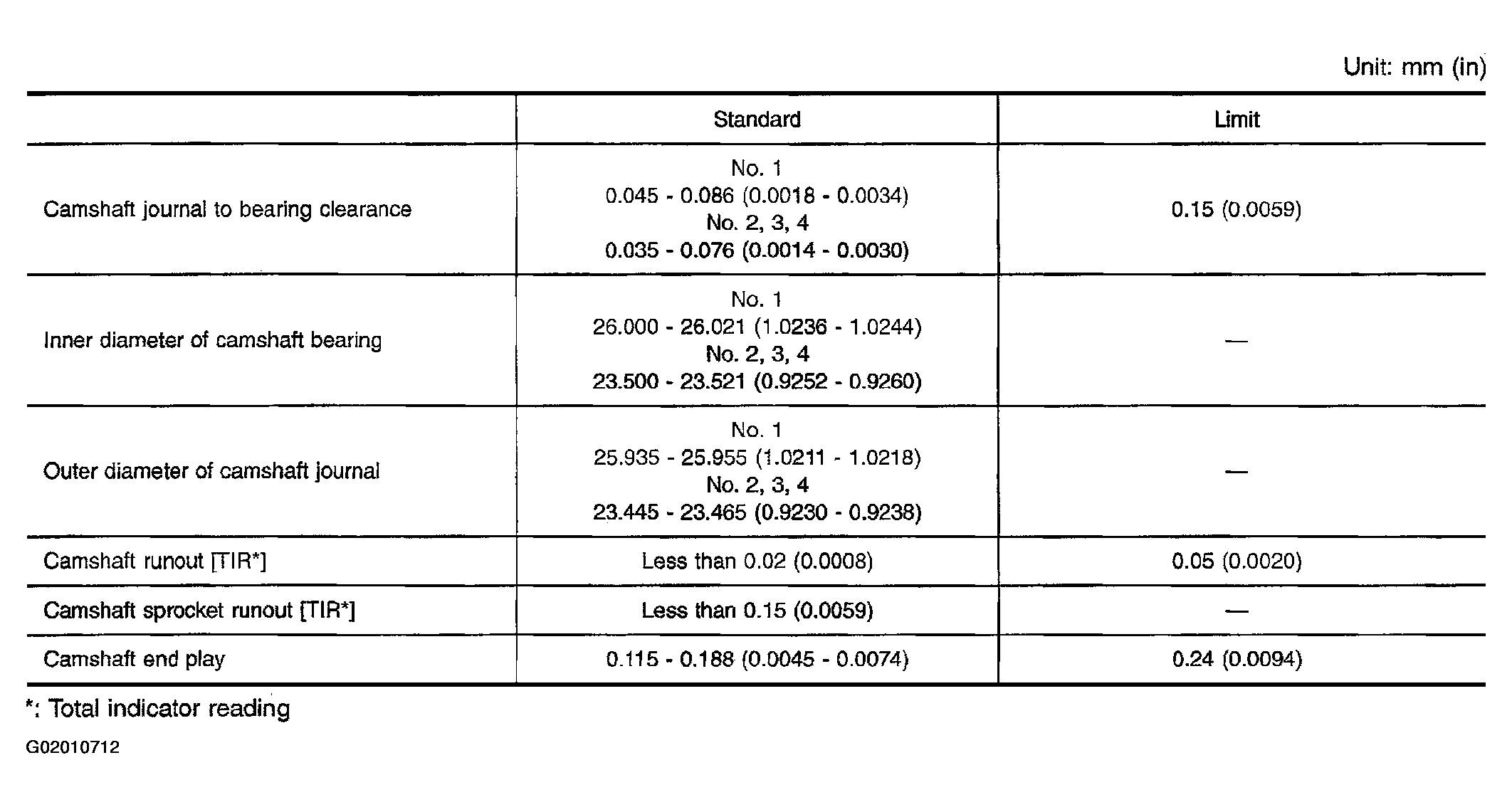

Fig 1: Camshaft And Camshaft Bearing Specification Chart
G02010712Courtesy of NISSAN MOTOR CO., U.S.A.

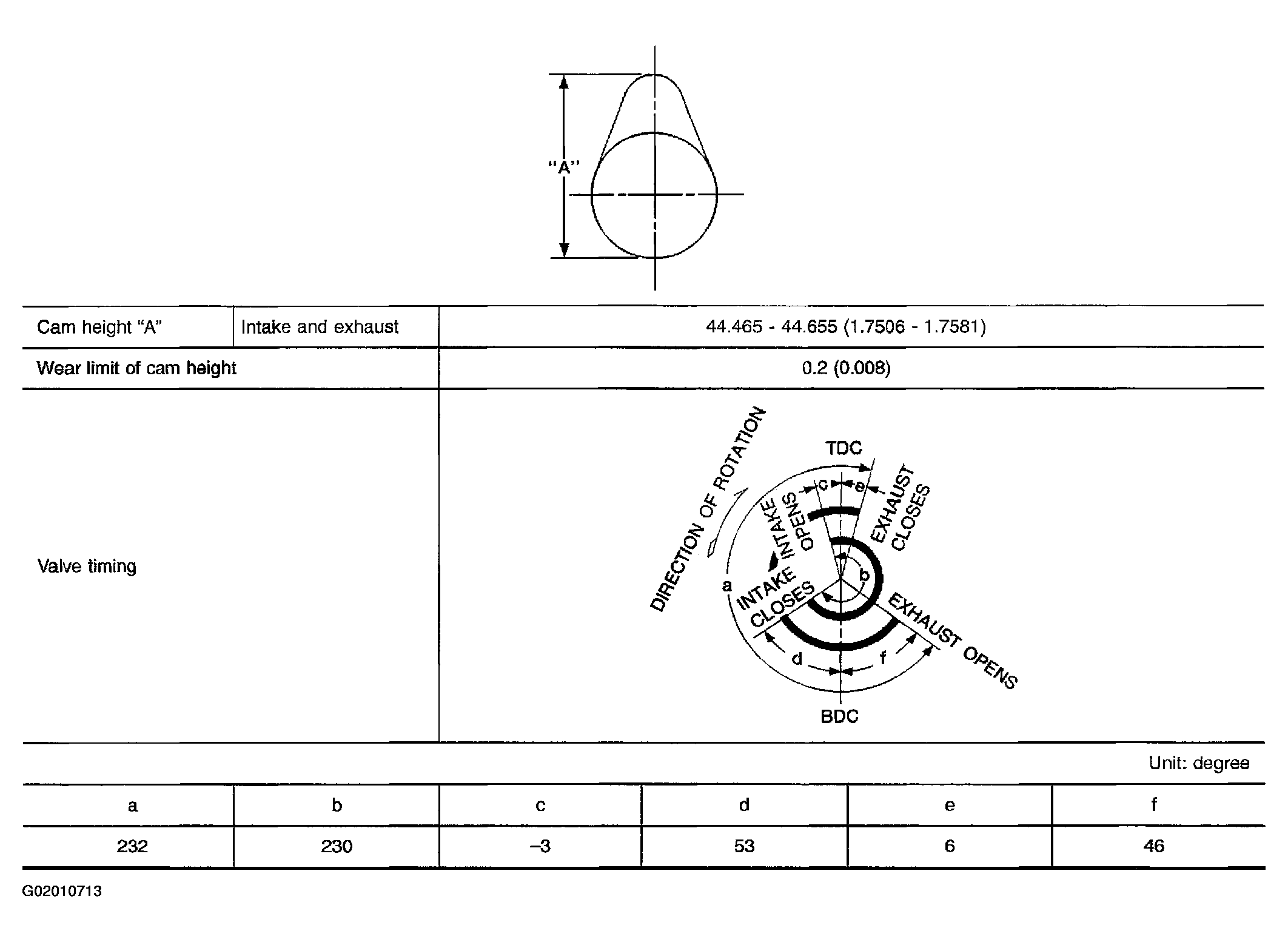

Fig 2: Camshaft And Camshaft Bearing Specification Chart
G02010713Courtesy of NISSAN MOTOR CO., U.S.A.
