Throttle Body
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

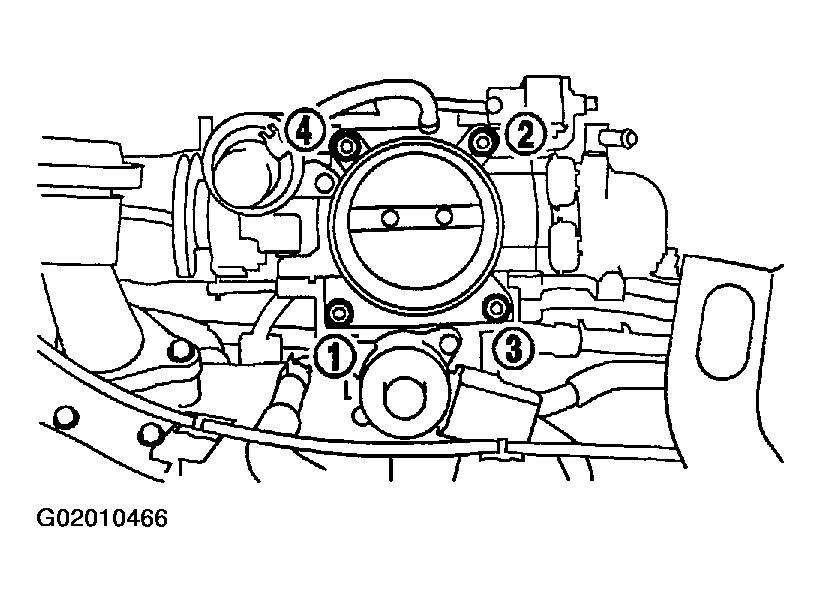

- Tighten in numerical order shown in the figure.
- Tighten all bolts to 8.8 to 10.8 N.m (0.9 to 1.1 kg-m, 79 to 95 in-lb).
- Then tighten all bolts to 18 to 21 N.m (1.8 to 2.2 kg-m, 13 to 15 ft-lb).
Courtesy of NISSAN MOTOR CO., U.S.A.
